Diode Dynamics
Diode Dynamics Stage Series Ditch Light Bracket Kit for 2019-Present Ram
dioDD7594P
A$196.27

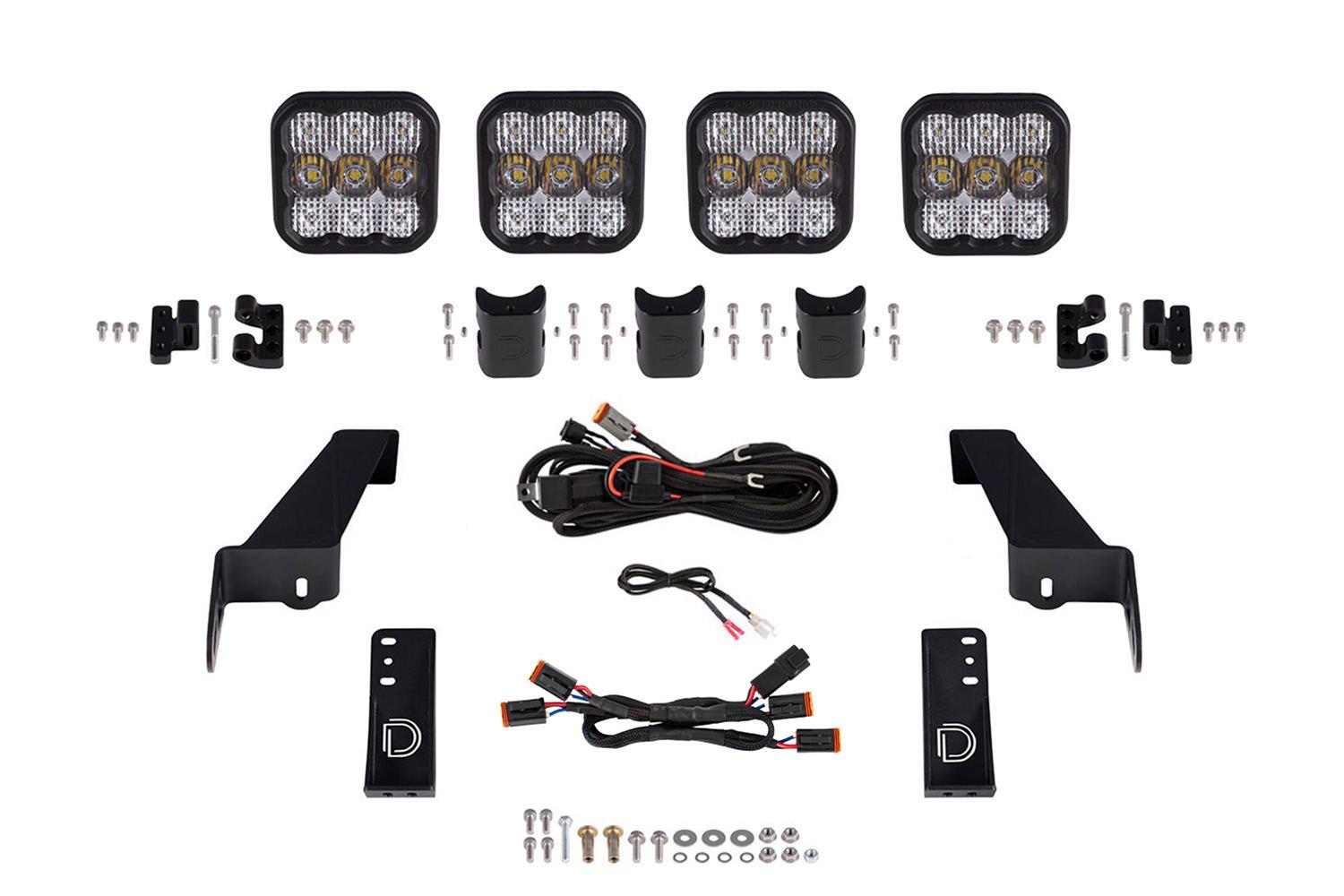

Diode Dynamics Jeep JL SS5 4-Pod CrossLink Grille Lightbar Kit Pro - White Combo
Diode Dynamics Jeep JL SS5 4-Pod CrossLink Grille Lightbar Kit Pro - White Combo
A$3,212.61
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
FeaturesBolt-on fitment compatible with Jeep JL Wrangler 2018-2021Ultra-high intensity with custom-engineered TIR opticsSelectable backlight color with eight color optionsTorture-tested heavy-duty constructionControl through factory aux switch bank using the included harnessAssembled in USAOverviewPerfect Fitment. The Grille CrossLink Lightbar Kit compatible with Jeep JL Wrangler 2018-2021 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper.Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra accent. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: The Yellow kit is only available with an Amber backlight color.CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.NOTE: The existing mounting points must be drilled out larger in order to secure the bracket.
Product Overview
Features
Bolt-on fitment compatible with Jeep JL Wrangler 2018-2021
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA
Overview
Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Jeep JL Wrangler 2018-2021 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper.
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra accent. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: The Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity, but is fully adjustable, for both straight and curved configurations.
NOTE: The existing mounting points must be drilled out larger in order to secure the bracket.
Features and Benefits
- Advanced TIR optics provide high efficiency and focus
- High-intensity automotive-type LEDs
- Pin-fin heatsink design
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
Product Details
| Add-On: | N/A |
|---|---|
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Combo (Driving and Flood) |
| Bolt Thread Type: | Medium |
| Color Temp: | 6000K |
| Compliance Rating: | SAE J581 Driving/Auxiliary High Beam Pattern |
| Description: | Pod light featuring advanced TIR optics for high efficiency and focus. |
| Drilling Required: | No |
| Input Power (watts): | Main Beam: 90 Backlight: 3.17 |
| Intensity (lux): | 75 700 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Measured Output (lumens): | 9 700 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Operating Voltage: | 9-16V |
| Part Number: | dioDD7268 |
| Prop 65 Yes/No: | Yes |
| Sheen Level: | Flat |
| Universal Or Specific Fit: | Specific |
Part Type
Light Bar Mounting Kit
Features
- Advanced TIR optics provide high efficiency and focus
- Durable powdercoated aluminum construction
- High-intensity automotive-type LEDs
- Integrated Deutsch-style connector
- Pin-fin heatsink design
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7268
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00195995126399
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7268 |
| SFX Item ID | 4187293 |
| Supplier Item Code | 4187293 |
| Manufacturer SKU | DD7268 |
| Manufacturer UPC | 195995126399 |
| Alternative References | DODDD7268, SS5, 4-Pod |
Brochures
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
