Diode Dynamics Stage Series Ditch Light Bracket Kit for 2019-Present Ram
dioDD7594P
A$196.27

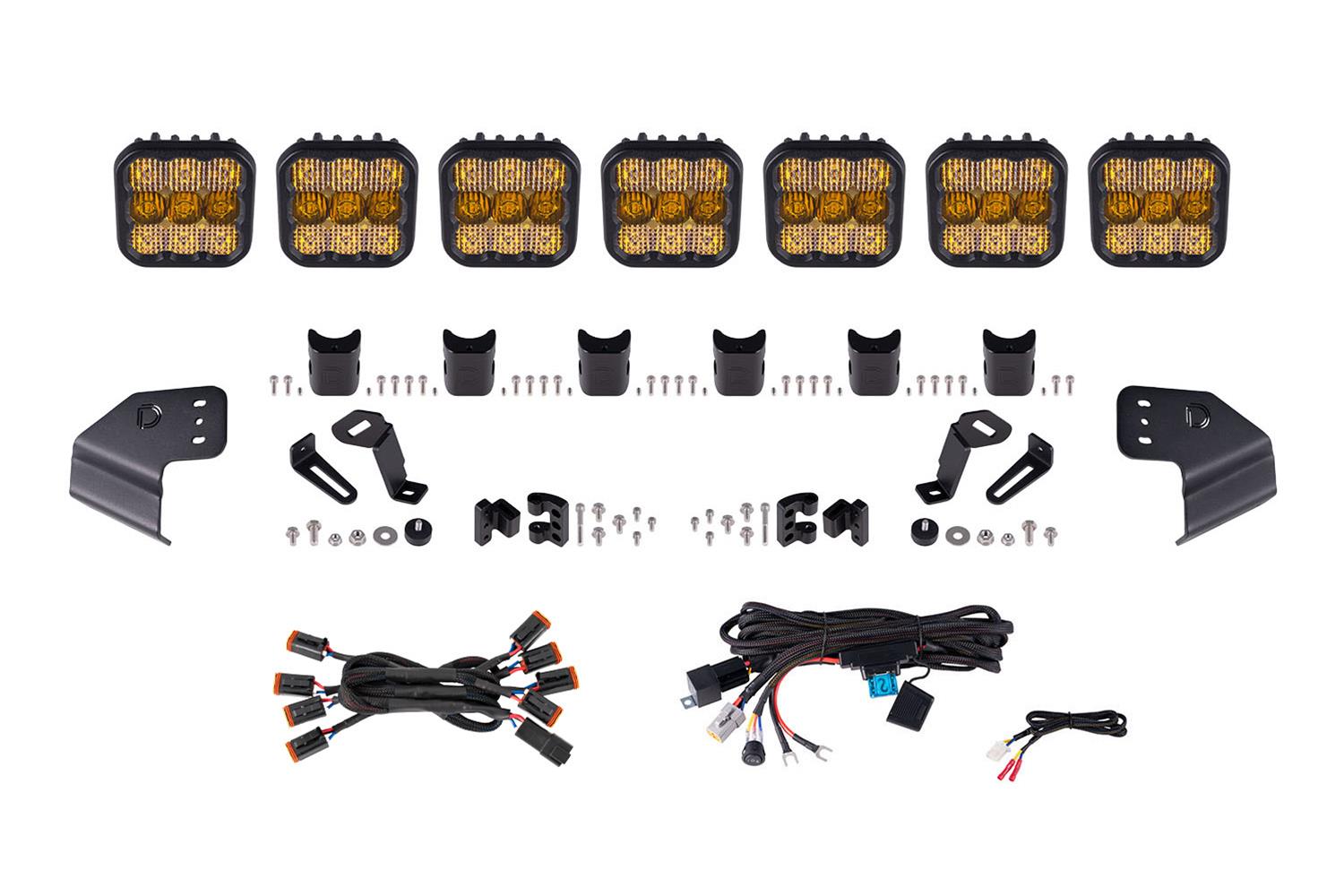

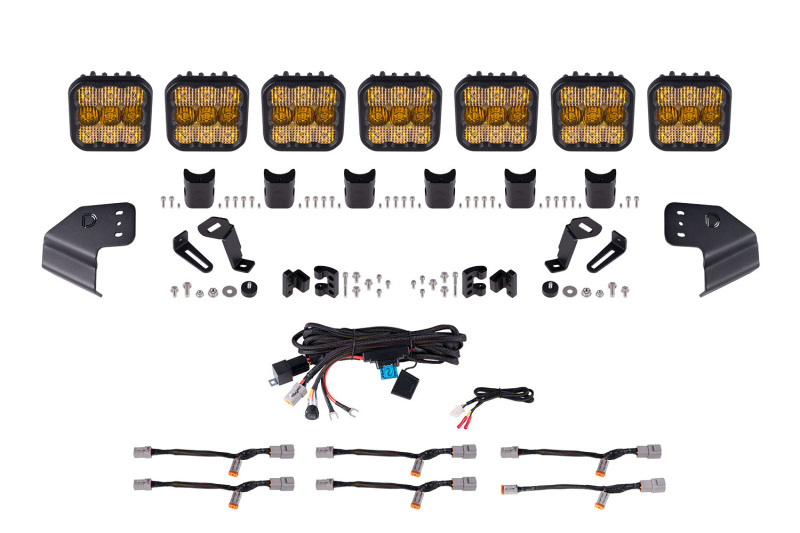

Diode Dynamics Bronco SS5 Pro CrossLink Windshield - Yellow Combo Lightbar Kit
Diode Dynamics Bronco SS5 Pro CrossLink Windshield - Yellow Combo Lightbar Kit
A$6,053.55
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
FeaturesBolt-on fitment compatible with Ford Bronco 2021Ultra-high intensity with custom-engineered TIR opticsSelectable backlight color with eight color optionsTorture-tested heavy-duty constructionControl through factory aux switch bank using the included harnessAssembled in USAOverviewPerfect Fitment. The Windshield CrossLink Lightbar Kit compatible with Ford Bronco 2021 from Diode Dynamics allows you to mount seven linked SS5 LED pods above the factory windshield. These application-specific brackets were CAD-designed to bolt into place using factory mounting points above the factory windshield. No cutting or drilling required!Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.Selectable Backlight. The SS5 LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for extra styling or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight.CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.
Product Overview
Features
Bolt-on fitment compatible with Ford Bronco 2021
Ultra-high intensity, with custom-engineered TIR optics
Selectable backlight color, with eight color options
Torture-tested, heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA
Overview
Perfect Fitment. The Windshield CrossLink Lightbar Kit compatible with Ford Bronco 2021 from Diode Dynamics allows you to mount seven linked SS5 LED pods above the factory windshield. These application-specific brackets were CAD-designed to bolt into place using factory mounting points above the factory windshield. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.
Selectable Backlight. The SS5 LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for extra styling, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity, but is fully adjustable, for both straight and curved configurations.
Features and Benefits
- Advanced TIR optics provide high efficiency and focus
- High-intensity automotive-type LEDs
- Pin-fin heatsink design
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
Product Details
| Add-On: | N/A |
|---|---|
| Base Color: | Black |
| Base Material: | Steel |
| Beam Angle: | Combo (Driving and Flood) |
| Bolt Thread Type: | Medium |
| Color Temp: | 3000K |
| Compliance Rating: | SAE J575 Durability Test |
| Description: | Pod light featuring advanced TIR optics for high efficiency and focus. |
| Drilling Required: | No |
| Input Power (watts): | Main Beam: 90 Backlight: 3.07 |
| Intensity (lux): | 58 500 cd |
| Intrusion Rating: | IP69K Waterproof High Pressure |
| Measured Output (lumens): | 7 900 lm |
| Mounting Hardware Included: | Yes |
| Operating Temperature: | -40C to 85C (-40F to 185F) |
| Operating Voltag: | 9-16V |
| Operating Voltage: | 9-16V |
| Part Number: | dioDD7265 |
| Prop 65 Yes/No: | Yes |
| Sheen Level: | Flat |
| Universal Or Specific Fit: | Specific |
Part Type
Light Bar Mounting Kit
Features
By directly manufacturing many of our products in St. Louis, Missouri, we are able to carefully control quality, while bringing unique items to market faster than the competition.
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD7265
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 00195995126382
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD7265 |
| SFX Item ID | 4187009 |
| Supplier Item Code | 4187009 |
| Manufacturer SKU | DD7265 |
| Manufacturer UPC | 195995126382 |
| Alternative References | DODDD7265, SS5 |
