Diode Dynamics
Diode Dynamics Stage Series Ditch Light Bracket Kit for 2019-Present Ram
dioDD7594P
A$196.27

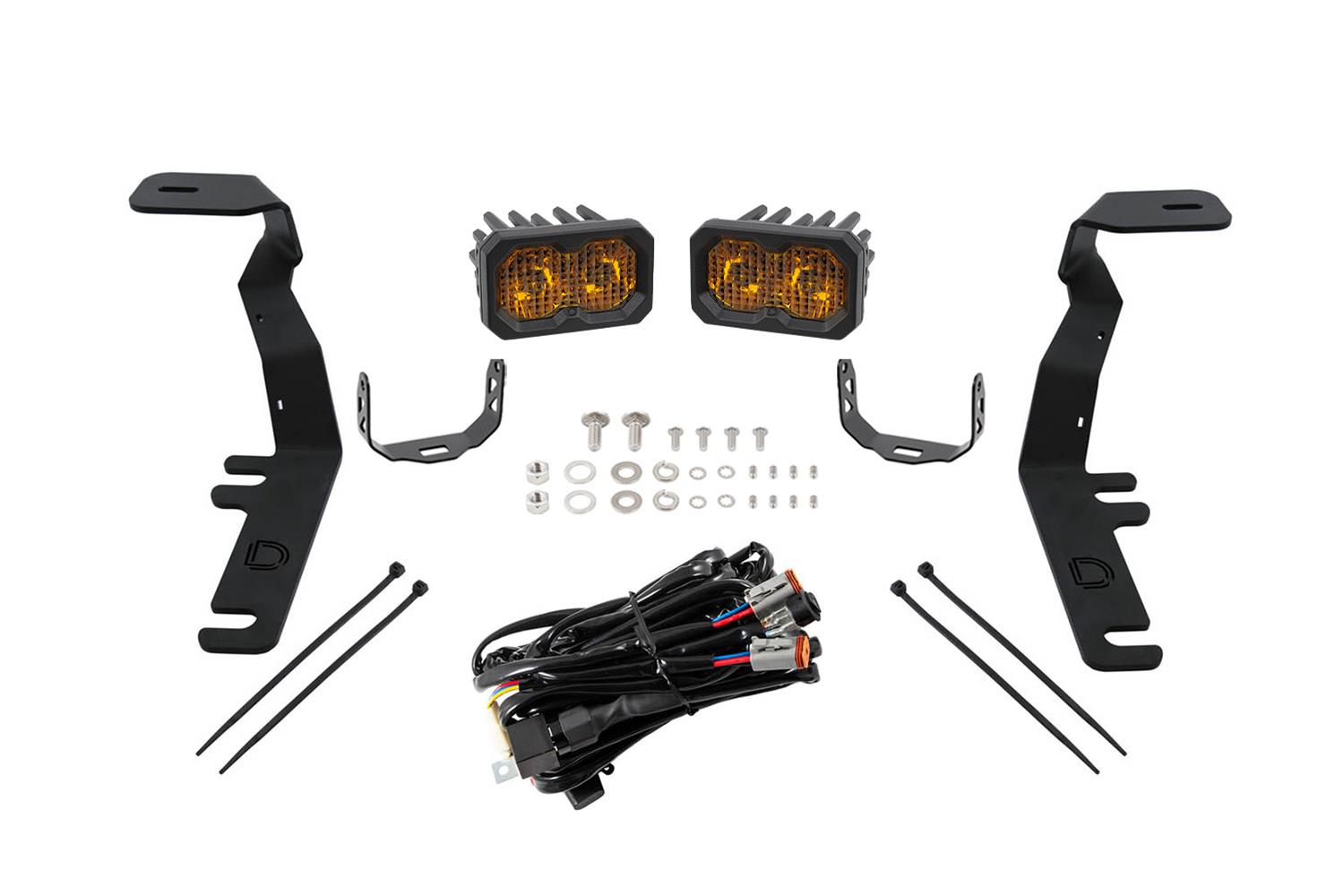

Diode Dynamics Stage Series 2 Light Pods DD6572 LED Light, 2in LED Ditch Kit for 2015-2020 Ford F-150/Raptor Sport Yellow Combo
Diode Dynamics Stage Series 2 Light Pods DD6572 LED Light, 2in LED Ditch Kit for 2015-2020 Ford F-150/Raptor Sport Yellow Combo
A$847.88
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Introducing the Stage Series 2 light pods from Diode Dynamics! Featuring higher output intensity than any other 2 in. light on the market, these LED pods have been designed for maximum functionality, with custom engineered TIR optics shining in highly useful beam patterns, all in a durable package. While other options on the market lose as much as 10 percent of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series 2 light pods serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Diode Dynamics Stage Series 2 is much greater than other LED pods using basic optics or reflectors with standard outer lens.
Product features and details:
* Durable powdercoated aluminum construction
* Pin-fin heatsink design
* Modern TIR optics for the highest intensity on the market—custom-engineered to collect all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency
* Backlighting available in white, amber, red, and blue—the SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products
* LED pods are available at two different power levels—Sport or Pro—both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output, however, the Pro option is double the amount of total power
* Functional patterns—with optical simulation modeling, to shape the output in a highly-functional beam pattern
* SAE Driving is designed to supplement your high beams, but it's great for general illumination as well—rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds
* SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread—it serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle
* Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light—perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites
* Combo pattern combines both the Driving and Flood optics—shines light downrange in a focused, rectangular 40x20 degree pattern; the combo lens features a flood optic on one side and a driving optic on the other
* Spot is an unmodified pattern, shining light directly from the TIR optic—the result is a highly focused 6-degree beam of light, perfect for directing light far into the distance
* When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use
* Custom-molded DT type Deutsch-style connector on the back and comes with a 6 in. pigtail with bare leads—for installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness (sold separately)
* Proven reliability—Stage Series 2 LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing
Part Type
Light Bars, Light Pods and Fog Lights
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD6572
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - Product Line
- Diode Dynamics Stage Series 2 Light Pods
- Product Attributes - UPC
- 00691026126913
- Product Attributes - Light Type
- Light pod
- Product Attributes - Bulb Type
- LED
- Product Attributes - Light Pod Type
- Rectangular
- Product Attributes - Optics Style
- Spot
- Product Attributes - Light Pod Size
- 2 in. x 3.3 in.
- Product Attributes - Watts
- 7.7 watts
- Product Attributes - Amp Draw
- 0.60 amps
- Product Attributes - Maximum Voltage
- 16 V
- Product Attributes - Lumens
- 777
- Product Attributes - Bulb Color
- Yellow
- Product Attributes - Lens Color
- Clear
- Product Attributes - Housing Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Light Cover Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Relay Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD6572 |
| SFX Item ID | 4779018 |
| Supplier Item Code | 4779018 |
| Manufacturer SKU | DD6572 |
| Manufacturer UPC | 691026126913 |
| Alternative References | DODDD6572, 2in, F-150/Raptor |
