Diode Dynamics Heavy Duty (Single) Output 4 Pin Wiring Harness

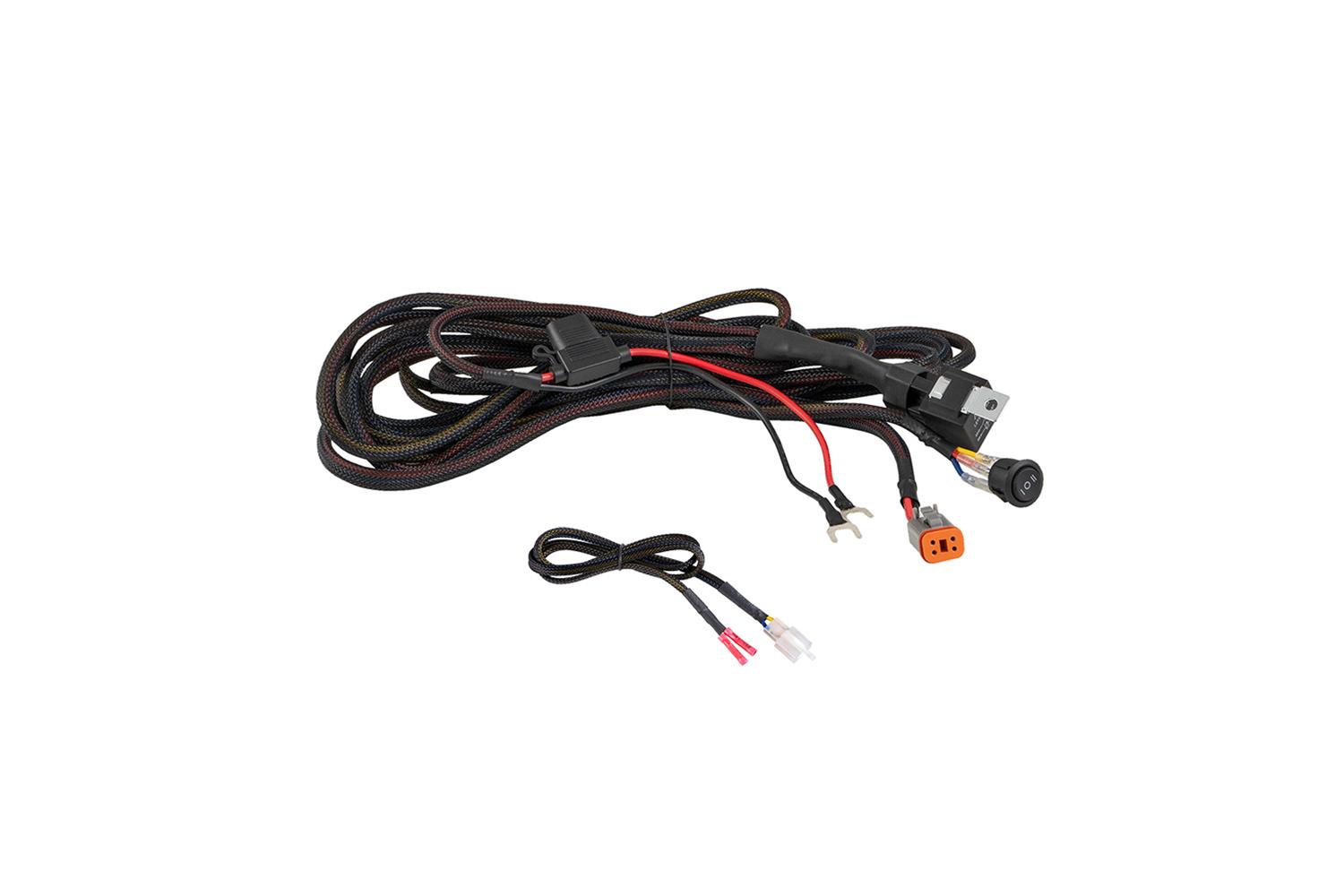

Diode Dynamics Heavy Duty (Single) Output 4 Pin Wiring Harness
A$103.00
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Features Powers Diode Dynamics LED pods with backlight functionality. Connects directly to the battery to power your LED pods. High capacity 14AWG wiring. Single Deutsch DT output connector. 30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods. Overview Stage Series. This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation. This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below. C1 Sport: 1.2A C1 Pro: 1.7A SSC2 Sport: 0.6A SSC2 Pro: 1.75A SS5 Sport: 2.8A SS5 Pro: 6.7A Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
Product Overview
Features
Powers Diode Dynamics LED pods with backlight functionality.
Connects directly to the battery to power your LED pods.
High capacity 14AWG wiring.
Single Deutsch DT output connector.
30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.
Overview
Stage Series. This harness is intended to be used with our Stage Series LED Pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and a Deutsch DT connector for simple plug-and-play installation.
This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.
C1 Sport: 1.2A
C1 Pro: 1.7A
SSC2 Sport: 0.6A
SSC2 Pro: 1.75A
SS5 Sport: 2.8A
SS5 Pro: 6.7A
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
Features and Benefits
- Powers Diode Dynamics LED pods with backlight functionality
- Connects directly to the battery to power your LED pods
- High capacity 14AWG wiring
- Single Deutsch DT output connector
- 30A waterproof fuse and 60A 12V relay
Product Details
| Add-On: | N/A |
|---|---|
| Bin Quantity: | 1 |
| Color: | Black |
| Description: | Intended to be used with our Stage Series LED Pods with backlight functionality. |
| Operating Voltag: | 9-16V |
| Operating temperature: | -40C to 85C (-40F to 185F) |
| Part Number: | dioDD4104 |
| Prop 65 Yes/No: | Yes |
Part Type
Wiring Harnesses
Features
- 30A waterproof fuse and 60A 12V relay
- Connects directly to the battery to power your LED pods
- High capacity 14AWG wiring
- Powers Diode Dynamics LED pods with backlight functionality
- Single Deutsch DT output connector
Specifications
- Product Attributes - Brand
- Diode Dynamics
- Product Attributes - Manufacturer's Part Number
- DD4104
- Product Attributes - Part Type
- Wiring Harnesses
- Product Attributes - UPC
- 00195995126665
Reference Information
| Brand Name/s | Diode Dynamics |
|---|---|
| StreetFX SKU | dioDD4104 |
| SFX Item ID | 4187406 |
| Supplier Item Code | 4187406 |
| Manufacturer SKU | DD4104 |
| Manufacturer UPC | 195995126665 |
| Alternative References | DODDD4104 |
