Derale Cooling Products

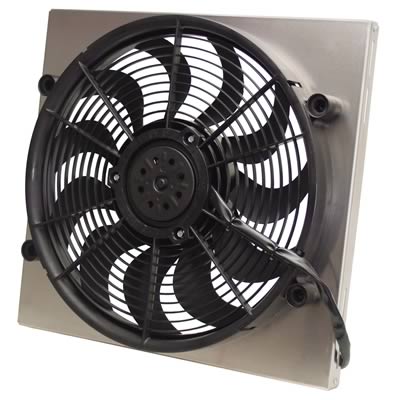

17 Inch 2,400 CFM Derale High-Output Single RAD Fan and Shroud Kit 16819 Electric Fan, Single, in. Diameter, w/Shroud, 18.750 in. Width, 17.625 in. Height, 3.00 in. Thick, Each

SKU: DER16819

Fans, Electric
17 Inch 2,400 CFM Derale High-Output Single RAD Fan and Shroud Kit 16819 Electric Fan, Single, in. Diameter, w/Shroud, 18.750 in. Width, 17.625 in. Height, 3.00 in. Thick, Each

Derale Cooling Products

17 Inch 2,400 CFM Derale High-Output Single RAD Fan and Shroud Kit 16819 Electric Fan, Single, in. Diameter, w/Shroud, 18.750 in. Width, 17.625 in. Height, 3.00 in. Thick, Each

SKU: DER16819

Fans, Electric

Sale ends in Calculating...

A$964.29 A$1,038.60
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Derale high-output single RAD fan and shroud kits eliminate the need for fuel and horsepower-robbing, belt-driven fans. These primary cooling fans are designed to provide maximum performance at high static-pressure loads for highly effective cooling! Their ultra-quiet patented skewed-blade design and 265 watt 2-speed motors allow these fans to smoothly pull large amounts of air to your engine. RAD fan shrouds are constructed from aircraft-quality aluminum with a natural satin finish that can be painted, anodized, or polished to your liking. Derale Performance high-output single RAD fan and shroud kits come complete with mounting hardware and instructions.

Part Type

RAD Fan w/Alum Shroud Assembly

Data: v4.2 - Upd: 2026-10-15 00:12:43

Specifications

Product Attributes - Brand
Derale Cooling Products
Product Attributes - Manufacturer's Part Number
16819
Product Attributes - Part Type
Fans, Electric
Product Attributes - Product Line
Derale High-Output Single RAD Fan and Shroud Kits
Product Attributes - UPC
083277168192
Product Attributes - Puller
Yes
Product Attributes - Pusher
No
Product Attributes - Fan Diameter (in.)
17.00 in.
Product Attributes - Fan CFM Range
2,400-2,499
Product Attributes - Maximum Fan CFM
2,400 cfm
Product Attributes - Fan Quantity
Single
Product Attributes - Electric Motor Type
Brushed
Product Attributes - Height (in.)
17.625 in.
Product Attributes - Width (in.)
18.750 in.
Product Attributes - Thickness (in.)
3.000
Product Attributes - Number of Blades
11 blades
Product Attributes - Blade Material
Plastic
Product Attributes - Blade Color
Black
Product Attributes - Shroud Color
Natural
Product Attributes - Shroud Material
Aluminum
Product Attributes - Amp Draw
23.50 amps
Product Attributes - Air Conditioning Relay Included
No
Product Attributes - Mounting Brackets Included
Yes
Product Attributes - Mounting Hardware Included
Yes
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
2-speed motor, low speed draws 17.4 amps at 1,800 cfm, high speed draws 23.5 amps at 2,400 cfm.

Reference Information

Brand Name/s Derale Cooling Products
StreetFX SKU der16819
SFX Item ID 5010680
Supplier Item Code 5010680
Manufacturer SKU 16819
Manufacturer UPC 83277168192

Compatibility

Application Data
  • UniversalYes
