Derale Cooling Products

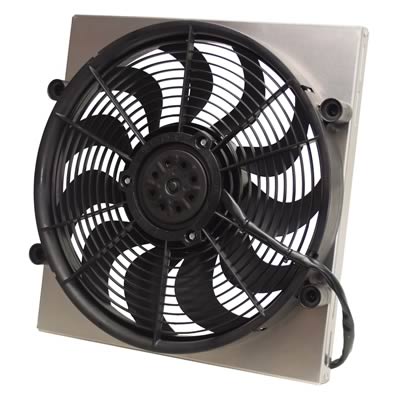

17 Inch 2,400 CFM Derale High-Output Single RAD Fan and Shroud Kit 16816 Electric Fan, Single, in. Diameter, w/Shroud, 16.750 in. Width, 17.625 in. Height, 3.00 in. Thick, Each

SKU: DER16816

Fans, Electric
17 Inch 2,400 CFM Derale High-Output Single RAD Fan and Shroud Kit 16816 Electric Fan, Single, in. Diameter, w/Shroud, 16.750 in. Width, 17.625 in. Height, 3.00 in. Thick, Each

Derale Cooling Products

17 Inch 2,400 CFM Derale High-Output Single RAD Fan and Shroud Kit 16816 Electric Fan, Single, in. Diameter, w/Shroud, 16.750 in. Width, 17.625 in. Height, 3.00 in. Thick, Each

SKU: DER16816

Fans, Electric

Sale ends in Calculating...

A$946.44 A$1,038.60
LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Derale high-output single RAD fan and shroud kits eliminate the need for fuel and horsepower-robbing, belt-driven fans. These primary cooling fans are designed to provide maximum performance at high static-pressure loads for highly effective cooling! Their ultra-quiet patented skewed-blade design and 265 watt 2-speed motors allow these fans to smoothly pull large amounts of air to your engine. RAD fan shrouds are constructed from aircraft-quality aluminum with a natural satin finish that can be painted, anodized, or polished to your liking. Derale Performance high-output single RAD fan and shroud kits come complete with mounting hardware and instructions.

Part Type

RAD Fan w/Alum Shroud Assembly

Data: v4.2 - Upd: 2026-10-15 00:16:31

Specifications

Product Attributes - Brand
Derale Cooling Products
Product Attributes - Manufacturer's Part Number
16816
Product Attributes - Part Type
Fans, Electric
Product Attributes - Product Line
Derale High-Output Single RAD Fan and Shroud Kits
Product Attributes - UPC
083277168161
Product Attributes - Puller
Yes
Product Attributes - Pusher
No
Product Attributes - Fan Diameter (in.)
17.00 in.
Product Attributes - Fan CFM Range
2,400-2,499
Product Attributes - Maximum Fan CFM
2,400 cfm
Product Attributes - Fan Quantity
Single
Product Attributes - Electric Motor Type
Brushed
Product Attributes - Height (in.)
17.625 in.
Product Attributes - Width (in.)
16.750 in.
Product Attributes - Thickness (in.)
3.000
Product Attributes - Number of Blades
11 blades
Product Attributes - Blade Material
Plastic
Product Attributes - Blade Color
Black
Product Attributes - Shroud Color
Natural
Product Attributes - Shroud Material
Aluminum
Product Attributes - Amp Draw
23.50 amps
Product Attributes - Air Conditioning Relay Included
No
Product Attributes - Mounting Brackets Included
Yes
Product Attributes - Mounting Hardware Included
Yes
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
2-speed motor, low speed draws 17.4 amps at 1,800 cfm, high speed draws 23.5 amps at 2,400 cfm.

Reference Information

Brand Name/s Derale Cooling Products
StreetFX SKU der16816
SFX Item ID 5010364
Supplier Item Code 5010364
Manufacturer SKU 16816
Manufacturer UPC 83277168161
