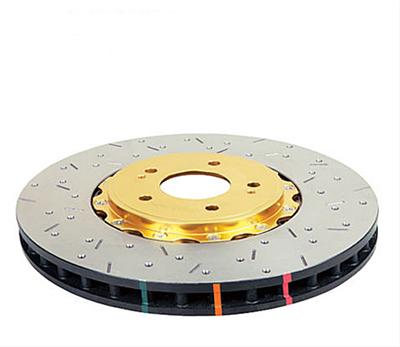

DBA HD Series 5000XS Brake Rotors DBA52314.1XS Disc Rotor

SKU: DBADBA52314.1XS

Brake Rotors

DBA HD Series 5000XS Brake Rotors DBA52314.1XS Disc Rotor

SKU: DBADBA52314.1XS

Brake Rotors

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

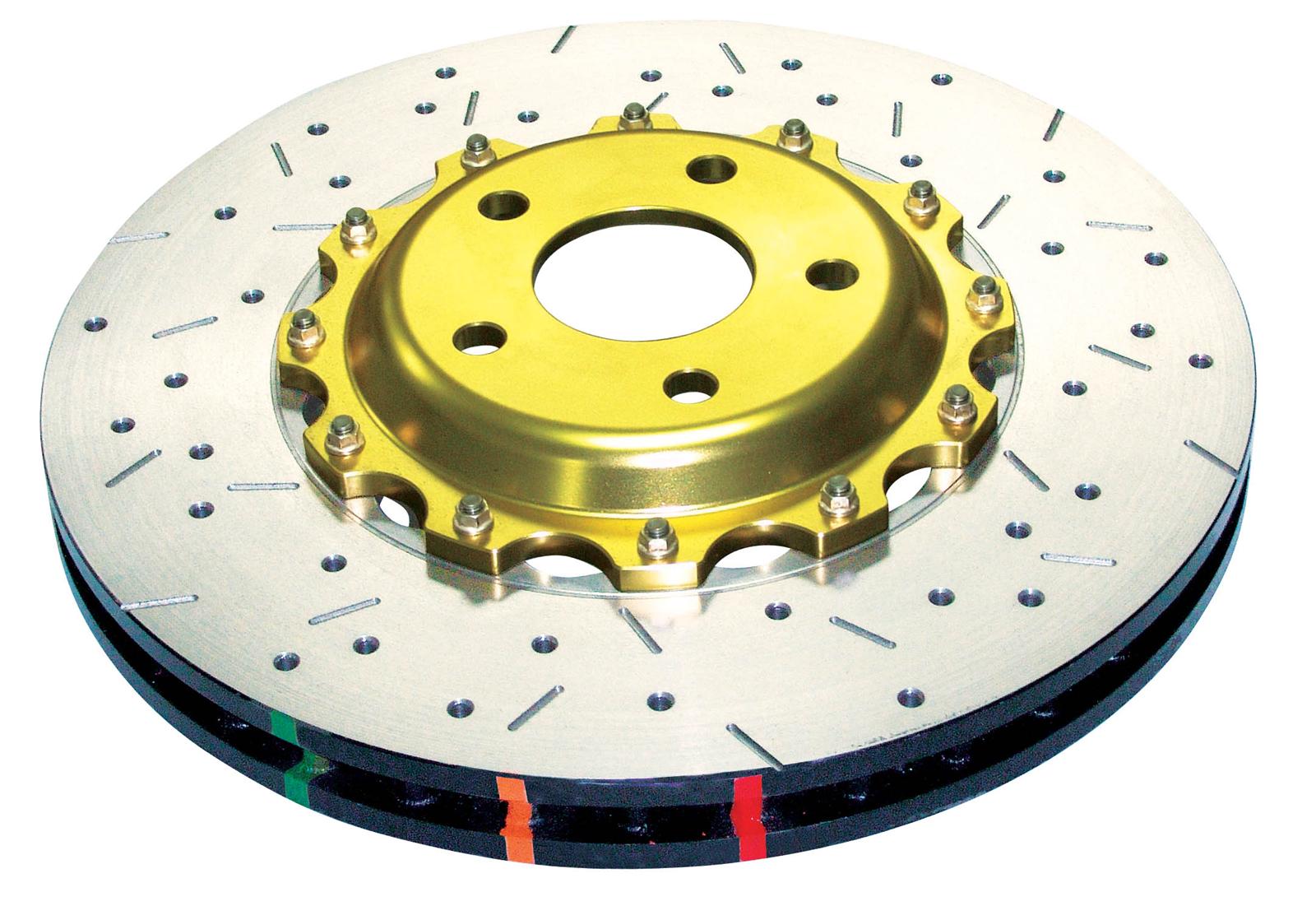

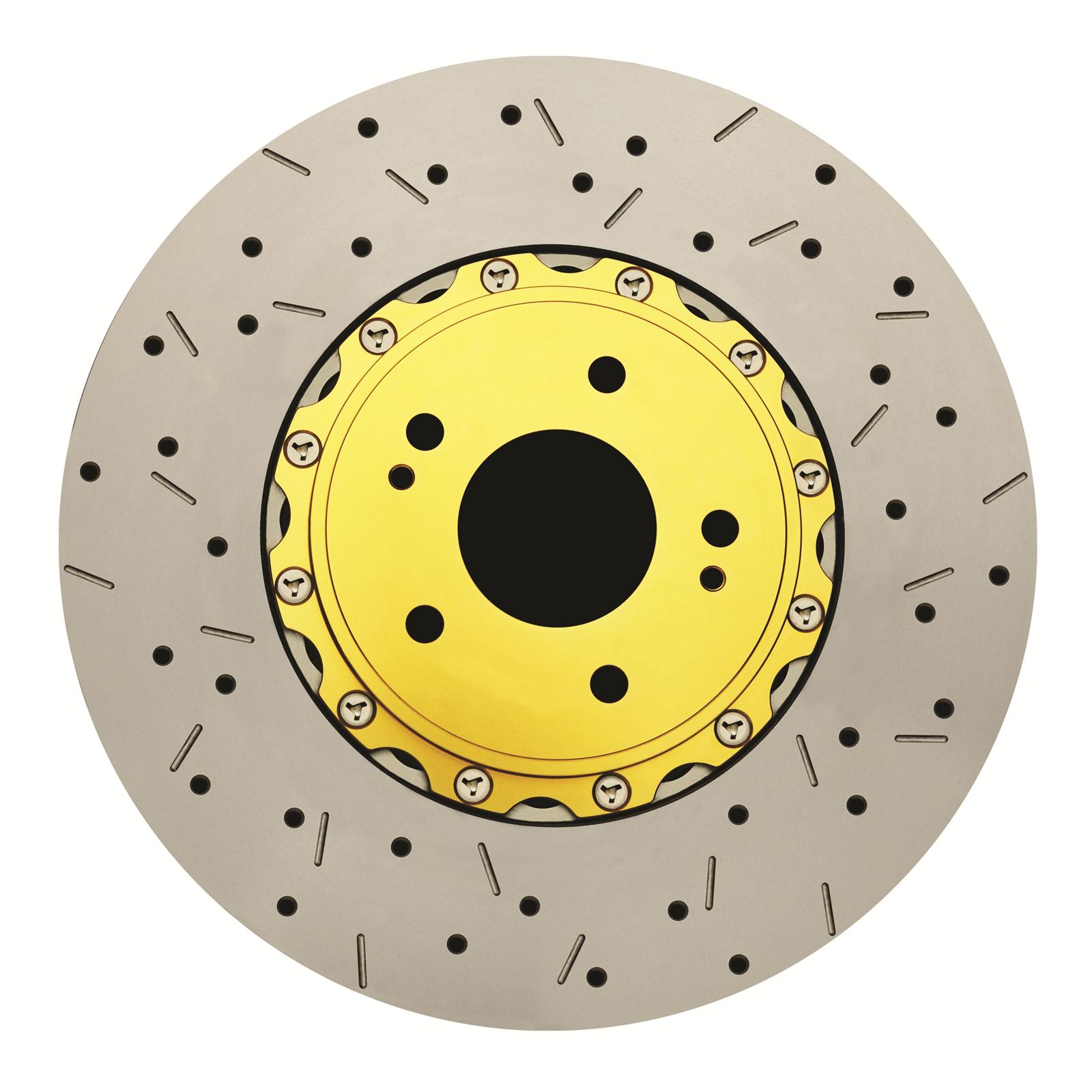

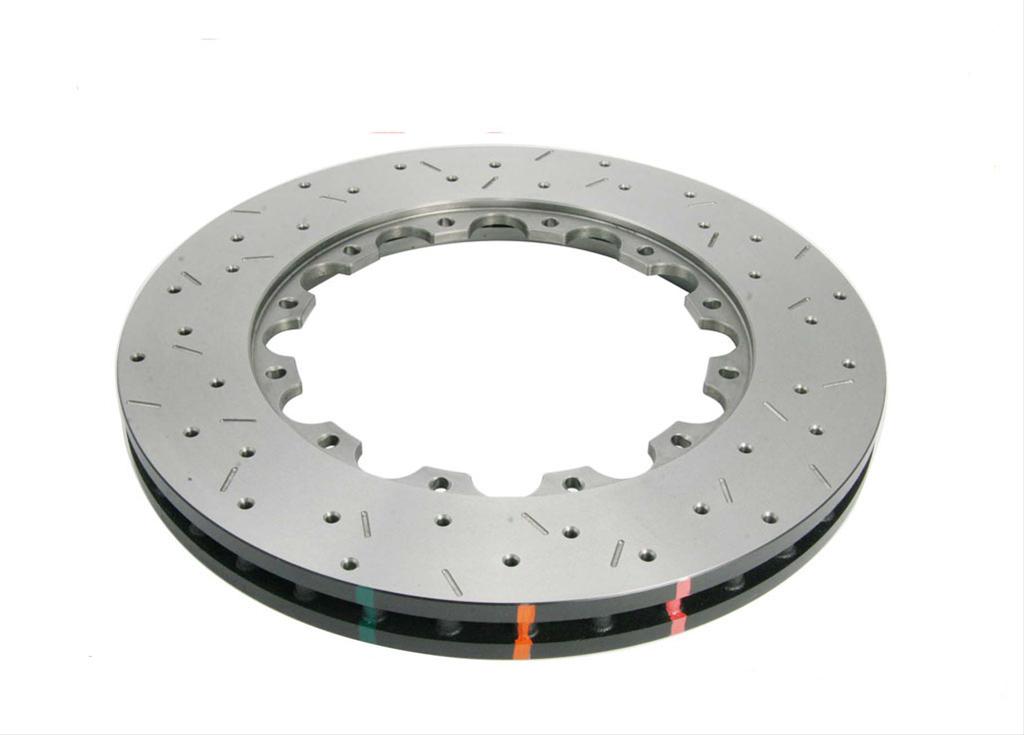

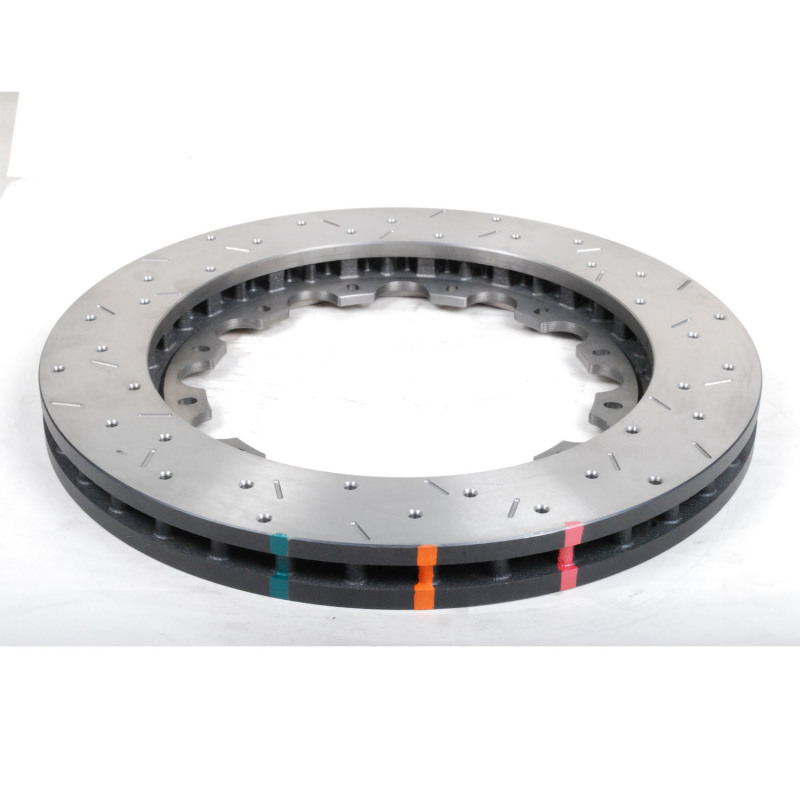

Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminum hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts. The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminum hats. The use of aerospace grade aluminum hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminum hats. DBA offers both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors (rings). This allows drivers to re-use their DBA 5000 Series hats with DBA replacement flat discs (rings). DBA recommends the 5000 Series for high performance street vehicles, track day and club racing and rally applications.

Application Summary

Sports Package

Part Type

Disc Brake Rotor

Data: v4.2 - Upd: 2026-10-14 10:35:53

Specifications

Product Attributes - Brand: Disc Brakes Australia USA LLC
Product Attributes - Manufacturer's Part Number: DBA52314.1XS
Product Attributes - Part Type: Brake Rotors
Product Attributes - Product Line: DBA HD Series 5000XS Brake Rotors
Product Attributes - UPC: 9316391371027
Product Attributes - Intended for Street Use: Yes
Product Attributes - For Use with Stock Calipers: Yes
Product Attributes - Rotor Construction: Vented
Product Attributes - Rotor Style: Cross-drilled and slotted surface
Product Attributes - Rotor Outside Diameter (in.): 13.98 in.
Product Attributes - Nominal Thickness (in.): 1.260
Product Attributes - Rotor Material: Iron
Product Attributes - Rotor Finish: Gold painted
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Dba
StreetFX SKU	dbaDBA52314.1XS
SFX Item ID	4870262
Supplier Item Code	4870262
Manufacturer SKU	DBA52314.1XS
Manufacturer UPC	9316391371027
Alternative References	5000XS
