DBA HD Series 5000XS Brake Rotors DBA52218.1XS Disc Rotor
DBA HD Series 5000XS Brake Rotors DBA52218.1XS Disc Rotor
A$631.36
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

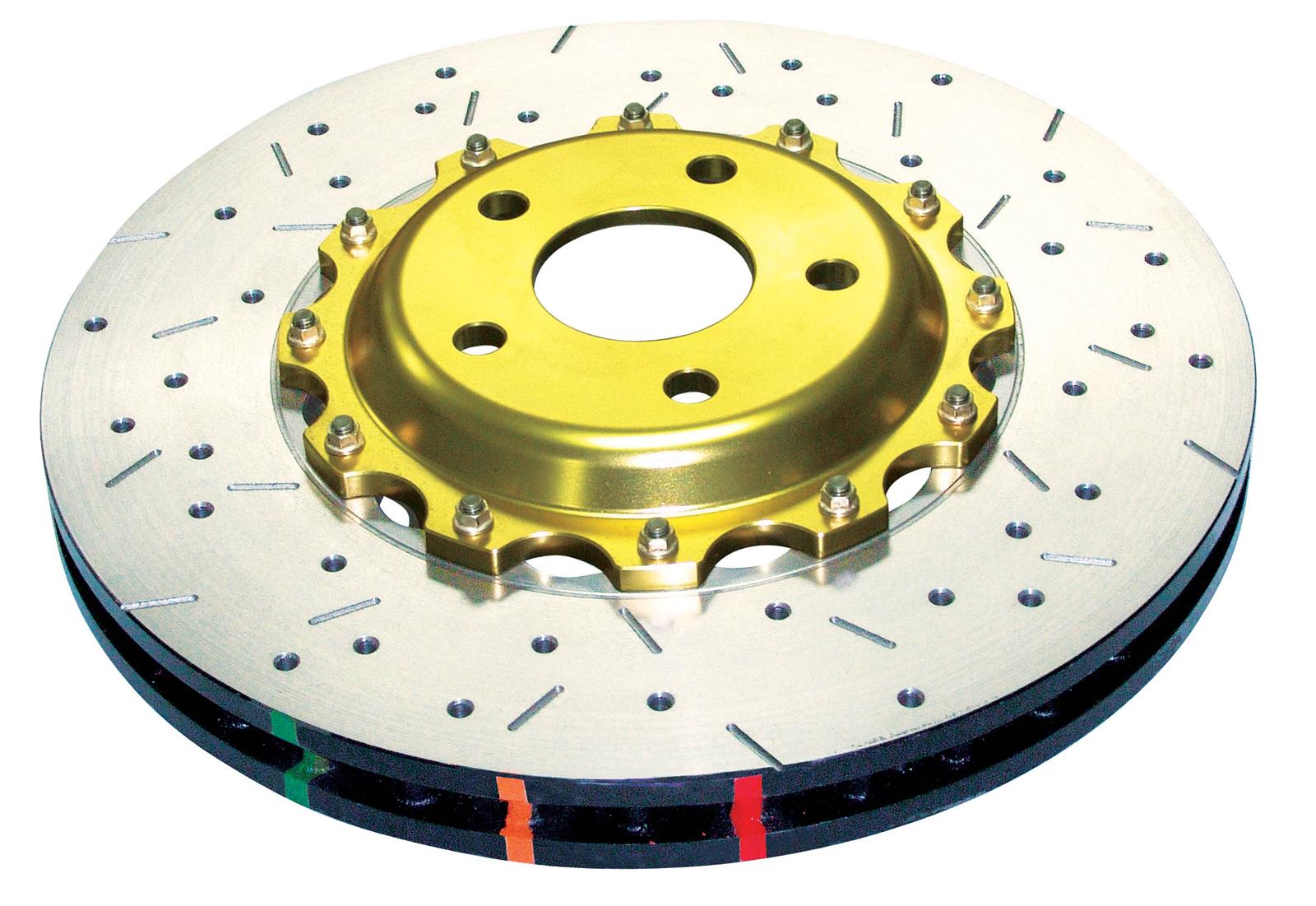

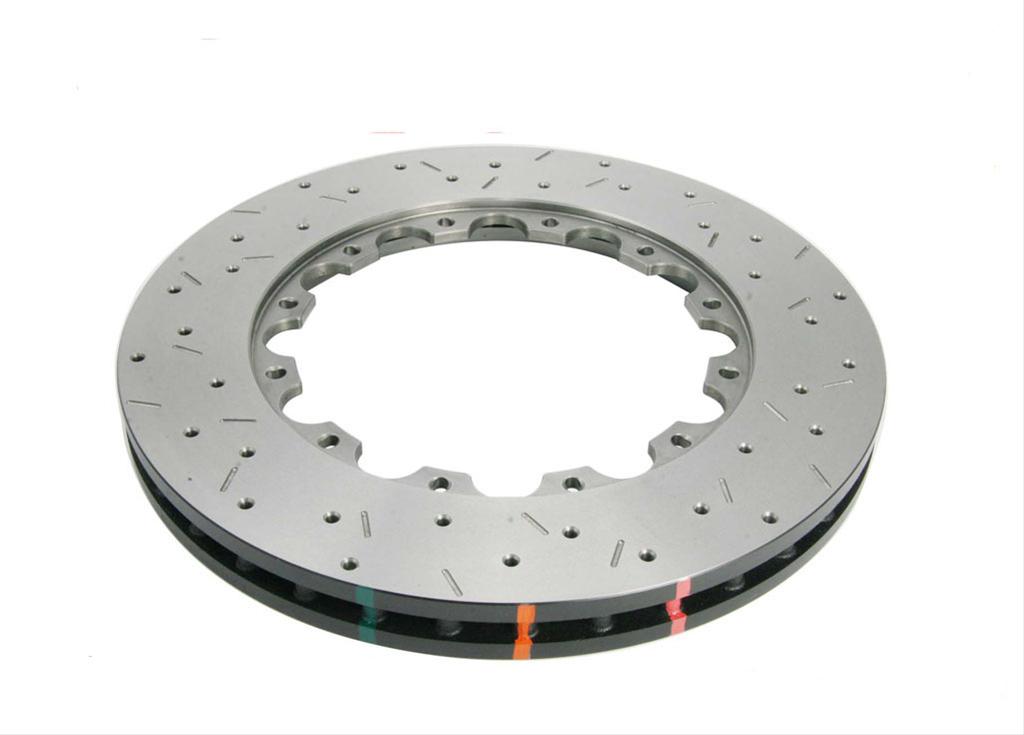

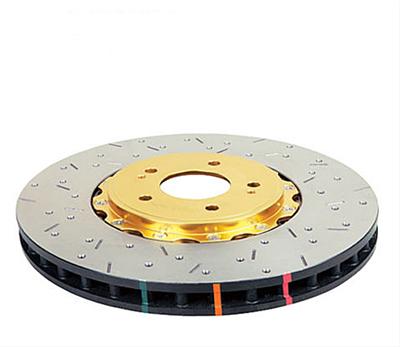

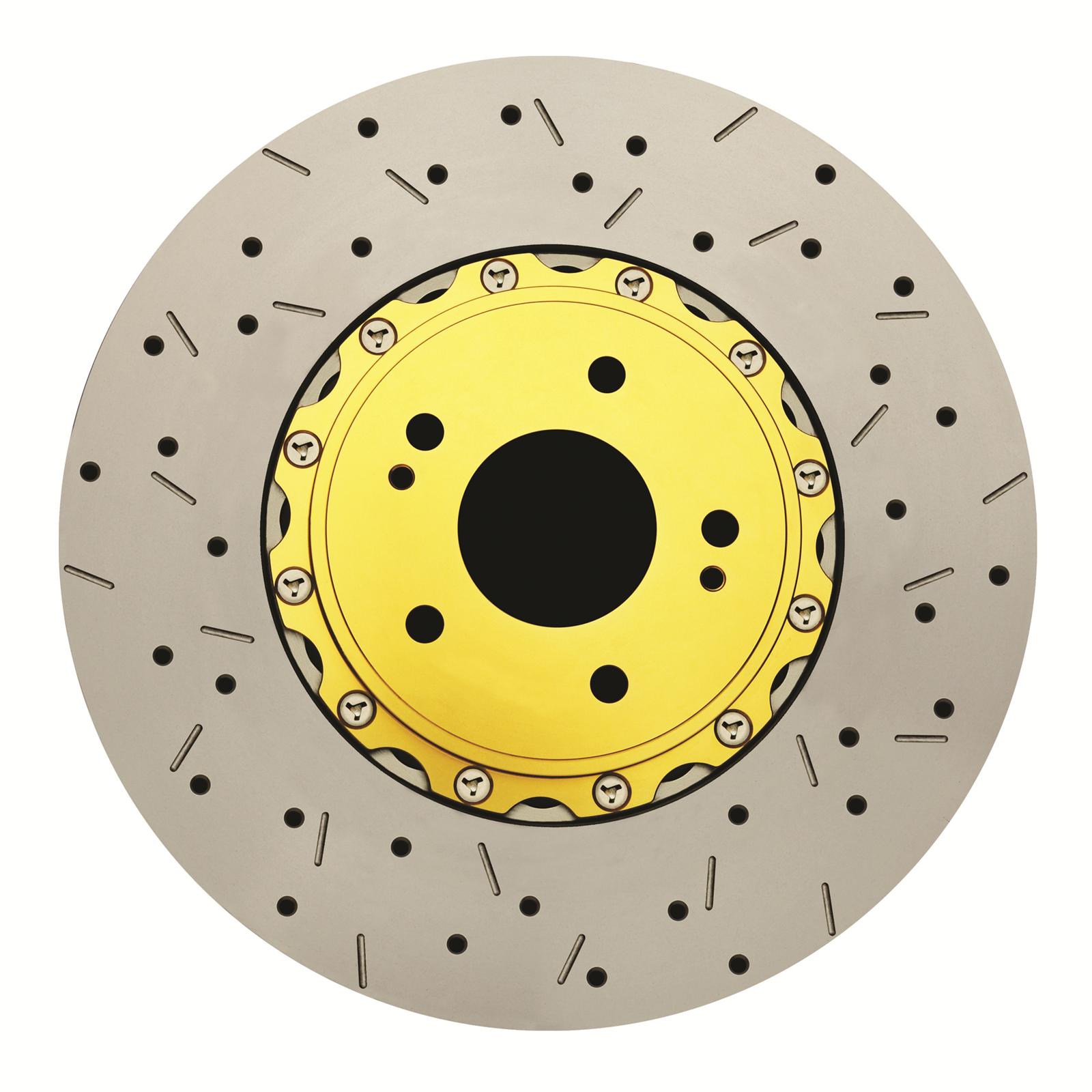

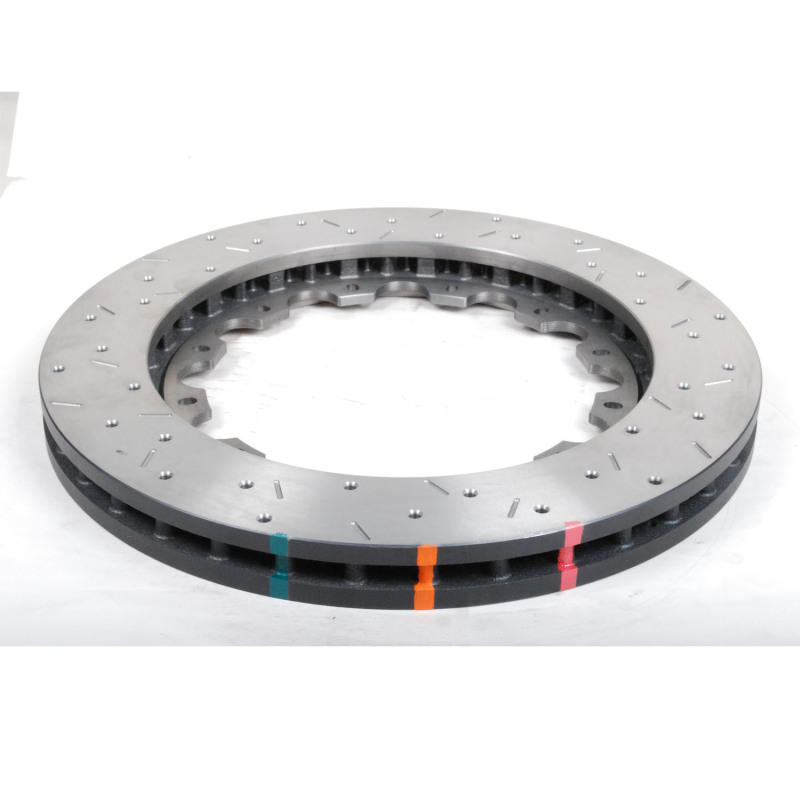

Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminum hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts. The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminum hats. The use of aerospace grade aluminum hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminum hats. DBA offers both complete assemblies for first time replacement (hats and flat discs bolted together) along with replacement hats and flat disc rotors (rings). This allows drivers to re-use their DBA 5000 Series hats with DBA replacement flat discs (rings). DBA recommends the 5000 Series for high performance street vehicles, track day and club racing and rally applications.
Part Type
Disc Brake Rotor
Specifications
- Product Attributes - Brand
- Disc Brakes Australia USA LLC
- Product Attributes - Manufacturer's Part Number
- DBA52218.1XS
- Product Attributes - Part Type
- Brake Rotors
- Product Attributes - Product Line
- DBA HD Series 5000XS Brake Rotors
- Product Attributes - UPC
- 9316391351609
- Product Attributes - Intended for Street Use
- Yes
- Product Attributes - For Use with Stock Calipers
- Yes
- Product Attributes - Rotor Construction
- Vented
- Product Attributes - Rotor Style
- Cross-drilled and slotted surface
- Product Attributes - Rotor Outside Diameter (in.)
- 12.60 in.
- Product Attributes - Nominal Thickness (in.)
- 1.260
- Product Attributes - Rotor Material
- Iron
- Product Attributes - Rotor Finish
- Gold painted
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Dba |
|---|---|
| StreetFX SKU | dbaDBA52218.1XS |
| SFX Item ID | 4875322 |
| Supplier Item Code | 4875322 |
| Manufacturer SKU | DBA52218.1XS |
| Manufacturer UPC | 9316391351609 |
| Alternative References | 5000XS |
