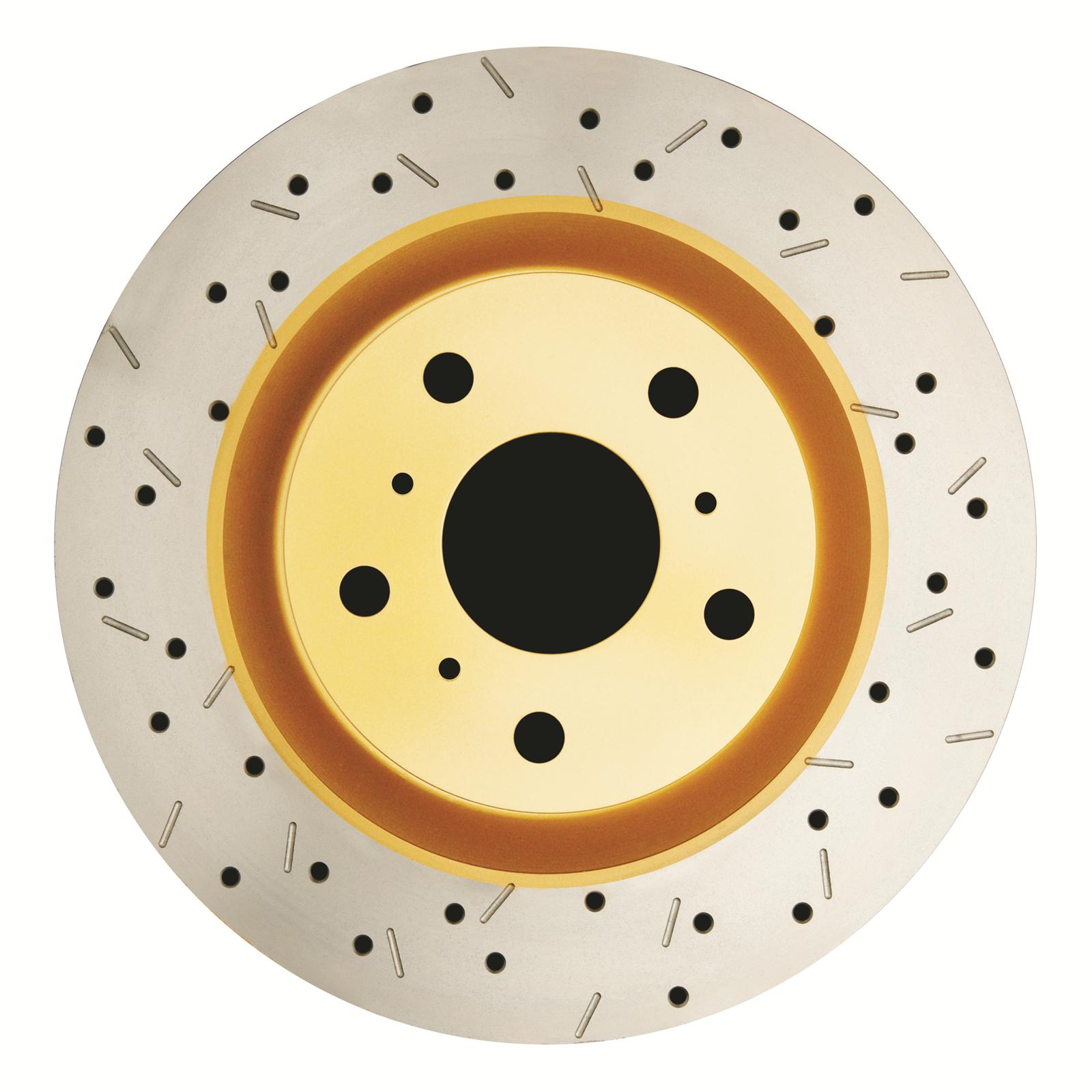

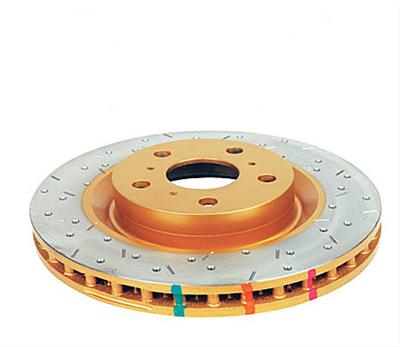

DBA HD Series 4000XS Brake Rotors DBA42355XS Disc Rotor, Cross-Drilled, Slotted, 4000 XS Series, Uni-Directional, Lotus, Front, Each
DBA HD Series 4000XS Brake Rotors DBA42355XS Disc Rotor, Cross-Drilled, Slotted, 4000 XS Series, Uni-Directional, Lotus, Front, Each
A$432.55
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling. DBA's metallurgy is able to handle the increased stress and heat generated under intense braking application time and time again. Featuring DBA;s patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars. DBA achieves up to a 30% increase in surface are and 20% improvement in cooling efficiency compared to traditional straight vane design.
Product Overview
Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling. DBA's metallurgy is able to handle the increased stress and heat generated under intense braking application time and time again. Featuring DBA;s patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars. DBA achieves up to a 30% increase in surface are and 20% improvement in cooling efficiency compared to traditional straight vane design.
Product Details
| AAP Agricultural Equipment: | N |
|---|---|
| AAP Application Specific: | Y |
| AAP Car / Light Truck: | Y |
| AAP Engine Specific: | N |
| AAP Freight Class: | 60 |
| AAP Heavy Duty Truck: | N |
| AAP High Performance: | N |
| AAP Industrial / Off Highway Equipment: | N |
| AAP Marine: | N |
| AAP Medium Duty Truck: | N |
| AAP Motorcycle / ATV: | N |
| AAP Non-Vehicle Specific: | N |
| AAP Part Type ID: | 221 |
| AAP Personal Watercraft: | N |
| AAP Selling Package Quantity UOM: | EA |
| AAP Selling Package Quantity: | 1 |
| AAP Small Engine: | N |
| AAP Snowmobile: | N |
| AAP Transmission Specific: | N |
| Bolt Circle Diameter: | 100 |
| Bolt Hole Quantity: | 4 |
| Center Bore Diameter: | 60 |
| Description: | 4000 Series Rotor; Cross Drilled/Slotted Uni-Directional Rotor |
| Discard Thickness: | 24 |
| Height: | 43.3 |
| Nominal Thickness: | 26 |
| Outside Diameter: | 288 |
| Part Number: | dba42355XS |
| Position: | Front and Rear |
| Product Weight: | 13.45 |
| Title: | Disc Brake Australia 4000 Series Drilled/Slotted rotor |
Part Type
Disc Brake Rotor
Specifications
- Product Attributes - Brand
- Disc Brakes Australia USA LLC
- Product Attributes - Manufacturer's Part Number
- DBA42355XS
- Product Attributes - Part Type
- Brake Rotors
- Product Attributes - Product Line
- DBA HD Series 4000XS Brake Rotors
- Product Attributes - UPC
- 9316391365910
- Product Attributes - Intended for Street Use
- Yes
- Product Attributes - For Use with Stock Calipers
- Yes
- Product Attributes - Rotor Construction
- Vented
- Product Attributes - Rotor Style
- Cross-drilled and slotted surface
- Product Attributes - Rotor Outside Diameter (in.)
- 11.33 in.
- Product Attributes - Brake Rotor Bolt Pattern (mm)
- 4 x 100.00mm
- Product Attributes - Nominal Thickness (in.)
- 1.023
- Product Attributes - Rotor Material
- Iron
- Product Attributes - Rotor Finish
- Natural
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Non-friction areas are painted gold.
Reference Information
| Brand Name/s | Dba |
|---|---|
| StreetFX SKU | dbaDBA42355XS |
| SFX Item ID | 4873139 |
| Supplier Item Code | 4873139 |
| Manufacturer SKU | DBA42355XS |
| Manufacturer UPC | 9316391365910 |
| Alternative References | 4000XS |
