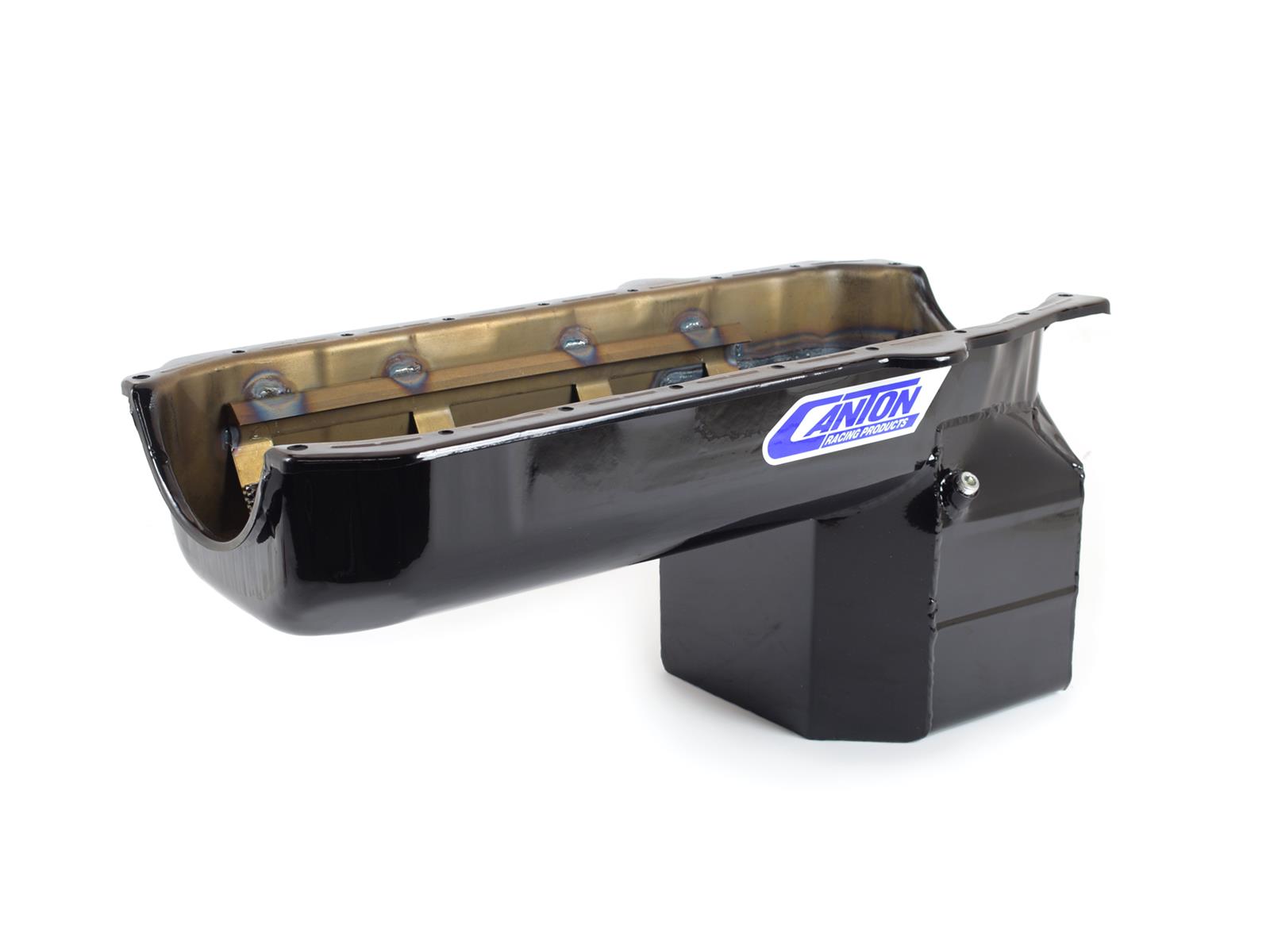

Canton Racing Truck Wet Sump Pans 16-100 Oil Pan, Truck, 4WD, Steel, Black Powdercoated, 6 qt., Rear Sump, Chevy, Small Black, Each
Canton Racing Truck Wet Sump Pans 16-100 Oil Pan, Truck, 4WD, Steel, Black Powdercoated, 6 qt., Rear Sump, Chevy, Small Black, Each
A$1,136.37
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

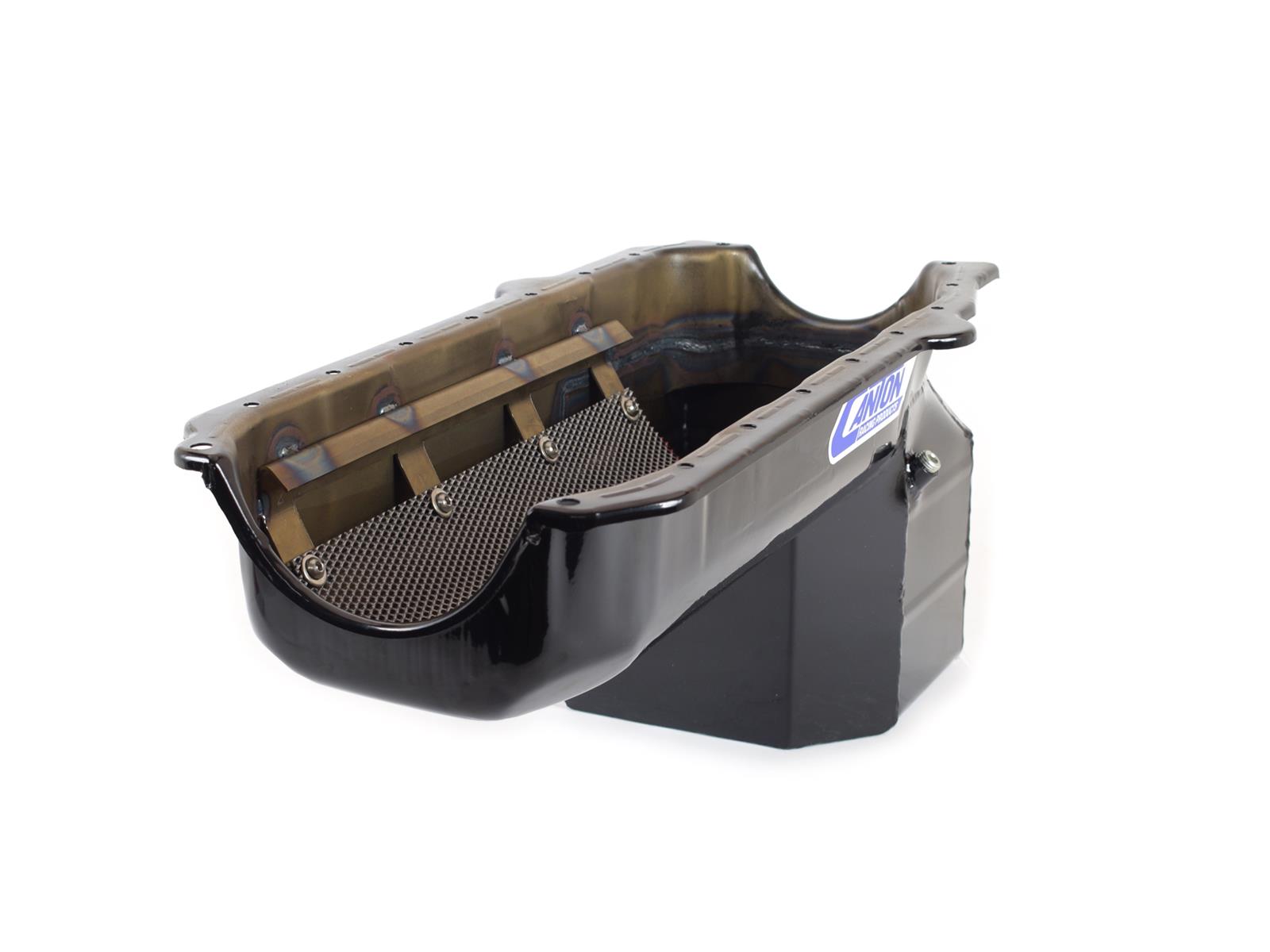

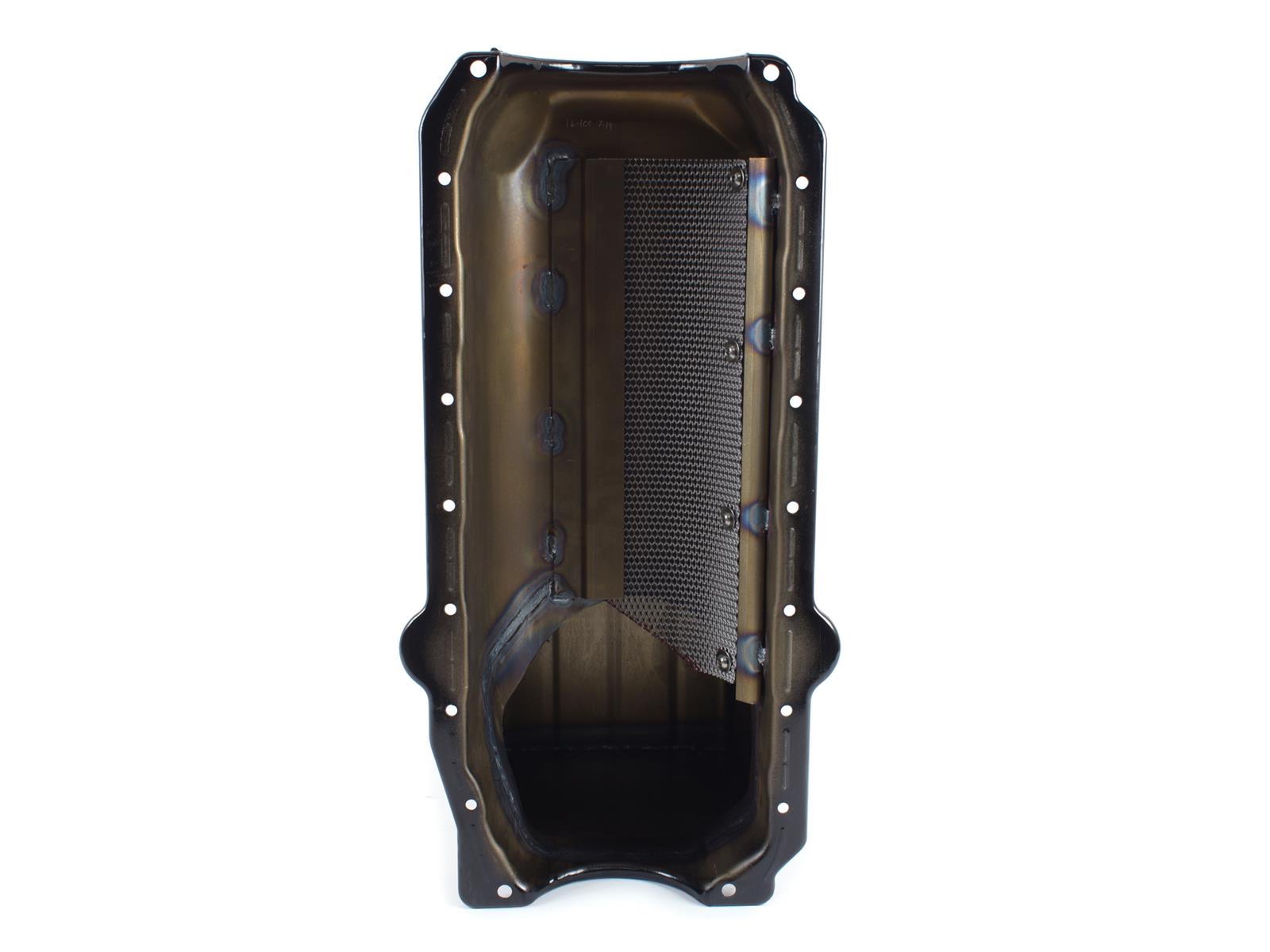

Canton Racing Truck Series oil pans are designed for severe-duty use. The pans feature a deep sump design, which keeps more oil stacked over the pickup, making it harder for air to be pulled by the pickup, even under very rough conditions. Select models are built with horizontal baffling to contain the oil in the sump while off-roading, and with extra capacity to promote better cooling, which is essential in high-load, low-speed driving. Truck Series oil pans come in a variety of applications to suit your needs. From sand-drags, to rock crawlers, and high performance street use, Canton Racing has you covered!
Additional Information
ADD-ON SALE...CAN 20-850 DIPSTICK REQUIRED FOR THIS PAN RIGHT OR LEFT HAND BLOCKS, DIP STICK MOUNTS INTO PAN.
Part Type
S-10 V-8 4x4 Oil Pan 7qts 10in Deep
Specifications
- Product Attributes - Brand
- Canton Racing Products
- Product Attributes - Manufacturer's Part Number
- 16-100
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Canton Racing Truck Wet Sump Pans
- Product Attributes - UPC
- 887753714077
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Rear Main Seal Style
- 2-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 6.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 3.875 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No

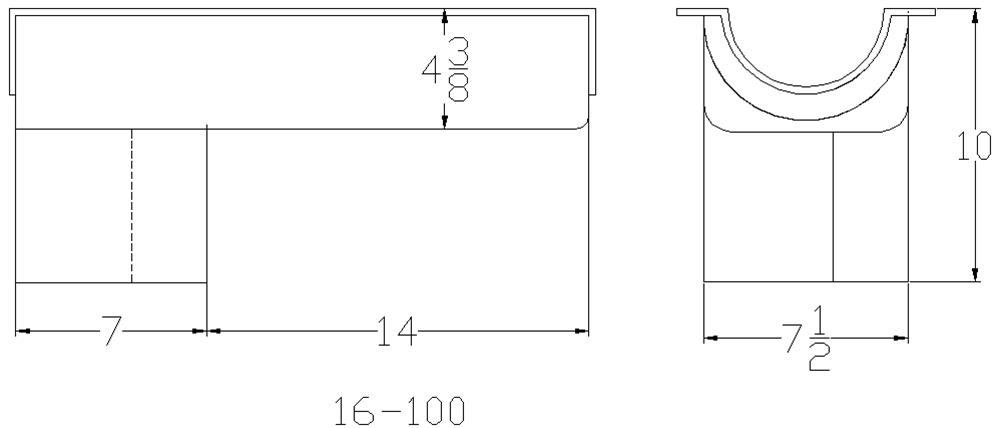

- Product Attributes - Oil Pan Depth (in.)
- 10.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- Yes
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and earlier 2-piece rear main seal blocks. Designed to install a small block Chevy into S-series pickups or SUVs when used in conjunction with Hooker engine mounts and headers.
Reference Information
| Brand Name/s | Canton Racing Products |
|---|---|
| StreetFX SKU | ctr16-100 |
| SFX Item ID | 5052423 |
| Supplier Item Code | 5052423 |
| Manufacturer SKU | 16-100 |
| Manufacturer UPC | 887753714077 |
| Alternative References | CAN16-100, 4WD |
