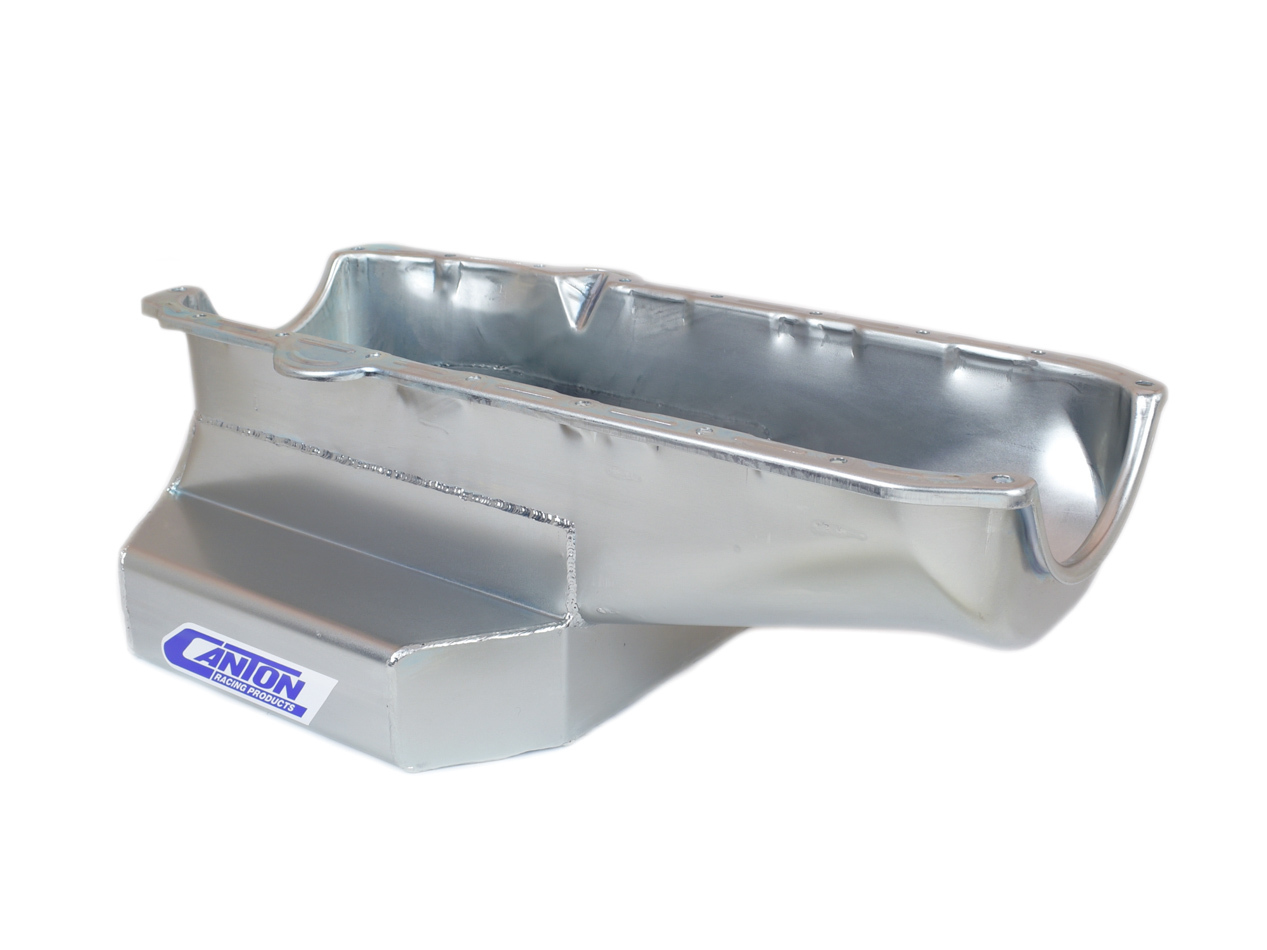

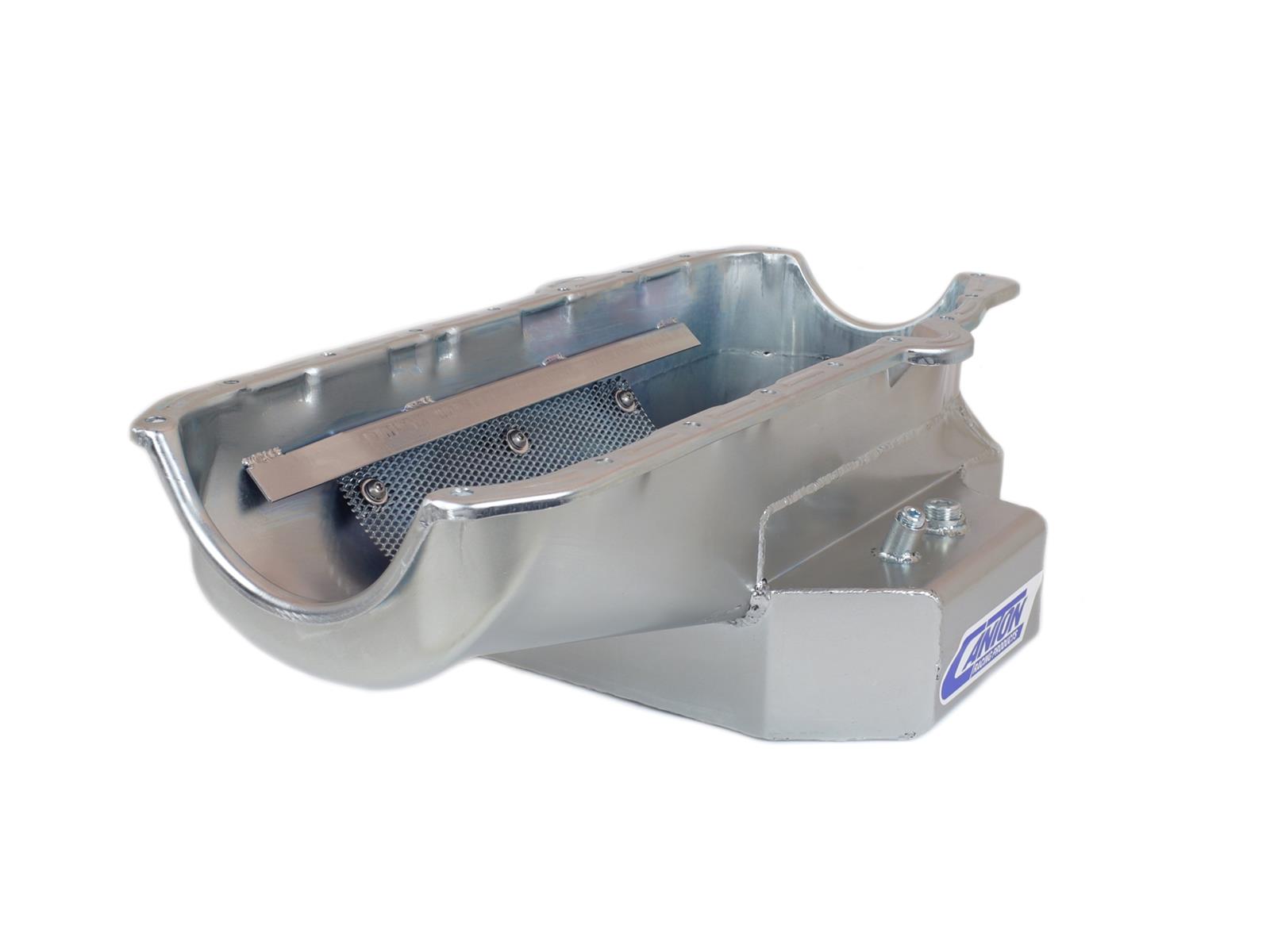

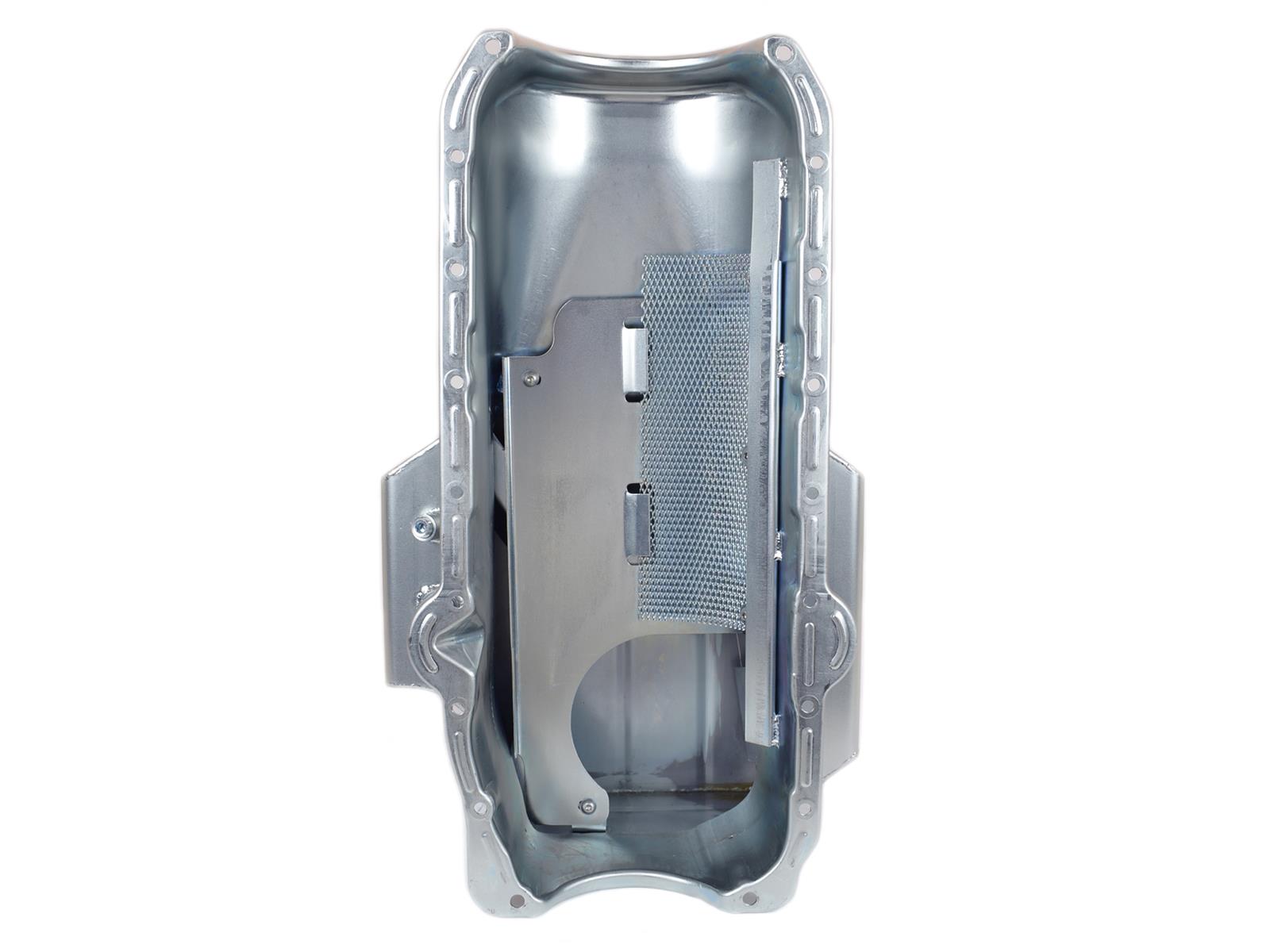

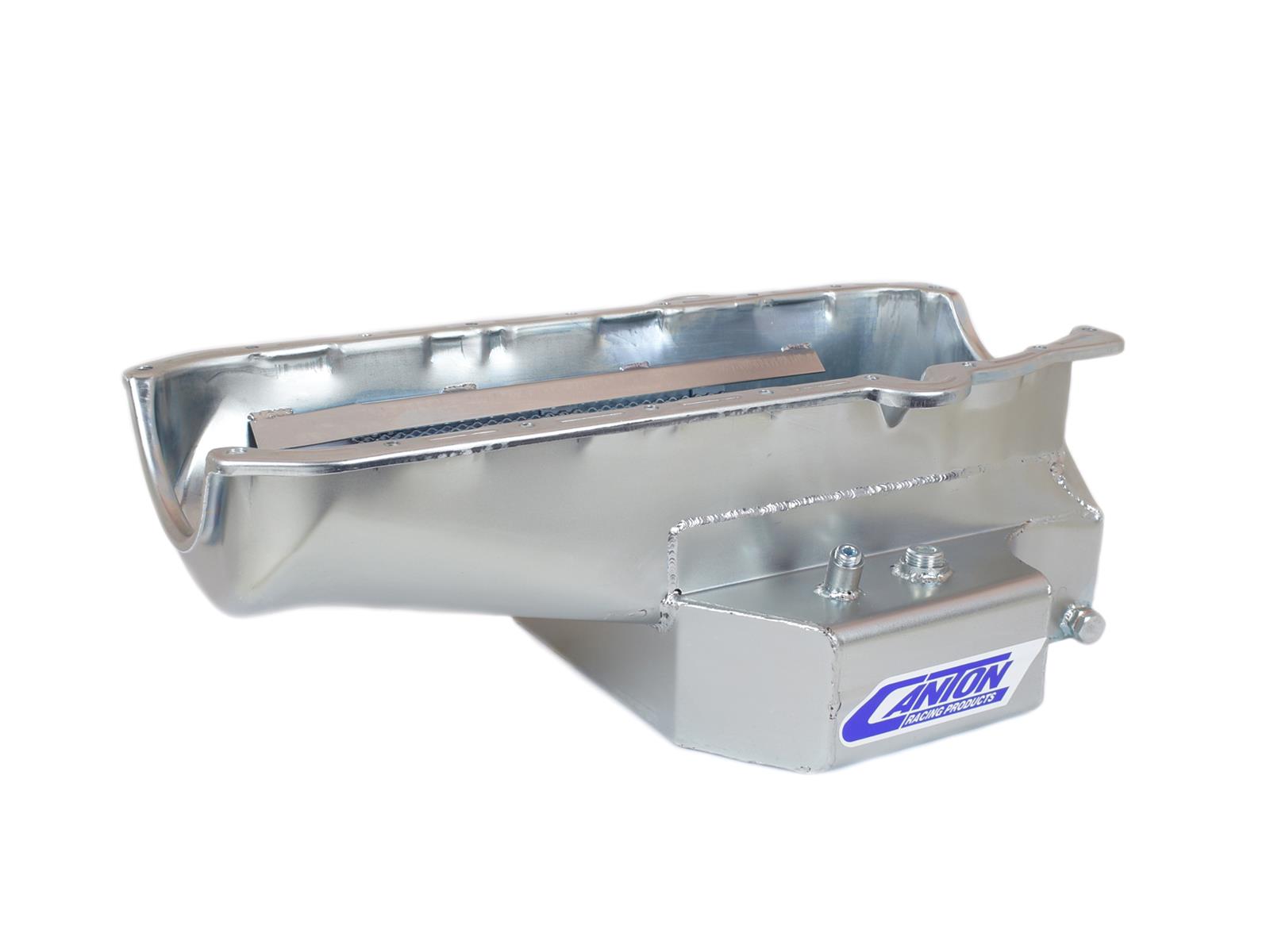

Canton Racing Road Race Series Wet Sump Oil Pans 15-260 Pan, Race, Steel, 7 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-260

Oil Pans
Canton Racing Road Race Series Wet Sump Oil Pans 15-260 Pan, Race, Steel, 7 qt., Rear Sump, Chevy, Small Block, Each

Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans 15-260 Pan, Race, Steel, 7 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-260

Oil Pans
A$1,395.28
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.

Part Type

7-1/2 SBC Road Race Oil Pan

Data: v4.2 - Upd: 2026-10-16 05:09:43

Specifications

Product Attributes - Brand
Canton Racing Products
Product Attributes - Manufacturer's Part Number
15-260
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Canton Racing Road Race Series Wet Sump Oil Pans
Product Attributes - UPC
887753712301
Product Attributes - Sump Style
Wet
Product Attributes - Oil Pan Style
Road Race
Product Attributes - Rear Main Seal Style
2-piece
Product Attributes - Sump Location
Rear
Product Attributes - Dipstick Location
Driver side
Product Attributes - Oil Pan Capacity
7.00 quarts
Product Attributes - Stroker Clearanced
No
Product Attributes - Maximum Stroke with OE Rod
3.750 in.
Product Attributes - Dipstick Provision
Yes
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Depth (in.)
7.500
Product Attributes - Oil Pan Material
Steel
Product Attributes - Oil Pan Color
Silver
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
Yes
Product Attributes - Kickout Position
Driver and passenger side
Product Attributes - Windage Tray Included
Yes
Product Attributes - Pickup Included
No
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
Yes
Product Attributes - Drain Plug Thread Size
1/2 in.-20
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
System capacity is 8 quarts, which is oil pan capacity plus filter. Sump dimensions are 7 1/2 in. deep, 13 3/4 in. wide, and 12 in. long. Designed to fit most applications, including front steer chassis with aftermarket or Camaro front-ends. May not fit 4WD models due to the oil pan kickout.

Reference Information

Brand Name/s Canton Racing Products
StreetFX SKU ctr15-260
SFX Item ID 5052312
Supplier Item Code 5052312
Manufacturer SKU 15-260
Manufacturer UPC 887753712301
Alternative References CAN15-260

Compatibility

Application Data
  • MakeBUICK
    Beginning Year1977
    Ending Year1980
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1955
    Ending Year1957
    Engine TypeV8
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1957
    Ending Year1967
    Engine TypeV8
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1964
    Ending Year1967
    Engine TypeV8
    Engine Size5.3L/327
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1964
    Ending Year1967
    Engine TypeV8
    Engine Size5.4L/327
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1968
    Ending Year1973
    Engine TypeV8
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1968
    Ending Year1980
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1976
    Engine TypeV8
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1975
    Ending Year1976
    Engine TypeV8
    Engine Size4.3L/262
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1976
    Ending Year1980
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1979
    Ending Year1980
    Engine TypeV8
    Engine Size4.4L/267
    Engine FamilyChevy small block Gen I
  • MakeOLDSMOBILE
    Beginning Year1977
    Ending Year1980
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakePONTIAC
    Beginning Year1971
    Ending Year1973
    Engine TypeV8
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
  • MakePONTIAC
    Beginning Year1977
    Ending Year1980
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelLT
    Beginning Year1976
    Ending Year1976
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN CodeQ
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelLT
    Beginning Year1976
    Ending Year1976
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN CodeL
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1956
    Ending Year1956
    Engine TypeV8
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1957
    Ending Year1961
    Engine TypeV8
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1962
    Ending Year1964
    Engine TypeV8
    Engine Size5.3L/327
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1977
    Ending Year1977
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN CodeX
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1977
    Ending Year1979
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN CodeL
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1979
    Ending Year1979
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN Code4
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1979
    Ending Year1979
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN Code8
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelINDIANAPOLIS 500 PACE CAR
    Beginning Year1978
    Ending Year1978
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN Code4
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelSILVER ANNIVERSARY EDITION
    Beginning Year1978
    Ending Year1978
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block Pre-80 w/Left Side Dipstick;
    Engine VIN Code4
