Canton Racing Products

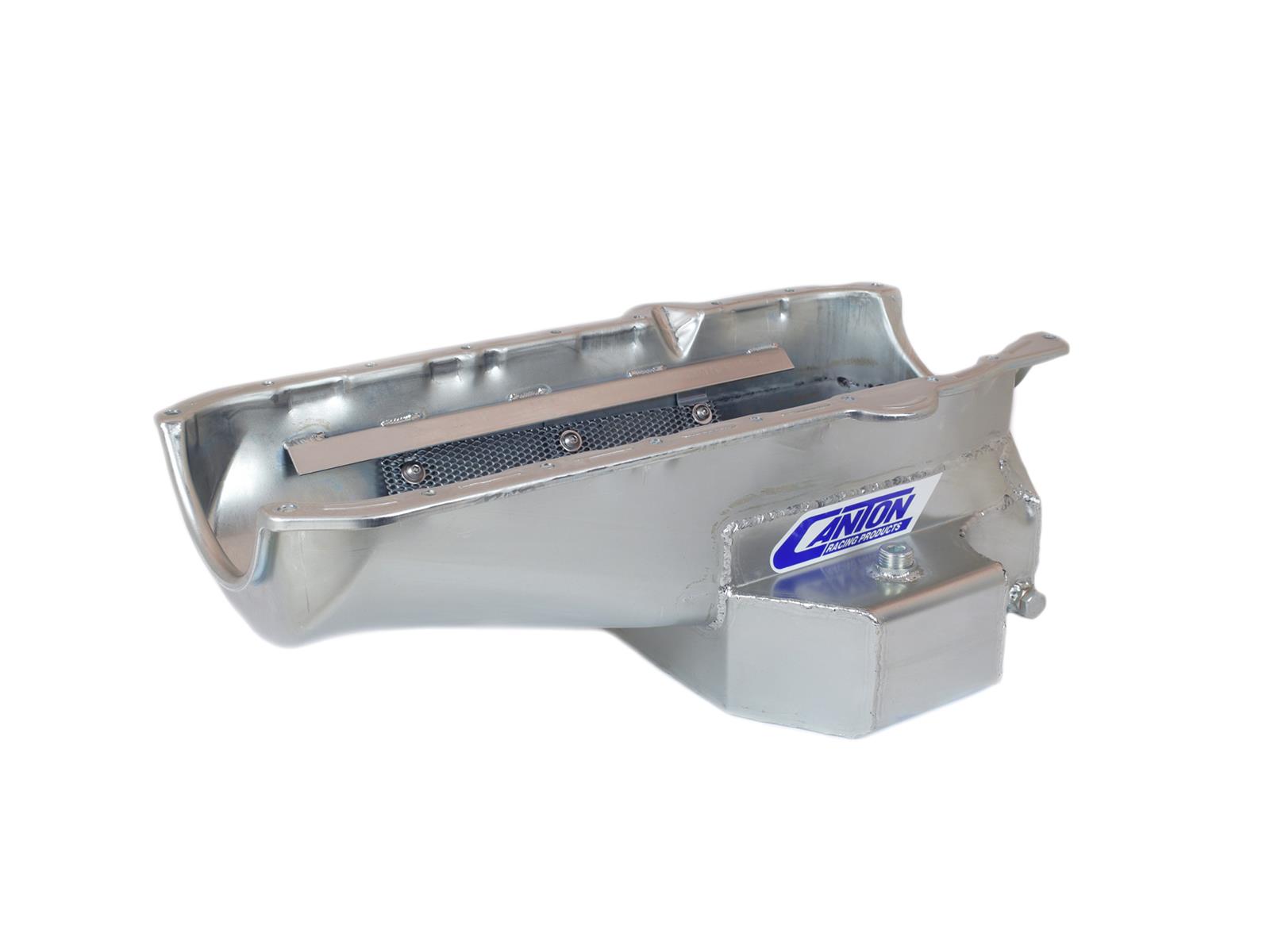

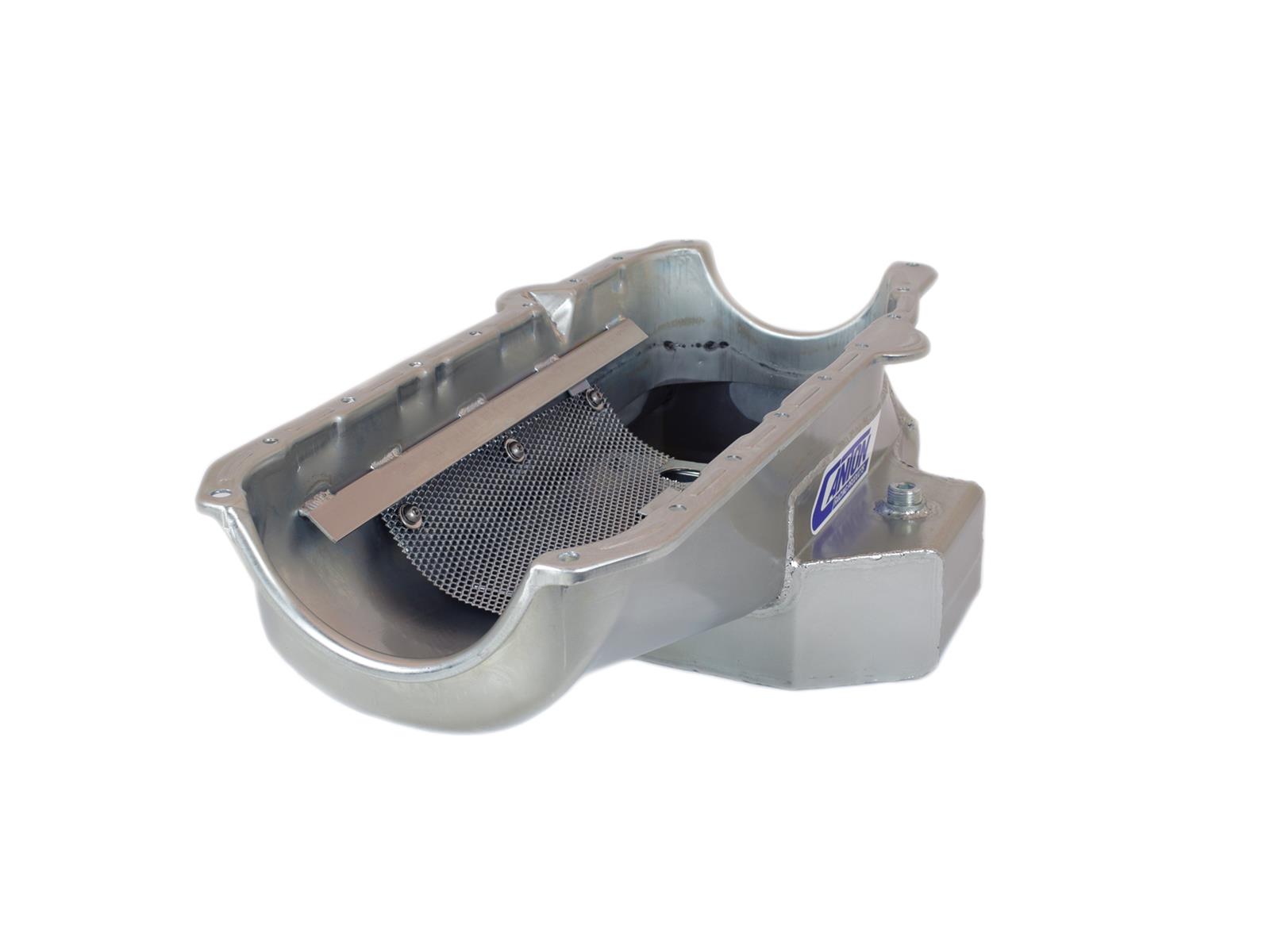

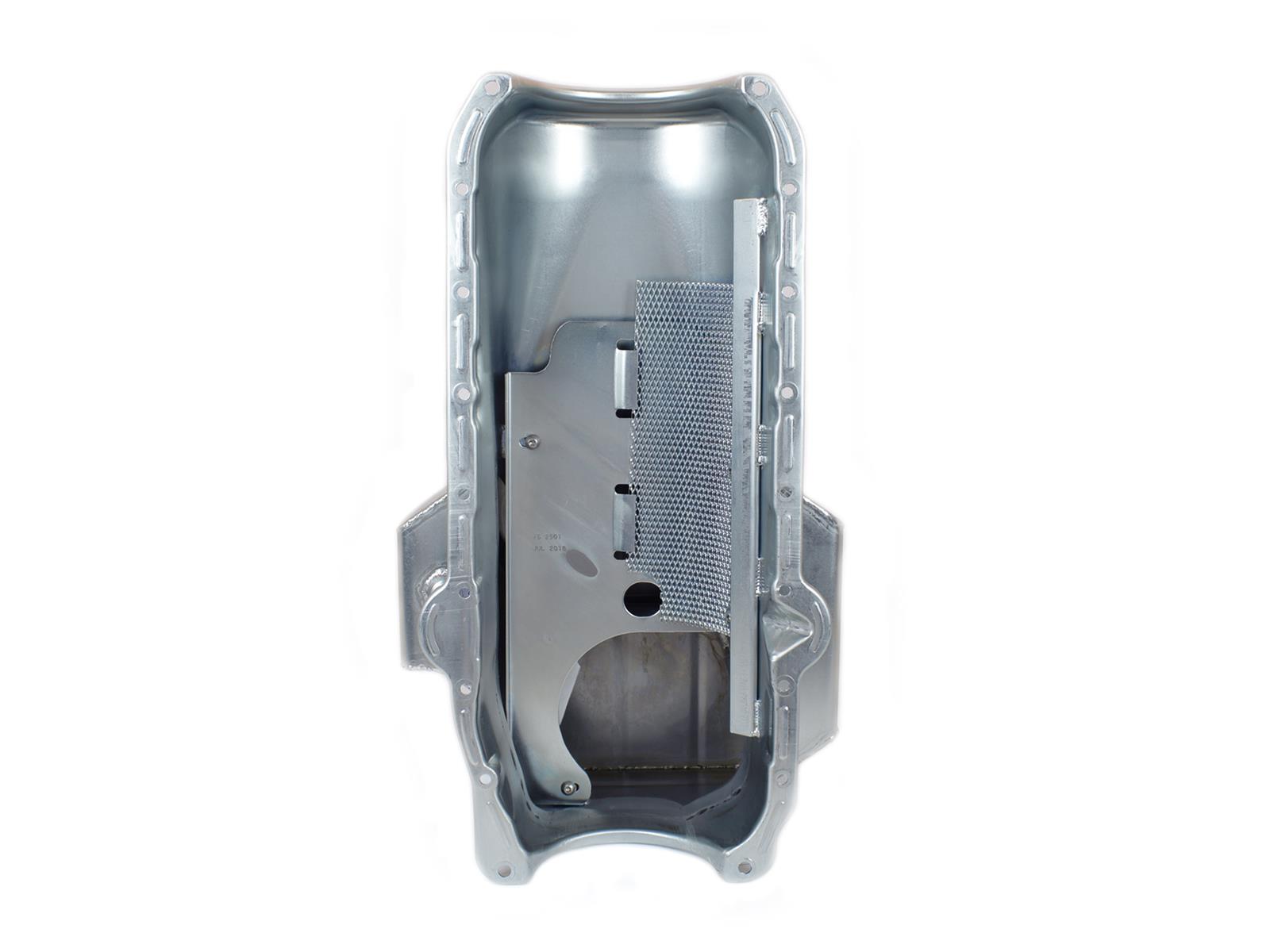

Canton Racing Road Race Series Wet Sump Oil Pans 15-250T Pan, Race, Steel, 6 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-250T

Oil Pans
Canton Racing Road Race Series Wet Sump Oil Pans 15-250T Pan, Race, Steel, 6 qt., Rear Sump, Chevy, Small Block, Each

Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans 15-250T Pan, Race, Steel, 6 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-250T

Oil Pans
A$1,280.12
LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.

Part Type

SBC R/R Oil Pan

Data: v4.2 - Upd: 2026-10-14 09:21:50

Specifications

Product Attributes - Brand
Canton Racing Products
Product Attributes - Manufacturer's Part Number
15-250T
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Canton Racing Road Race Series Wet Sump Oil Pans
Product Attributes - UPC
887753712288
Product Attributes - Sump Style
Wet
Product Attributes - Oil Pan Style
Road Race
Product Attributes - Rear Main Seal Style
1-piece
Product Attributes - Sump Location
Rear
Product Attributes - Dipstick Location
Passenger side
Product Attributes - Oil Pan Capacity
6.00 quarts
Product Attributes - Stroker Clearanced
No
Product Attributes - Maximum Stroke with OE Rod
3.750 in.
Product Attributes - Dipstick Provision
Yes
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Depth (in.)
7.500
Product Attributes - Oil Pan Material
Steel
Product Attributes - Oil Pan Color
Silver
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
Yes
Product Attributes - Kickout Position
Driver and passenger side
Product Attributes - Windage Tray Included
Yes
Product Attributes - Pickup Included
No
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
Yes
Product Attributes - Drain Plug Thread Size
1/2 in.-20
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.

Reference Information

Brand Name/s Canton Racing Products
StreetFX SKU ctr15-250T
SFX Item ID 5052363
Supplier Item Code 5052363
Manufacturer SKU 15-250T
Manufacturer UPC 887753712288
Alternative References CAN15-250T

Compatibility

Application Data
  • MakeCHEVROLET
    ModelCAMARO
    Beginning Year1978
    Ending Year1981
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesCannot be used with stock-style crossover exhaust. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeCHEVROLET
    ModelCAMARO
    Beginning Year1978
    Ending Year1981
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesCannot be used with stock-style crossover exhaust. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeCHEVROLET
    ModelMALIBU
    Beginning Year1978
    Ending Year1983
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeCHEVROLET
    ModelMALIBU
    Beginning Year1978
    Ending Year1983
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeCHEVROLET
    ModelMONTE CARLO
    Beginning Year1978
    Ending Year1987
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeCHEVROLET
    ModelMONTE CARLO
    Beginning Year1978
    Ending Year1987
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeOLDSMOBILE
    ModelCUTLASS
    Beginning Year1978
    Ending Year1987
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeOLDSMOBILE
    ModelCUTLASS
    Beginning Year1978
    Ending Year1987
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakePONTIAC
    ModelBONNEVILLE
    Beginning Year1984
    Ending Year1986
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakePONTIAC
    ModelBONNEVILLE
    Beginning Year1984
    Ending Year1986
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakePONTIAC
    ModelFIREBIRD
    Beginning Year1978
    Ending Year1981
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesCannot be used with stock-style crossover exhaust. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakePONTIAC
    ModelFIREBIRD
    Beginning Year1978
    Ending Year1981
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesCannot be used with stock-style crossover exhaust. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal.
  • MakeBUICK
    ModelROADMASTER
    SubmodelBASE
    Beginning Year1992
    Ending Year1993
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code7
  • MakeBUICK
    ModelROADMASTER
    SubmodelESTATE WAGON
    Beginning Year1991
    Ending Year1991
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN CodeE
  • MakeBUICK
    ModelROADMASTER
    SubmodelESTATE WAGON
    Beginning Year1992
    Ending Year1993
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code7
  • MakeBUICK
    ModelROADMASTER
    SubmodelLIMITED
    Beginning Year1992
    Ending Year1993
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code7
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelIROC-Z
    Beginning Year1990
    Ending Year1990
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN CodeF
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelIROC-Z
    Beginning Year1990
    Ending Year1990
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code8
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28
    Beginning Year1991
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN CodeF
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28
    Beginning Year1991
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code8
  • MakeCHEVROLET
    ModelCAPRICE
    SubmodelBASE
    Beginning Year1991
    Ending Year1991
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN CodeE
  • MakeCHEVROLET
    ModelCAPRICE
    SubmodelBASE
    Beginning Year1991
    Ending Year1991
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code7
  • MakeCHEVROLET
    ModelCAPRICE
    SubmodelCLASSIC
    Beginning Year1991
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN CodeE
  • MakeCHEVROLET
    ModelCAPRICE
    SubmodelCLASSIC
    Beginning Year1991
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN Code7
  • MakeCHEVROLET
    ModelCAPRICE
    SubmodelCLASSIC BROUGHAM
    Beginning Year1989
    Ending Year1990
    Engine TypeV8
    Engine Size5.0L/305
    DrivetrainRWD
    Engine FamilyChevy small block Gen I
    Application NotesStreet/Strip/Road Race Oil Pan; 7 Qt.; 7.5 in. Deep/W-13.75 in./L-10.5 in. Sump; Chevy Small Block 86 And Newer w/1 pc. Seal;
    Engine VIN CodeE

Loading compatibility information...
