Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans for 1982-1992 CAMARO, FIREBIRD - 15-244 Pan, Race, Steel, 5 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-244

Oil Pans
Canton Racing Road Race Series Wet Sump Oil Pans for 1982-1992 CAMARO, FIREBIRD - 15-244 Pan, Race, Steel, 5 qt., Rear Sump, Chevy, Small Block, Each

Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans for 1982-1992 CAMARO, FIREBIRD - 15-244 Pan, Race, Steel, 5 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-244

Oil Pans
A$1,303.57
LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

IMPORTANT NOTICE: System capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.

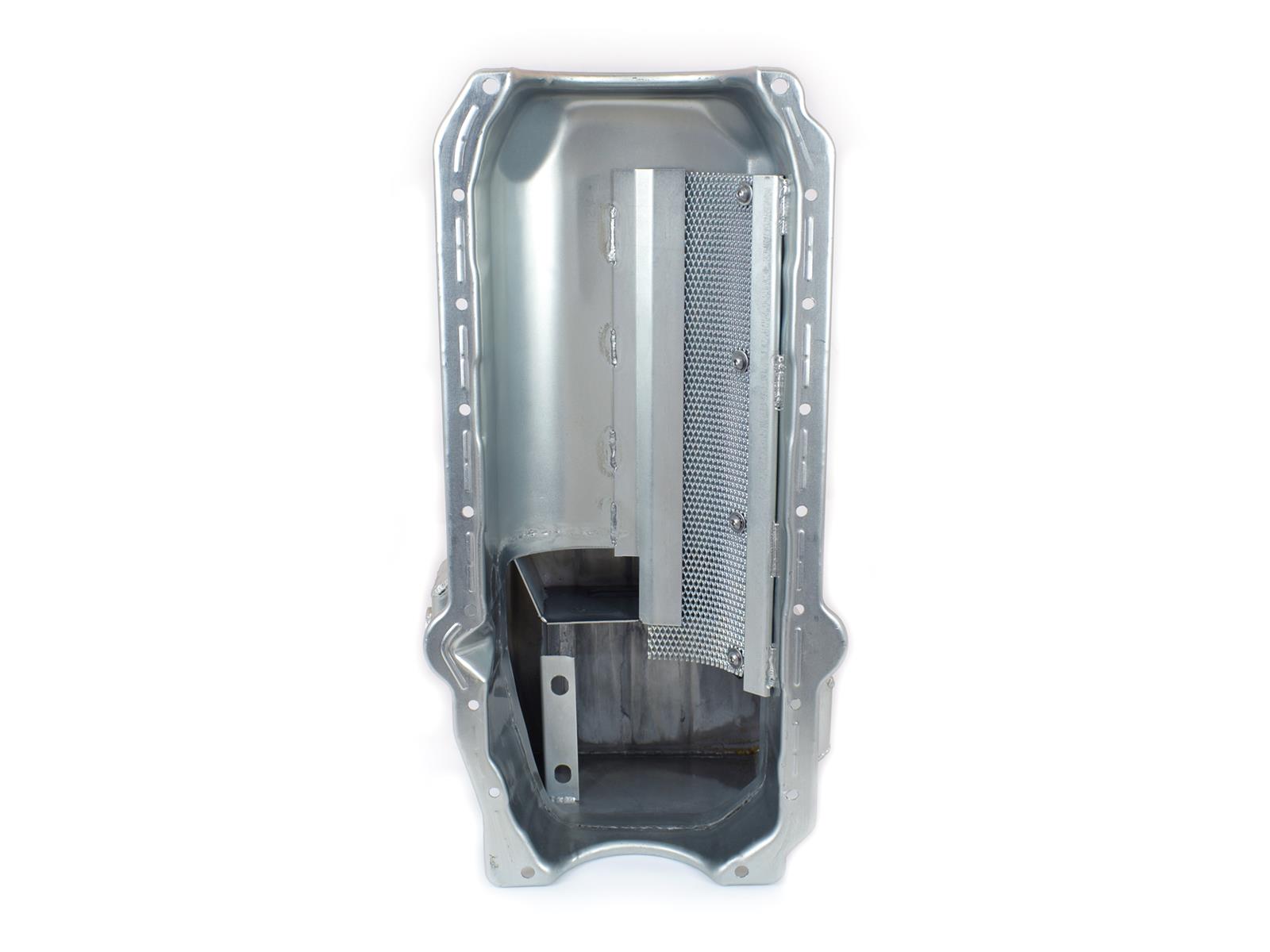

No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.

Part Type

SBC R/R Oil Pan

Data: v4.2 - Upd: 2026-10-14 09:21:51

Specifications

Product Attributes - Brand
Canton Racing Products
Product Attributes - Manufacturer's Part Number
15-244
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Canton Racing Road Race Series Wet Sump Oil Pans
Product Attributes - UPC
887753712202
Product Attributes - Sump Style
Wet
Product Attributes - Oil Pan Style
Road Race
Product Attributes - Rear Main Seal Style
2-piece
Product Attributes - Sump Location
Rear
Product Attributes - Dipstick Location
Driver side
Product Attributes - Oil Pan Capacity
5.00 quarts
Product Attributes - Stroker Clearanced
Yes
Product Attributes - Maximum Stroke with OE Rod
3.875 in.
Product Attributes - Dipstick Provision
Yes
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Depth (in.)
7.500
Product Attributes - Oil Pan Material
Steel
Product Attributes - Oil Pan Color
Silver
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
Yes
Product Attributes - Kickout Position
Driver and passenger side
Product Attributes - Windage Tray Included
Yes
Product Attributes - Pickup Included
No
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
Yes
Product Attributes - Drain Plug Thread Size
1/2 in.-20
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
System capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.

Reference Information

Brand Name/s Canton Racing Products
StreetFX SKU ctr15-244
SFX Item ID 5052200
Supplier Item Code 5052200
Manufacturer SKU 15-244
Manufacturer UPC 887753712202
Alternative References CAN15-244

Compatibility

Application Data
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelBASE
    Beginning Year1988
    Ending Year1988
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelBERLINETTA
    Beginning Year1982
    Ending Year1986
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelIROC-Z
    Beginning Year1985
    Ending Year1990
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelIROC-Z
    Beginning Year1987
    Ending Year1990
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelLT
    Beginning Year1987
    Ending Year1987
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelRS
    Beginning Year1989
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelRS HERITAGE EDITION
    Beginning Year1992
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelSPORT
    Beginning Year1982
    Ending Year1987
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28
    Beginning Year1982
    Ending Year1987
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28
    Beginning Year1991
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28
    Beginning Year1991
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28 HERITAGE EDITION
    Beginning Year1992
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28 HERITAGE EDITION
    Beginning Year1992
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28 INDIANAPOLIS 500 PACE CAR
    Beginning Year1982
    Ending Year1982
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelBASE
    Beginning Year1982
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelBASE
    Beginning Year1987
    Ending Year1988
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelFORMULA
    Beginning Year1989
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelFORMULA
    Beginning Year1989
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelS/E
    Beginning Year1982
    Ending Year1986
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelTRANS AM
    Beginning Year1982
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelTRANS AM
    Beginning Year1987
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelTRANS AM GTA
    Beginning Year1989
    Ending Year1992
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelTRANS AM GTA
    Beginning Year1989
    Ending Year1992
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSystem capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1979 and earlier blocks with driver side dipstick. Includes a 20mm fitting for a low oil warning sender.
