Canton Racing Road Race Series Wet Sump Oil Pans for 1993-1997 CAMARO, FIREBIRD, 1994-1996 IMPALA - 15-242T Pan, Race, Steel, 5 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-242T

Oil Pans
Canton Racing Road Race Series Wet Sump Oil Pans for 1993-1997 CAMARO, FIREBIRD, 1994-1996 IMPALA - 15-242T Pan, Race, Steel, 5 qt., Rear Sump, Chevy, Small Block, Each

Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans for 1993-1997 CAMARO, FIREBIRD, 1994-1996 IMPALA - 15-242T Pan, Race, Steel, 5 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-242T

Oil Pans
A$1,388.71
LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

IMPORTANT NOTICE: System capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal. Includes a 20mm fitting for a low oil warning sender.

No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.

Part Type

SBC R/R Oil Pan - 93-97 GM F-Body

Data: v4.2 - Upd: 2026-10-14 09:21:51

Specifications

Product Attributes - Brand
Canton Racing Products
Product Attributes - Manufacturer's Part Number
15-242T
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Canton Racing Road Race Series Wet Sump Oil Pans
Product Attributes - UPC
887753712189
Product Attributes - Sump Style
Wet
Product Attributes - Oil Pan Style
Road Race
Product Attributes - Rear Main Seal Style
1-piece
Product Attributes - Sump Location
Rear
Product Attributes - Dipstick Location
Passenger side
Product Attributes - Oil Pan Capacity
6.00 quarts
Product Attributes - Stroker Clearanced
Yes
Product Attributes - Maximum Stroke with OE Rod
3.750 in.
Product Attributes - Dipstick Provision
Yes
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Depth (in.)
7.500
Product Attributes - Oil Pan Material
Steel
Product Attributes - Oil Pan Color
Silver
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
Yes
Product Attributes - Kickout Position
Driver and passenger side
Product Attributes - Windage Tray Included
Yes
Product Attributes - Pickup Included
No
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
Yes
Product Attributes - Drain Plug Thread Size
1/2 in.-20
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
System capacity is 6 quarts, which is oil pan capacity plus filter. Designed for 1986 and later blocks with 1-piece rear main seal. Includes a 20mm fitting for a low oil warning sender.

Reference Information

Brand Name/s Canton Racing Products
StreetFX SKU ctr15-242T
SFX Item ID 5052155
Supplier Item Code 5052155
Manufacturer SKU 15-242T
Manufacturer UPC 887753712189
Alternative References CAN15-242T

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1986
    Ending Year2002
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1986
    Ending Year2002
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelCAMARO
    Beginning Year1993
    Ending Year1997
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Application NotesMust use 1986-2002 block.
  • MakeCHEVROLET
    ModelIMPALA
    Beginning Year1994
    Ending Year1996
    Engine TypeV8
    Engine FamilyChevy small block Gen II (LT-based engines)
    Application NotesMust use 1986-2002 block.
  • MakePONTIAC
    ModelFIREBIRD
    Beginning Year1993
    Ending Year1997
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Application NotesMust use 1986-2002 block.
  • MakeCHEVROLET
    ModelIMPALA
    SubmodelSS
    Beginning Year1994
    Ending Year1996
    Engine TypeV8
    Engine Size5.7L/350
    DrivetrainRWD
    Engine FamilyChevy small block Gen II (LT-based engines)

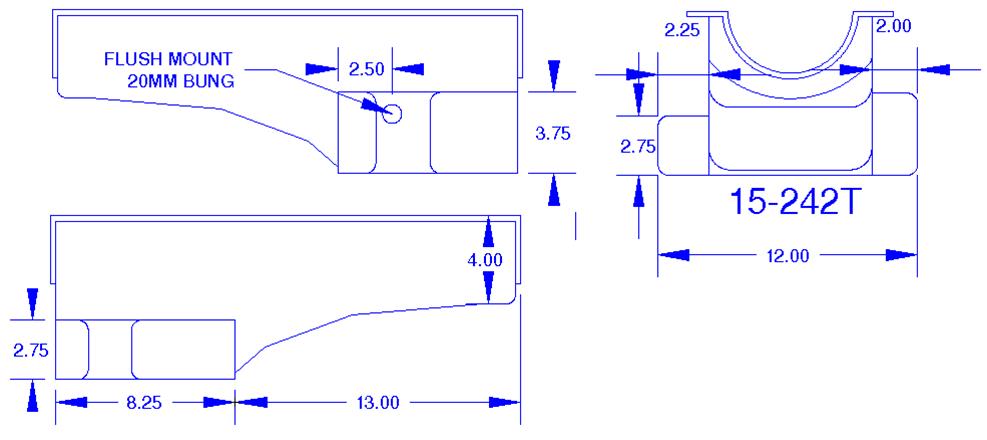

    Application NotesStreet/Strip/Road Race Oil Pan; 6 Qt.; 7.5 in. Deep/W-12 in./L-8.25 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug/Windage Tray; Chevy 86 And Newer F-Body Small Block;
    Engine VIN CodeP
