Canton Racing Products

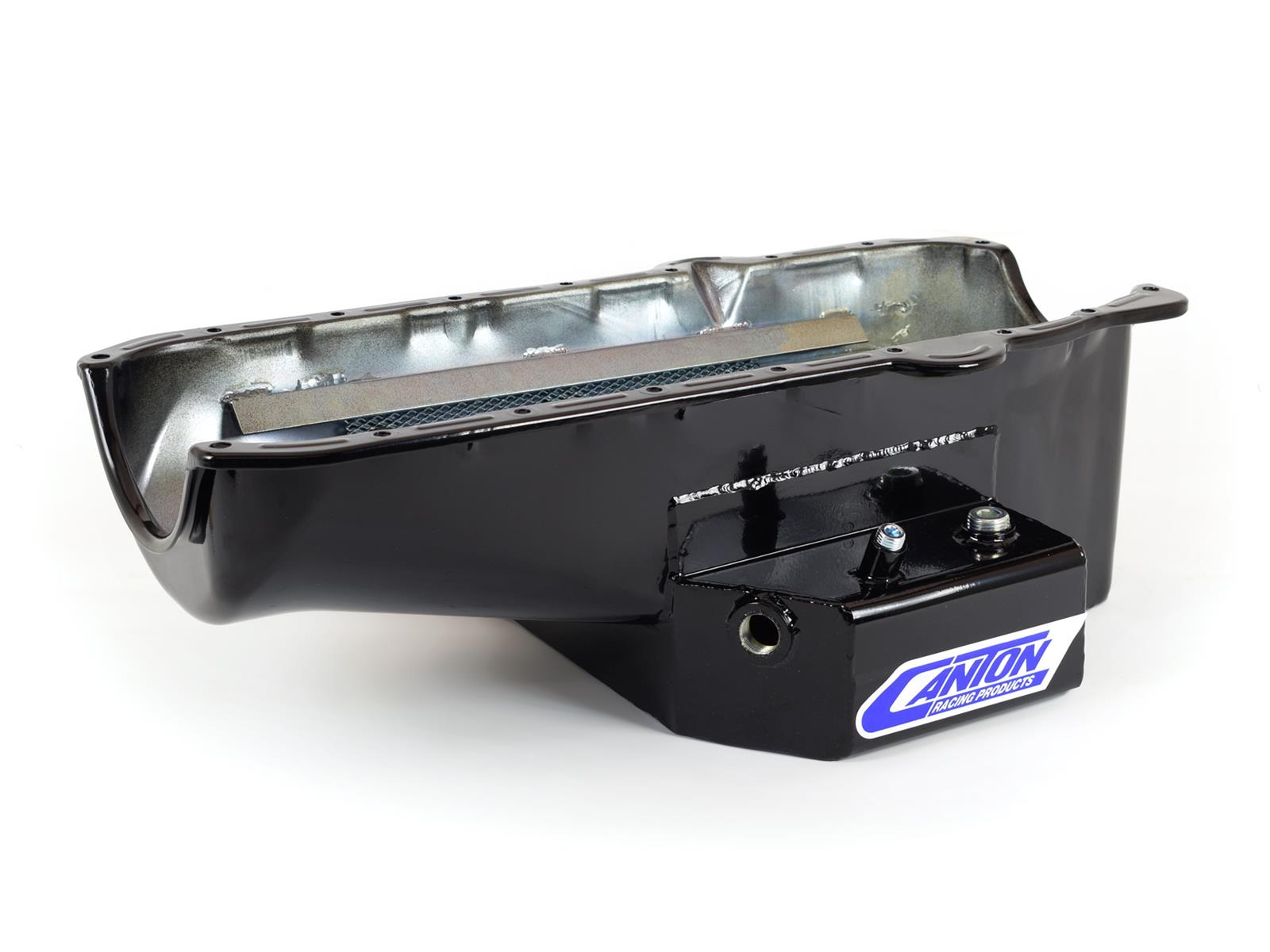

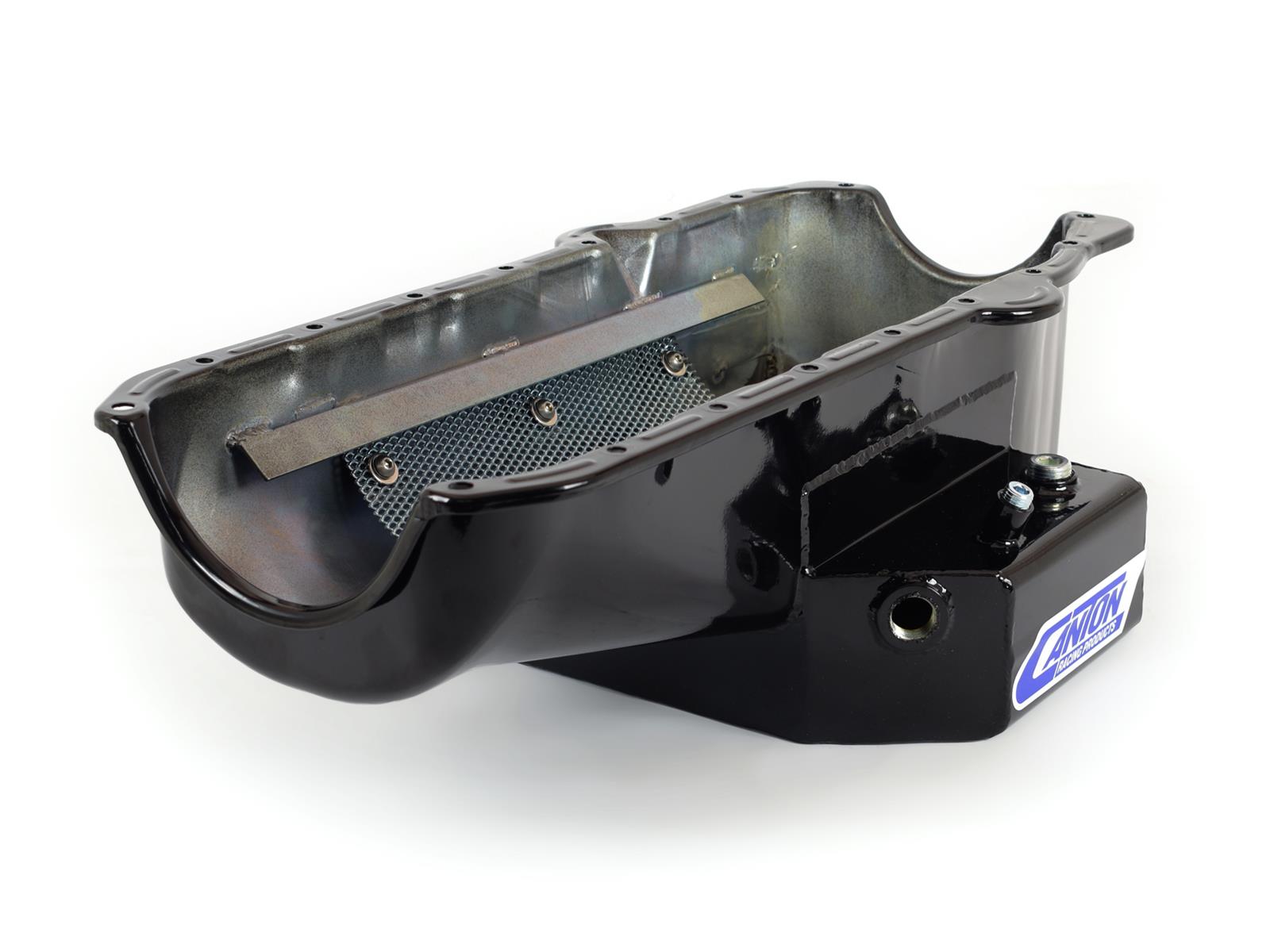

Canton Racing Road Race Series Wet Sump Oil Pans for 1984-1991 CORVETTE - 15-240MBLK Pan, Sump, Steel, Black Powdercoated, Rear Sump, 6 Qt., 3.75 in. Stroke, Passenger Side Dipstick, Chevy, Small Block, Each

SKU: CTR15-240MBLK

Oil Pans
Canton Racing Road Race Series Wet Sump Oil Pans for 1984-1991 CORVETTE - 15-240MBLK Pan, Sump, Steel, Black Powdercoated, Rear Sump, 6 Qt., 3.75 in. Stroke, Passenger Side Dipstick, Chevy, Small Block, Each

Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans for 1984-1991 CORVETTE - 15-240MBLK Pan, Sump, Steel, Black Powdercoated, Rear Sump, 6 Qt., 3.75 in. Stroke, Passenger Side Dipstick, Chevy, Small Block, Each

SKU: CTR15-240MBLK

Oil Pans
A$1,492.91
BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

IMPORTANT NOTICE: Designed for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.

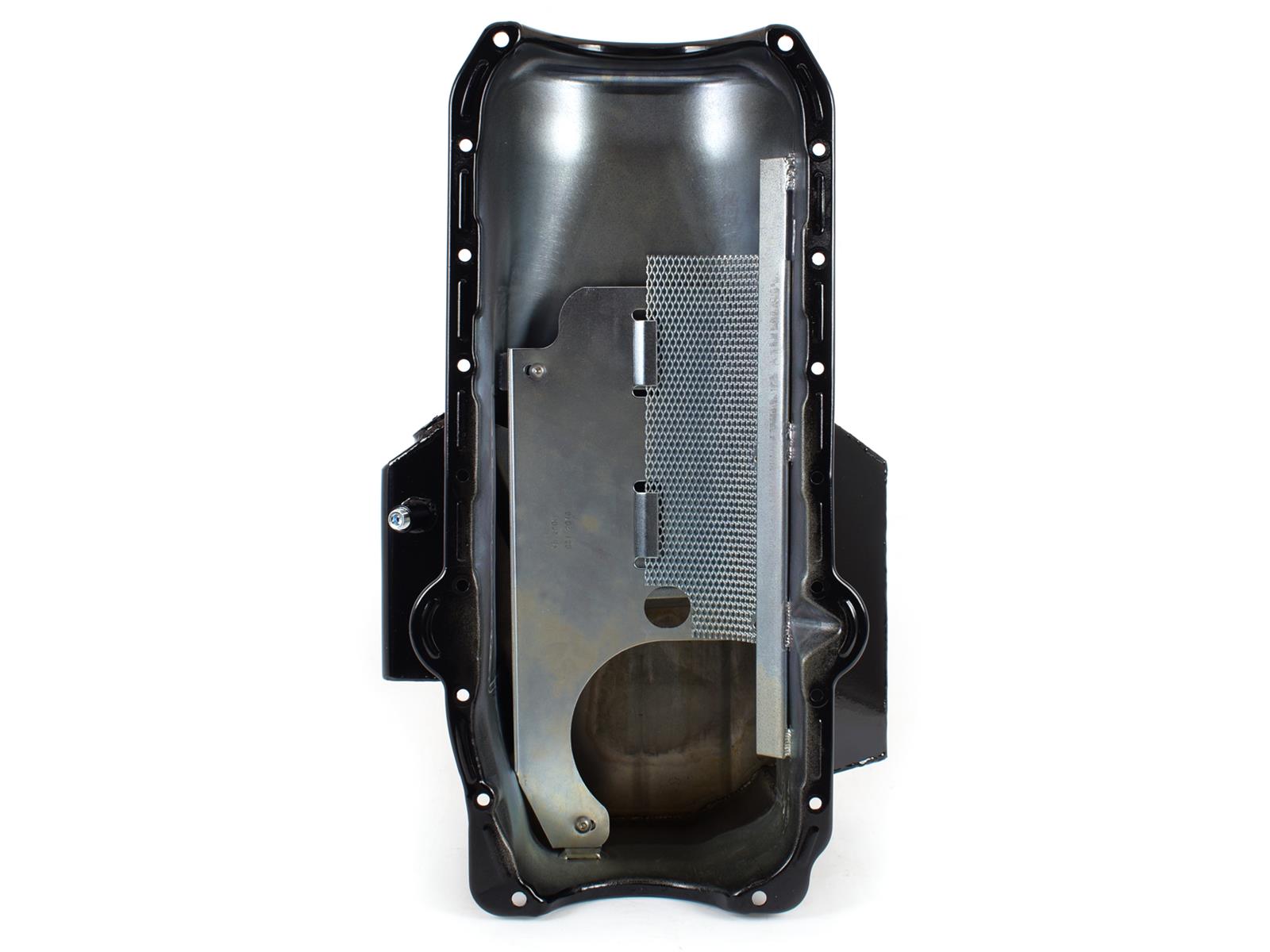

No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.

Part Type

Oil Pans

Data: v4.2 - Upd: 2026-09-27 15:35:48

Specifications

Product Attributes - Brand
Canton Racing Products
Product Attributes - Manufacturer's Part Number
15-240MBLK
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Canton Racing Road Race Series Wet Sump Oil Pans
Product Attributes - UPC
887753712158
Product Attributes - Sump Style
Wet
Product Attributes - Oil Pan Style
Road Race
Product Attributes - Rear Main Seal Style
2-piece
Product Attributes - Sump Location
Rear
Product Attributes - Dipstick Location
Passenger side
Product Attributes - Oil Pan Capacity
6.00 quarts
Product Attributes - Stroker Clearanced
No
Product Attributes - Maximum Stroke with OE Rod
3.750 in.
Product Attributes - Dipstick Provision
Yes
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Depth (in.)
7.000
Product Attributes - Oil Pan Material
Steel
Product Attributes - Oil Pan Color
Black
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
Yes
Product Attributes - Kickout Position
Driver and passenger side
Product Attributes - Windage Tray Included
Yes
Product Attributes - Pickup Included
No
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
Yes
Product Attributes - Drain Plug Thread Size
1/2 in.-20
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Designed for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.

Reference Information

Brand Name/s Canton Racing Products
StreetFX SKU ctr15-240MBLK
SFX Item ID 5052756
Supplier Item Code 5052756
Manufacturer SKU 15-240MBLK
Manufacturer UPC 887753712158

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1980
    Ending Year1982
    Engine TypeV8
    Engine Size4.4L/267
    Engine FamilyChevy small block Gen I
    Application NotesDesigned for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    Beginning Year1980
    Ending Year1985
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
    Application NotesDesigned for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    Beginning Year1980
    Ending Year1985
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesDesigned for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCORVETTE
    Submodel35TH ANNIVERSARY EDITION
    Beginning Year1988
    Ending Year1988
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesMust use 1980-1985 Chevrolet small block. Designed for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1984
    Ending Year1991
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesMust use 1980-1985 Chevrolet small block. Designed for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelINDIANAPOLIS 500 PACE CAR
    Beginning Year1986
    Ending Year1986
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesMust use 1980-1985 Chevrolet small block. Designed for 1984-1996 Corvette. System capacity is 7 quarts, which is oil pan capacity plus filter. Designed for 1980-85 blocks with passenger side dipstick. Includes a 20mm fitting for a low oil warning sender.
