Home / Shop / Canton Racing Road Race Series Wet Sump Oil Pans for 1975-1991 CORVETTE - 15-240 Pan, Race, Steel, 6 qt., Rear Sump, Chevy, Small Block, Each

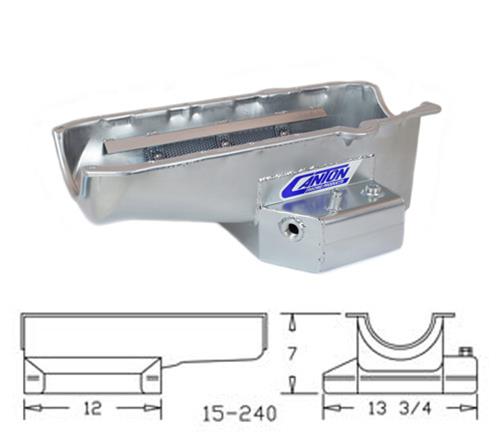

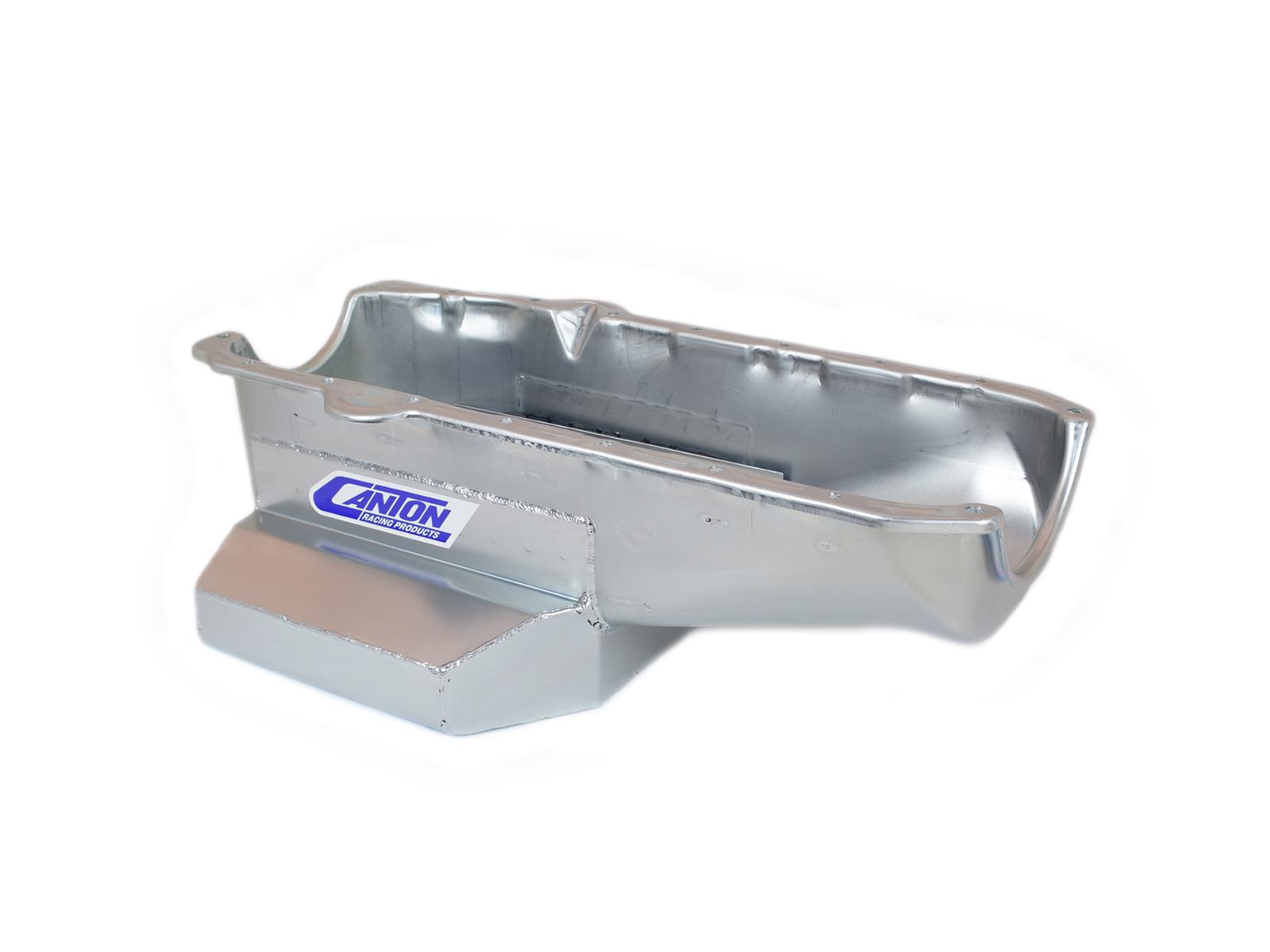

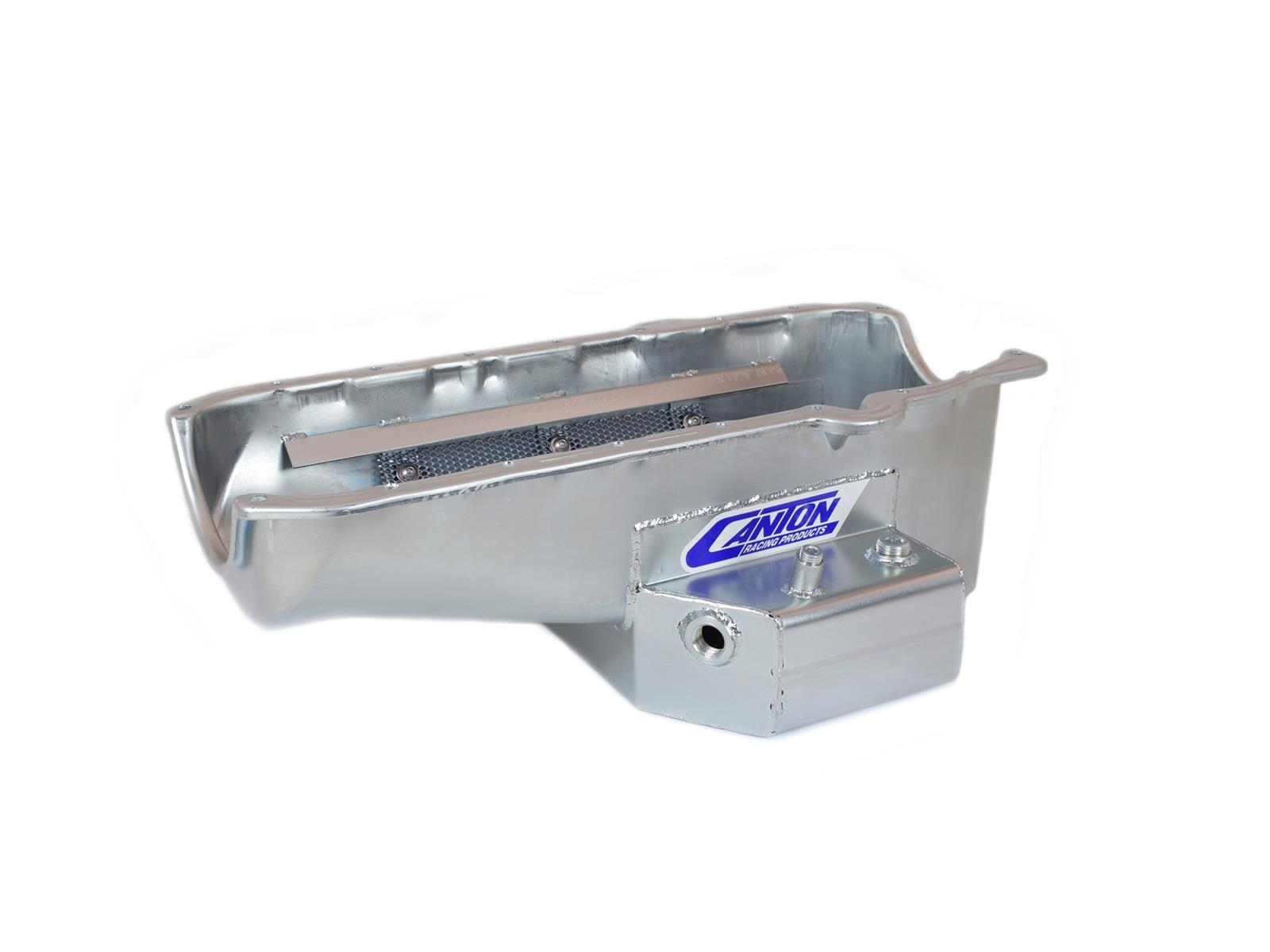

Canton Racing Road Race Series Wet Sump Oil Pans for 1975-1991 CORVETTE - 15-240 Pan, Race, Steel, 6 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-240

Oil Pans

Canton Racing Products

Canton Racing Road Race Series Wet Sump Oil Pans for 1975-1991 CORVETTE - 15-240 Pan, Race, Steel, 6 qt., Rear Sump, Chevy, Small Block, Each

SKU: CTR15-240

Oil Pans

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

IMPORTANT NOTICE: Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

No starvation! Canton Racing road race oil pans feature their competition baffling system of trap door baffles and/or slosh baffles. These systems flow oil to the pickup compartment and then keep it from flowing or sloshing away from the pickup during turns, acceleration, and braking. Their wide, low-profile sumps deliver maximum oil capacity and ground clearance. Many pans also include provisions for an optional pan mounted dipstick and a magnetic drain plug. Feed your engine with Canton Racing road race oil pans.

Part Type

SBC Vette Road Race Oil Pan - 2pc. Rear Main

Data: v4.2 - Upd: 2026-10-14 09:21:51

Specifications

Product Attributes - Brand: Canton Racing Products
Product Attributes - Manufacturer's Part Number: 15-240
Product Attributes - Part Type: Oil Pans
Product Attributes - Product Line: Canton Racing Road Race Series Wet Sump Oil Pans
Product Attributes - UPC: 887753712127
Product Attributes - Sump Style: Wet
Product Attributes - Oil Pan Style: Road Race
Product Attributes - Rear Main Seal Style: 2-piece
Product Attributes - Sump Location: Rear
Product Attributes - Dipstick Location: Driver side
Product Attributes - Oil Pan Capacity: 6.00 quarts
Product Attributes - Stroker Clearanced: No
Product Attributes - Maximum Stroke with OE Rod: 3.750 in.
Product Attributes - Dipstick Provision: Yes
Product Attributes - Dipstick Included: No
Product Attributes - Oil Pan Depth (in.): 7.000
Product Attributes - Oil Pan Material: Steel
Product Attributes - Oil Pan Color: Silver
Product Attributes - Baffled: Yes
Product Attributes - Kicked Out: Yes
Product Attributes - Kickout Position: Driver and passenger side
Product Attributes - Windage Tray Included: Yes
Product Attributes - Pickup Included: No
Product Attributes - Oil Pump Included: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - Crank Scraper Included: Yes
Product Attributes - Drain Plug Thread Size: 1/2 in.-20
Product Attributes - Gaskets Included: No
Product Attributes - Hardware Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Reference Information

Brand Name/s	Canton Racing Products
StreetFX SKU	ctr15-240
SFX Item ID	5052199
Supplier Item Code	5052199
Manufacturer SKU	15-240
Manufacturer UPC	887753712127
Alternative References	CAN15-240

Compatibility

Application Data

Make	CHEVROLET
Beginning Year	1955
Ending Year	1957
Engine Type	V8
Engine Size	4.3L/265
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1957
Ending Year	1967
Engine Type	V8
Engine Size	4.6L/283
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1962
Ending Year	1969
Engine Type	V8
Engine Size	5.3L/327
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1964
Ending Year	1967
Engine Type	V8
Engine Size	5.4L/327
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1967
Ending Year	1969
Engine Type	V8
Engine Size	4.9L/302
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1967
Ending Year	1980
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1968
Ending Year	1973
Engine Type	V8
Engine Size	5.0L/307
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1970
Ending Year	1980
Engine Type	V8
Engine Size	6.6L/400
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1975
Ending Year	1976
Engine Type	V8
Engine Size	4.3L/262
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1976
Ending Year	1980
Engine Type	V8
Engine Size	5.0L/305
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Beginning Year	1979
Ending Year	1980
Engine Type	V8
Engine Size	4.4L/267
Engine Family	Chevy small block Gen I
Application Notes	Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Model	CORVETTE
Submodel	35TH ANNIVERSARY EDITION
Beginning Year	1988
Ending Year	1988
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Application Notes	Must use pre 1980 block with driver side dipstick. Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	1984
Ending Year	1991
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Application Notes	Must use pre 1980 block with driver side dipstick. Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Model	CORVETTE
Submodel	INDIANAPOLIS 500 PACE CAR
Beginning Year	1986
Ending Year	1986
Engine Type	V8
Engine Size	5.7L/350
Engine Family	Chevy small block Gen I
Application Notes	Must use pre 1980 block with driver side dipstick. Designed for 1984-1996 Corvette with 1980 and earlier block with driver side dipstick.. System capacity is 7 quarts, which is oil pan capacity plus filter. Includes a 20mm fitting for a low oil warning sender.

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	1977
Ending Year	1977
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	X

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	1977
Ending Year	1979
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	L

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	1979
Ending Year	1979
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	4

Make	CHEVROLET
Model	CORVETTE
Submodel	BASE
Beginning Year	1979
Ending Year	1979
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	8

Make	CHEVROLET
Model	CORVETTE
Submodel	INDIANAPOLIS 500 PACE CAR
Beginning Year	1978
Ending Year	1978
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	4

Make	CHEVROLET
Model	CORVETTE
Submodel	SILVER ANNIVERSARY EDITION
Beginning Year	1978
Ending Year	1978
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	4

Make	CHEVROLET
Model	CORVETTE
Submodel	SILVER ANNIVERSARY EDITION
Beginning Year	1978
Ending Year	1978
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	L

Make	CHEVROLET
Model	CORVETTE
Submodel	STINGRAY
Beginning Year	1975
Ending Year	1975
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	J

Make	CHEVROLET
Model	CORVETTE
Submodel	STINGRAY
Beginning Year	1975
Ending Year	1975
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	T

Make	CHEVROLET
Model	CORVETTE
Submodel	STINGRAY
Beginning Year	1976
Ending Year	1976
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	L

Make	CHEVROLET
Model	CORVETTE
Submodel	STINGRAY
Beginning Year	1976
Ending Year	1976
Engine Type	V8
Engine Size	5.7L/350
Drivetrain	RWD
Engine Family	Chevy small block Gen I
Application Notes	Street/Strip/Road Race Oil Pan; 7 Qt.; 7 in. Deep/W-13.75 in./L-12 in. Sump; Incl. Crank Scraper/Magnetic Drain Plug; Chevy Pre-80 Small Block w/Left Side Dipstick;
Engine VIN Code	X
