Canton Racing Drag Wet Sump Oil Pans 13-090BLK Pan, Engine Swap, Sump, Steel, Black, Rear Sump, 5 Qt. 4.125 in. Stroke, Passenger Side Dipstick, Chevy, Small Block, Each

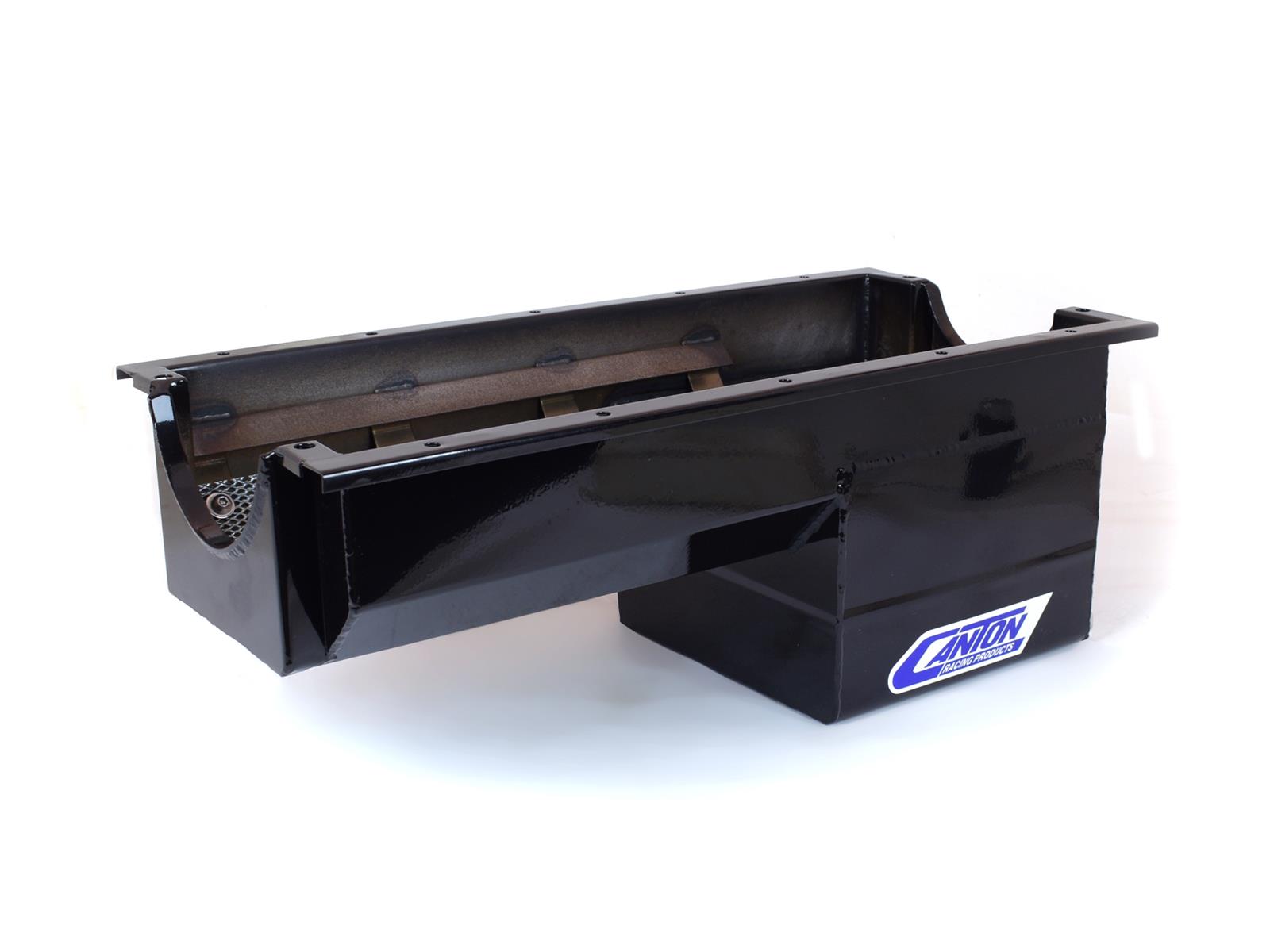

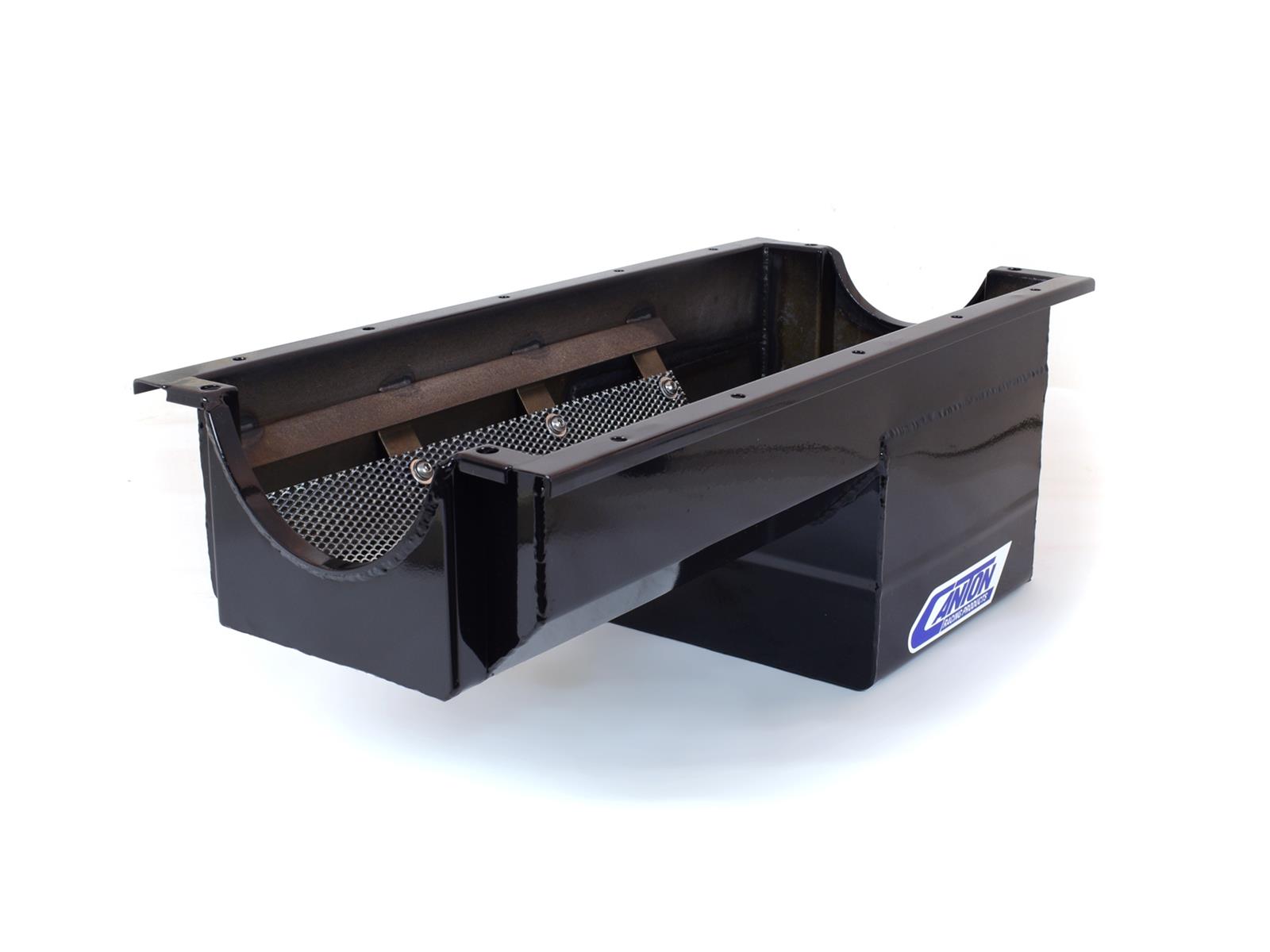

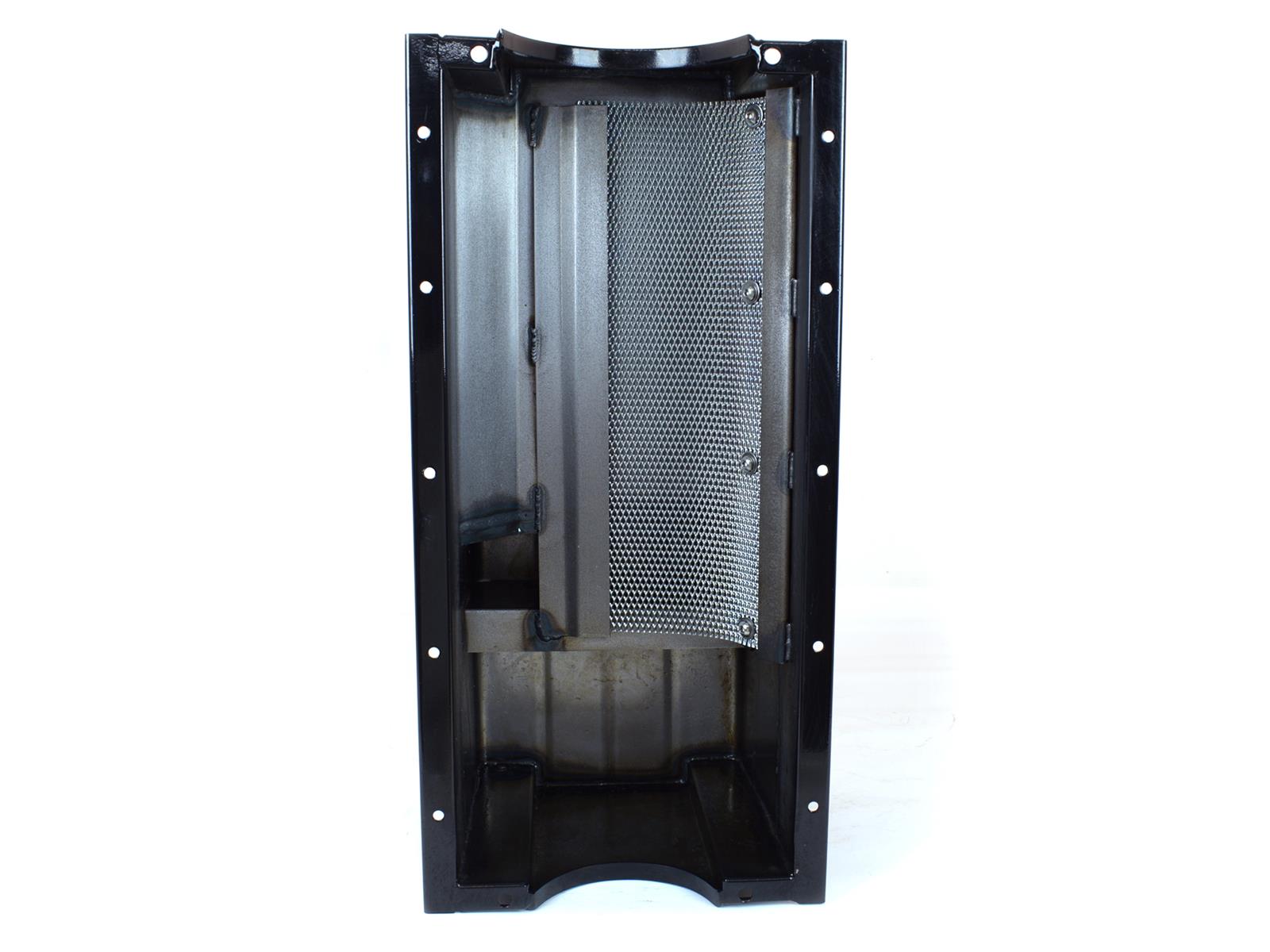

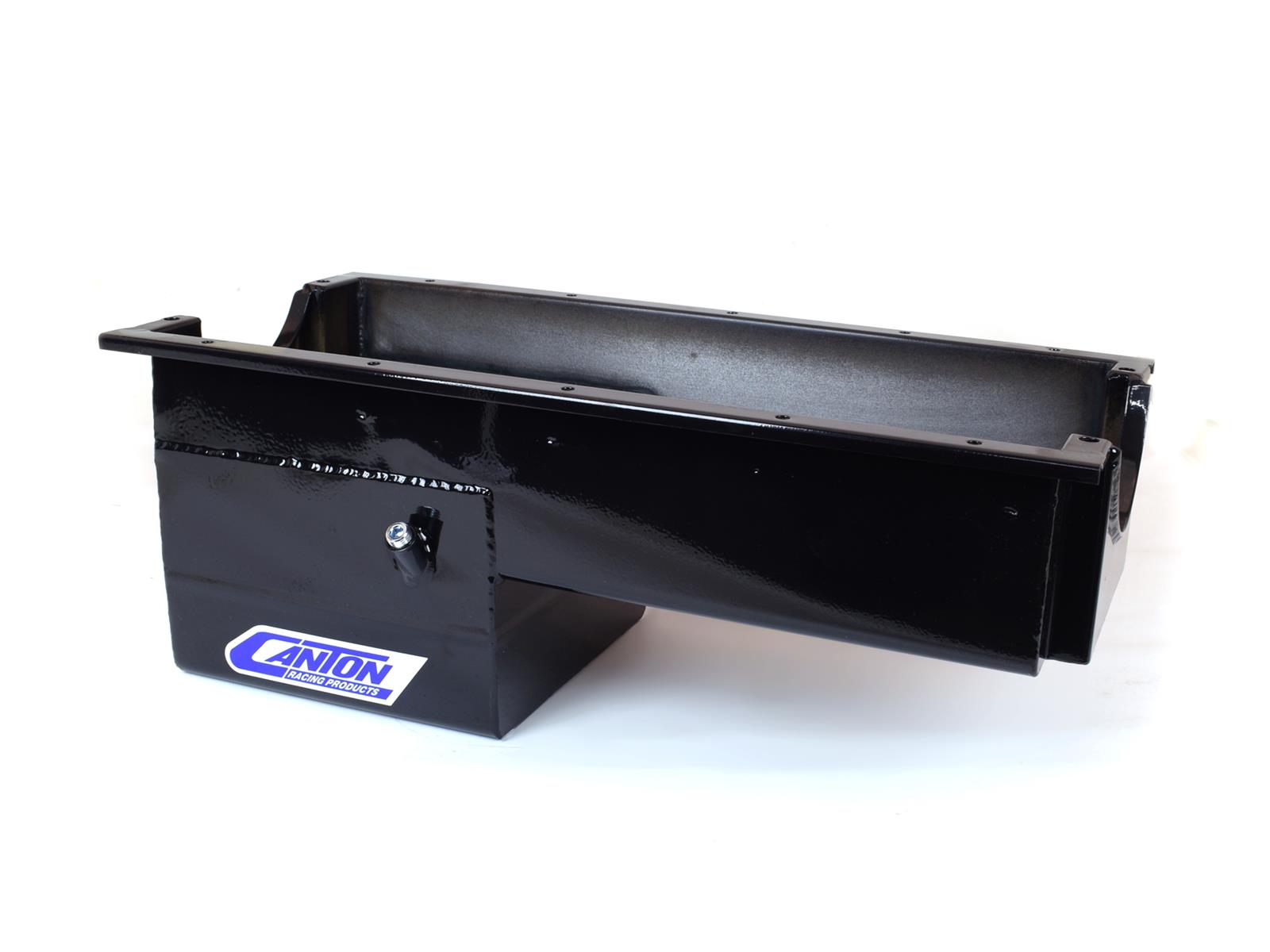

Canton Racing Drag Wet Sump Oil Pans 13-090BLK Pan, Engine Swap, Sump, Steel, Black, Rear Sump, 5 Qt. 4.125 in. Stroke, Passenger Side Dipstick, Chevy, Small Block, Each
A$1,409.42
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Canton Racing drag racing wet sump oil pans are designed to provide the best oil control and power savings possible for each application. Canton Racing drag racing wet sump oil pans are available in several chassis configurations for all levels of performance from Bracket to Pro Drag, and most are available in steel and aluminum.
Part Type
Oil Pans
Specifications
- Product Attributes - Brand
- Canton Racing Products
- Product Attributes - Manufacturer's Part Number
- 13-090BLK
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Canton Racing Drag Racing Wet Sump Oil Pans
- Product Attributes - UPC
- 887753711595
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Drag Race
- Product Attributes - Rear Main Seal Style
- 2-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 5.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.125 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 8.250
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- Yes
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- System capacity is 6 quarts, which is oil pan capacity plus filter. Dart/Rocket aluminum or iron blocks with spread oil pan rails.
Reference Information
| Brand Name/s | Canton Racing Products |
|---|---|
| StreetFX SKU | ctr13-090BLK |
| SFX Item ID | 5052188 |
| Supplier Item Code | 5052188 |
| Manufacturer SKU | 13-090BLK |
| Manufacturer UPC | 887753711595 |
