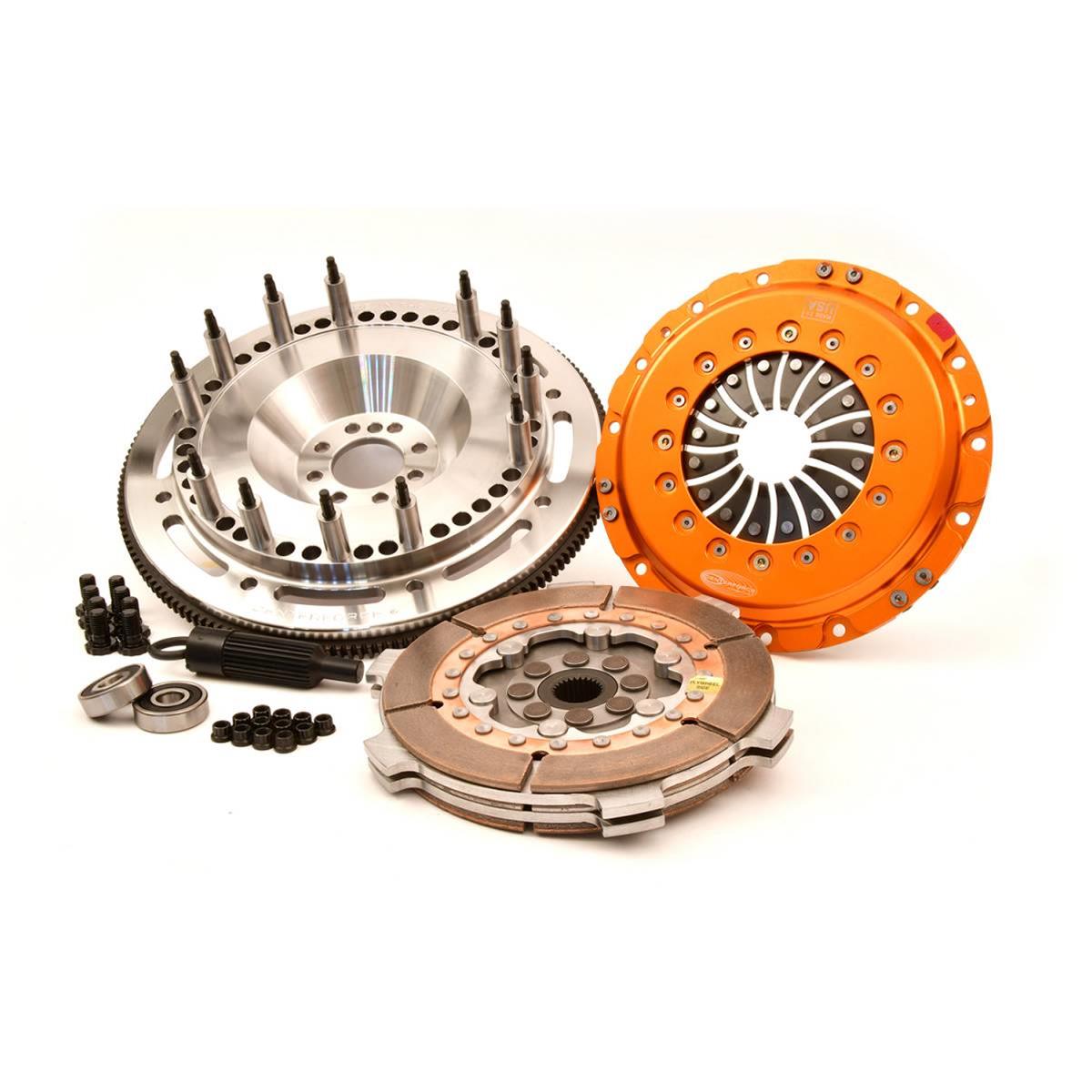

Centerforce TRIAD XDS Clutch Kits 838264077 and Flywheel Kit, TRIAD(R) XDS, and Flywheel Kit
Centerforce TRIAD XDS Clutch Kits 838264077 and Flywheel Kit, TRIAD(R) XDS, and Flywheel Kit
A$5,074.83
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Centerforce TRIAD XDS clutch kits supply triple disc clutches developed for vehicles requiring a holding capacity of 500 to 1,200 ft.-lbs. of torque at the crank. For superior clamp load the billet pressure plates feature their patented centrifugal weight system (where applicable), while the patented ball bearing-actuated pressure plate (where applicable) provides light pedal effort. TRIAD XDS disc packs are equipped with metallic friction material for increased holding capacity and they are available in either sprung or solid hub styles, depending on application. The clutches are equipped with lightened billet steel flywheels providing low inertia, resulting in quicker rpms.
Centerforce TRIAD XDS clutch kits may feature:
* No complicated setup or adjustments
* 8.75 in. diameter designed to lower inertia for heavy track use
* Centrifugally assisted diaphragm to increase holding capacity with rpm
* Solid hub design offers light weight and quick shifts
* Patented multi-disc floating disc and drive disc designs
* Holds 500 to 1,200 ft.-lbs. of torque at the flywheel
* Patented ball bearing pressure plate
* Specification card
* Excellent driver control
* Positive drive floater
* Precision-balanced
* ARP fasteners
Part Type
Clutch Kits
Specifications
- Product Attributes - Brand
- Centerforce
- Product Attributes - Manufacturer's Part Number
- 838264077
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- Centerforce TRIAD XDS Clutch Kits
- Product Attributes - UPC
- 788442034783
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 3
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 26
- Product Attributes - Input Shaft Diameter
- 1.125 in.
- Product Attributes - Disc Diameter (in.)
- 8.750 in.
- Product Attributes - Disc Diameter (mm)
- 222mm
- Product Attributes - Disc Material
- Metallic
- Product Attributes - Disc Style
- Full face
- Product Attributes - Hub Style
- Solid
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- No
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- Yes
- Product Attributes - Flywheel Material
- Billet steel
- Product Attributes - Ring Gear Tooth Quantity
- 184-tooth
- Product Attributes - Flywheel Bolt Quantity
- 8
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Centerforce |
|---|---|
| StreetFX SKU | ctf838264077 |
| SFX Item ID | 4979861 |
| Supplier Item Code | 4979861 |
| Manufacturer SKU | 838264077 |
| Manufacturer UPC | 788442034783 |
| Alternative References | CFC838264077 |
