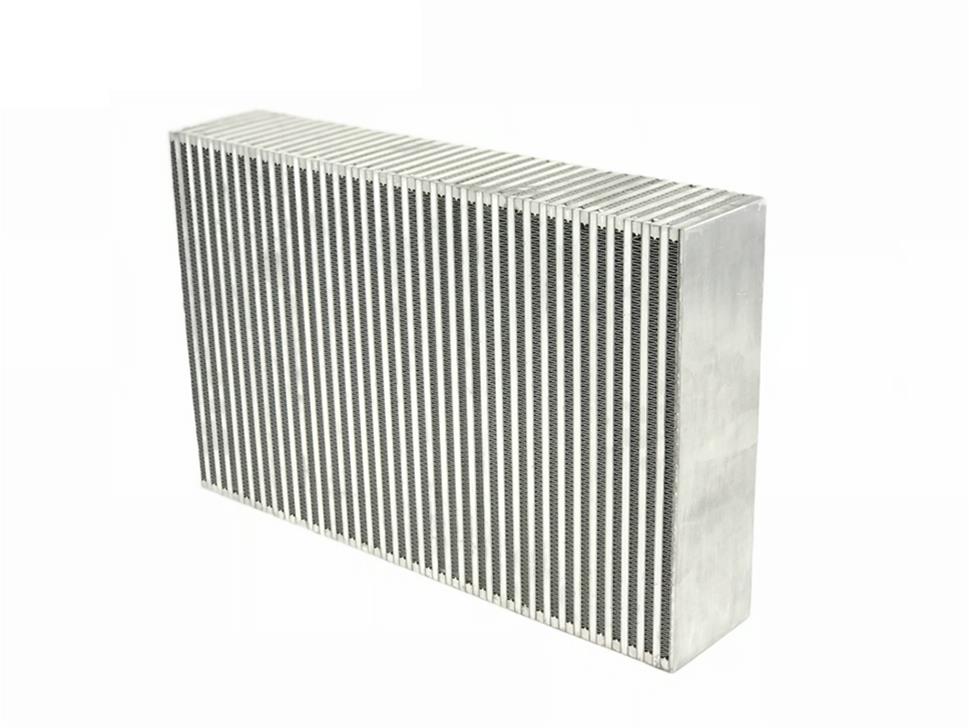

CSF Intercooler Cores 8117 Core, Air-to-Air, Vertical Flow, Aluminum, 22.047 in. Width, 13.976 in. Height, 4.528 in. Depth, Nissan, Each

SKU: CSF8117

Intercooler Cores
CSF Intercooler Cores 8117 Core, Air-to-Air, Vertical Flow, Aluminum, 22.047 in. Width, 13.976 in. Height, 4.528 in. Depth, Nissan, Each
Csf

Csf

CSF Intercooler Cores 8117 Core, Air-to-Air, Vertical Flow, Aluminum, 22.047 in. Width, 13.976 in. Height, 4.528 in. Depth, Nissan, Each

SKU: CSF8117

Intercooler Cores
A$1,257.81
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 22" x 14" x 4.5" Vertical Flow (R35 GT-R Fitment) Core is rated for 1500 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.

Product Overview

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 22" x 14" x 4.5" Vertical Flow (R35 GT-R Fitment) Core is rated for 1500 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.


Features and Benefits

  • Heavy-Duty Bar & Plate Intercooler Cores
  • HP Rating: 1500
  • Vertical Flow (Nissan R35 GT-R Fitment)
  • Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
  • Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
  • Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
  • Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
  • Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
  • Strict Quality Control and Quality Testing, Including Individual Pressure Testing
  • Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
  • Dimensions: 22"x14"x4.5" (560mm x 355mm x 115mm)

Product Details

Core Material:Aluminum
Core Row Quantity:35
Description:CSF Nissan GT-R (R35) High Performance Bar & Plate Intercooler Core - 22in L x 14in H x 4.5in W
Grade Type:Performance
HP Rating:1500 WHP
Inlet Quantity:1
Installation Type:Universal Cooling Product
Intercooler Flow Direction:Vertical (R35 GT-R Fitment)
Intercooler Type:Air-to-Air
Length:560mm
Mounting Hardware Included:No
Outlet Quantity:1
Part Number:csf8117
Prop 65 Yes/No:No
Tank Material:No Tanks Included
Thickness:115mm
Title:HP Bar & Plate Intercooler Core 22Lx14Hx4.5W - Vertical Flow / R35 GT-R Fitment
Type:Air-to-Air
Width:355mm

Part Type

Intercooler Core

Data: v4.2 - Upd: 2026-10-16 12:34:23

Features

  • Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
  • Dimensions: 22"x14"x4.5" (560mm x 355mm x 115mm)
  • Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
  • Heavy-Duty Bar & Plate Intercooler Cores
  • HP Rating: 1500
  • Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
  • Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
  • Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
  • Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
  • Strict Quality Control and Quality Testing, Including Individual Pressure Testing
  • Vertical Flow (Nissan R35 GT-R Fitment)

Specifications

Product Attributes - Brand
CSF Radiator
Product Attributes - Manufacturer's Part Number
8117
Product Attributes - Part Type
Intercooler Cores
Product Attributes - Product Line
CSF Intercooler Cores
Product Attributes - UPC
710353081174
Product Attributes - Intercooler Core Type
Air-to-air
Product Attributes - Intercooler Core Width (in.)
22.05
Product Attributes - Intercooler Core Height (in.)
13.98
Product Attributes - Intercooler Core Depth (in.)
4.53
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Vertical flow core is rated up to 1,500 horsepower.

Reference Information

Brand Name/s Csf
StreetFX SKU csf8117
SFX Item ID 4962625
Supplier Item Code 4962625
Manufacturer SKU 8117
Manufacturer UPC 710353081174
