CSF Racing Radiators for 2010-2022 4RUNNER - 7085 Radiator, High-Performance, Aluminum,Toyota 4Runner, Each
CSF Racing Radiators for 2010-2022 4RUNNER - 7085 Radiator, High-Performance, Aluminum,Toyota 4Runner, Each
A$1,674.06
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

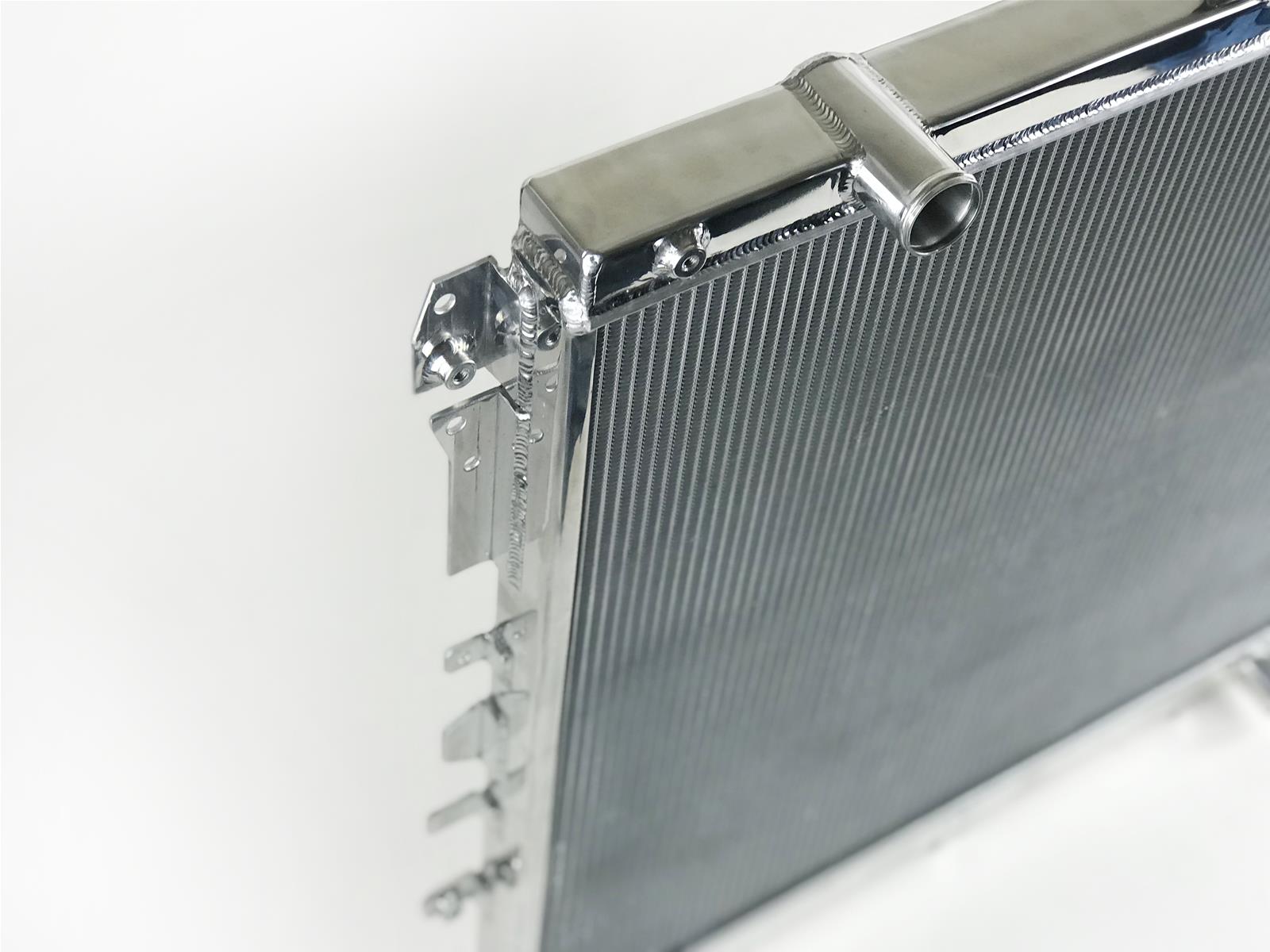

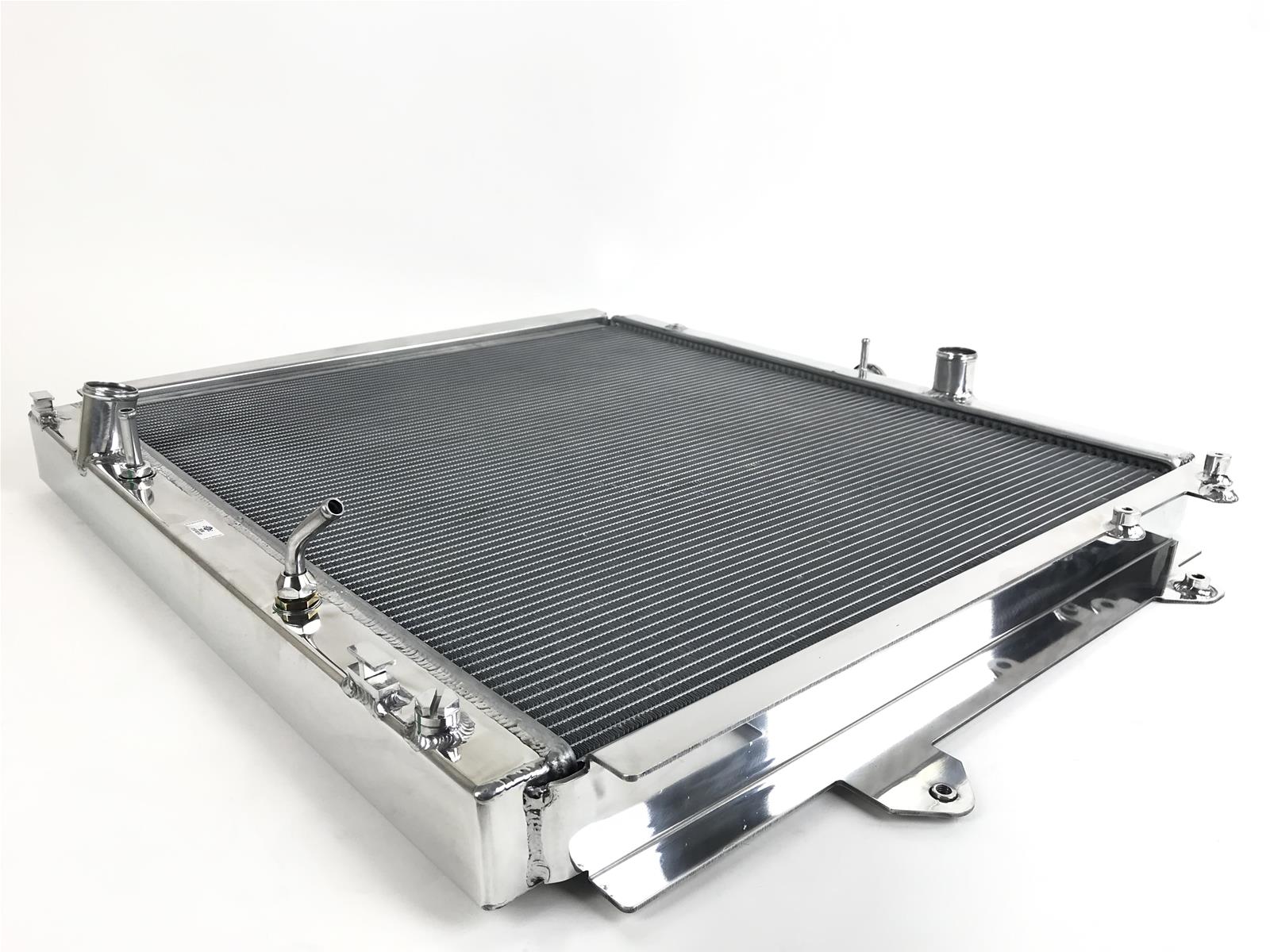

The CSF 4Runner radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Whether you are off-roading, towing, or just casually driving, trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
Product Overview
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 4Runner running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
Features and Benefits
- 2 Row, 42mm Ultra High-Performance Core Featuring CSF's Exclusive B-Tube Technology
- Core Features Ultra-Efficient, 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Upgraded 4-Plate Automatic Transmission Cooler Built Into Bottom End Tank
- Individually Leak and Pressure Tested
- CNC Machined Mounting Brackets for Superb Fit and Durability
- 100% All Aluminum TIG-Welded Construction
- True "Drop-In-Fit" Requires No Modifications to Install
- 1 Hour "Mirror Finish" Hand Polish
- 2 Year Limited Warranty
Product Details
| Coolant Hose Inlet Connection Type: | OE Type Connection |
|---|---|
| Coolant Hose Outlet Connection Type: | OE Type Connection |
| Core Height: | 22.625 in. |
| Core Material: | Aluminum |
| Core Row Quantity: | 2 |
| Core Thickness: | 1.625 in. |
| Core Width: | 25.625 in. |
| Description: | CSF 10-19 Toyota 4Runner High Performance All-Aluminum Radiator |
| Down Flow Or Cross Flow Type: | Down Flow |
| Finish/Color: | Polished |
| Frame Included: | No |
| Grade Type: | Performance |
| Inlet Connector Type: | Slip On |
| Inlet Diameter: | 1.625 in. |
| Inlet Location: | Top Right |
| Installation Type: | Drop-In Fit Installation |
| Internal Engine Oil Cooler: | No |
| Internal Transmission Oil Cooler: | Yes |
| Mounting Hardware Included: | No |
| Mounting Type: | Mounts with OE Hardware |
| Outlet Connector Type: | Slip On |
| Outlet Diameter: | 1.625 in. |
| Outlet Location: | Bottom Left |
| Part Number: | csf7085 |
| Prop 65 Yes/No: | No |
| Radiator Cap Included: | Yes |
| Tank Material: | Aluminum |
| Thermostat Included: | No |
| Title: | 10-20 Toyota 4Runner High-Performance All-Aluminum Radiator |
Part Type
Radiator
Features
- 1 Hour "Mirror Finish" Hand Polish
- 100% All Aluminum TIG-Welded Construction
- 2 Row, 42mm Ultra High-Performance Core Featuring CSF's Exclusive B-Tube Technology
- 2 Year Limited Warranty
- CNC Machined Mounting Brackets for Superb Fit and Durability
- Core Features Ultra-Efficient, 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- Individually Leak and Pressure Tested
- True "Drop-In-Fit" Requires No Modifications to Install
- Upgraded 4-Plate Automatic Transmission Cooler Built Into Bottom End Tank
Specifications
- Product Attributes - Brand
- CSF Radiator
- Product Attributes - Manufacturer's Part Number
- 7085
- Product Attributes - Part Type
- Radiators
- Product Attributes - Product Line
- CSF Racing Radiators
- Product Attributes - UPC
- 710353070857
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Radiator Style
- Downflow
- Product Attributes - Transmission Cooler
- Yes
- Product Attributes - Inlet Location
- Center upper
- Product Attributes - Outlet Location
- Lower driver side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
- Product Attributes - Fan Included
- No
- Product Attributes - Radiator Cap Included
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Csf |
|---|---|
| StreetFX SKU | csf7085 |
| SFX Item ID | 4962974 |
| Supplier Item Code | 4962974 |
| Manufacturer SKU | 7085 |
| Manufacturer UPC | 710353070857 |
| Alternative References | 4RUNNER |
