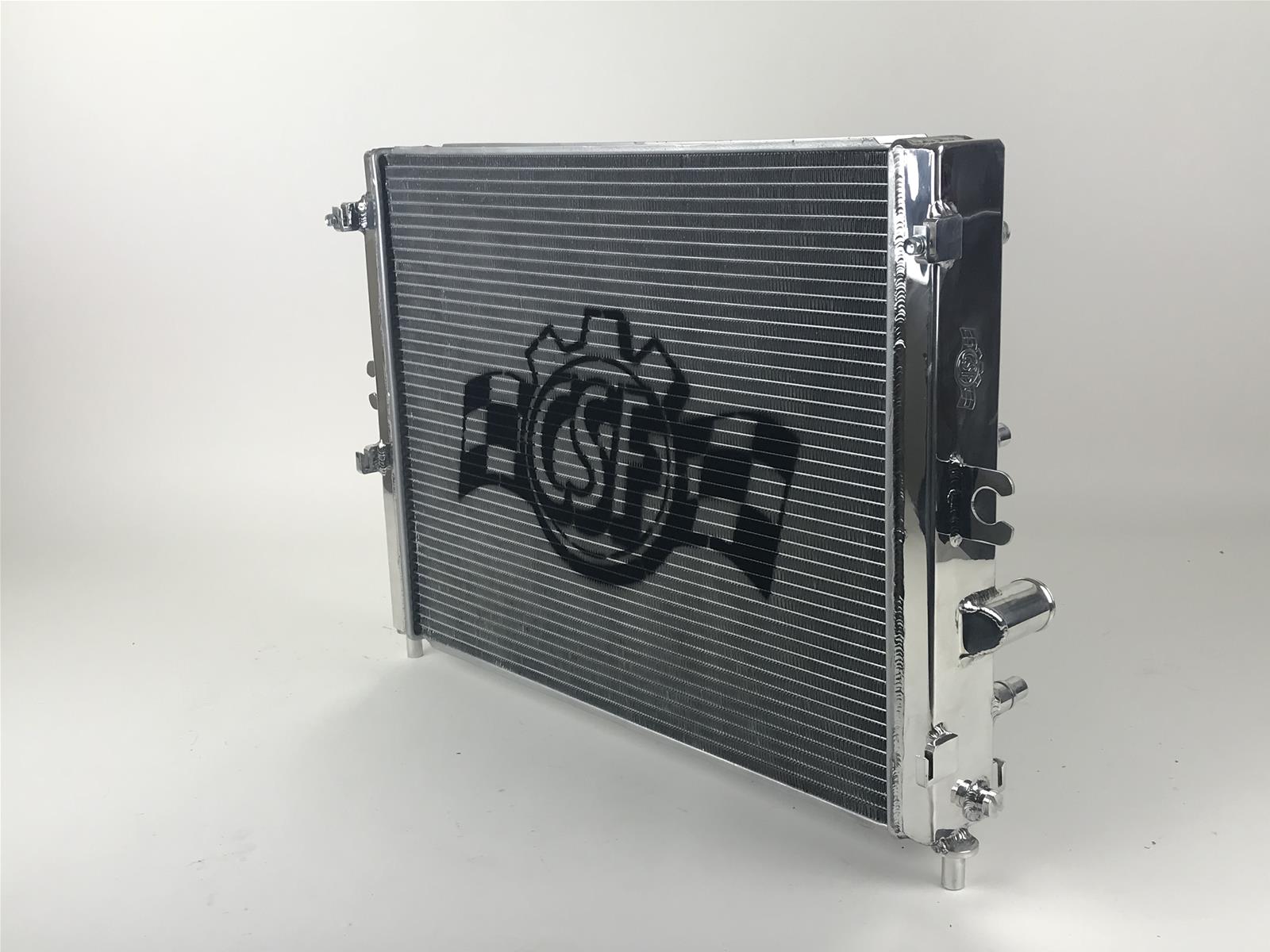

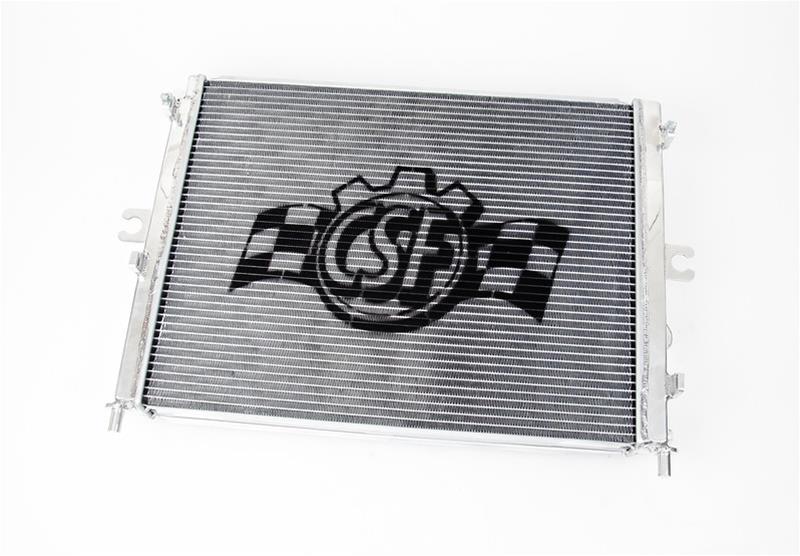

CSF Racing Radiators for 2014-2019 CORVETTE - 7077 Radiator, Aluminum, Polished, Crossflow, Upper Passenger Side Inlet, Lower Driver Side Outlet, Chevy, Each
CSF Racing Radiators for 2014-2019 CORVETTE - 7077 Radiator, Aluminum, Polished, Crossflow, Upper Passenger Side Inlet, Lower Driver Side Outlet, Chevy, Each
A$1,434.55
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The CSF C7 Corvette radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
Product Overview
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your C7 Corvette running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
Features and Benefits
- Significantly Reduced Engine Temps for Maximum Performance?
- 2 Row, 52mm Core Featuring CSF's Exclusive B-Tube Technology?
- 8mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact?
- Triple-Pass Flow Structure for Lowest Possible Coolant Output Temperatures
- Individually Leak and Pressure Tested?
- CNC Machined Brackets and Fittings for Superb Fit and Durability?
- Integrated All-Aluminum Race-Style Bleeder Screws?
- Smooth Satin Finish
- Drop-in Fit
Product Details
| Coolant Hose Inlet Connection Type: | OE Type Connection |
|---|---|
| Coolant Hose Outlet Connection Type: | OE Type Connection |
| Core Height: | 21.5 in. |
| Core Material: | Aluminum |
| Core Row Quantity: | 2 |
| Core Thickness: | 2.0625 in. |
| Core Width: | 15.75 in. |
| Description: | CSF 2014+ Chevrolet Corvette (C7) Z06 Radiator |
| Down Flow Or Cross Flow Type: | Cross Flow |
| Finish/Color: | Satin |
| Frame Included: | No |
| Grade Type: | Performance |
| Inlet Connector Type: | Slip On |
| Inlet Diameter: | 1.34 in. |
| Inlet Location: | Top Right |
| Installation Type: | Drop-In Fit Installation |
| Internal Engine Oil Cooler: | No |
| Internal Transmission Oil Cooler: | No |
| Mounting Hardware Included: | No |
| Mounting Type: | Mounts with OE Hardware |
| Outlet Connector Type: | Slip On |
| Outlet Diameter: | 1.34 in. |
| Outlet Location: | Bottom Left |
| Part Number: | csf7077 |
| Prop 65 Yes/No: | No |
| Radiator Cap Included: | No |
| Tank Material: | Aluminum |
| Thermostat Included: | No |
| Title: | 1419 Chevrolet C7 Corvette Stingray / Grand Sport / Z06 All-Aluminum Radiator |
Part Type
Radiator
Features
- "Drop-in Fit" for Easy Installation
- 2 Row, 52mm Core Featuring CSF's Exclusive B-Tube Technology?
- 8mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact?
- CNC Machined Brackets and Fittings for Superb Fit and Durability?
- Individually Leak and Pressure Tested?
- Integrated All-Aluminum Race-Style Bleeder Screws?
- Significantly Reduced Engine Temps for Maximum Performance?
- Smooth Satin Finish
- Triple-Pass Flow Structure for Lowest Possible Coolant Output Temperatures
Specifications
- Product Attributes - Brand
- CSF Radiator
- Product Attributes - Manufacturer's Part Number
- 7077
- Product Attributes - Part Type
- Radiators
- Product Attributes - Product Line
- CSF Racing Radiators
- Product Attributes - UPC
- 710353070772
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Radiator Style
- Crossflow
- Product Attributes - Transmission Cooler
- No
- Product Attributes - Inlet Location
- Upper passenger side
- Product Attributes - Outlet Location
- Lower driver side
- Product Attributes - Row Quantity
- 2
- Product Attributes - Radiator Finish
- Polished
- Product Attributes - Core Thickness (in.)
- 2.00 in.
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
- Product Attributes - Fan Included
- No
- Product Attributes - Radiator Cap Included
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Csf |
|---|---|
| StreetFX SKU | csf7077 |
| SFX Item ID | 4962436 |
| Supplier Item Code | 4962436 |
| Manufacturer SKU | 7077 |
| Manufacturer UPC | 710353070772 |
