CSF Racing Radiators for 2003-2009 4RUNNER, 2007-2014 FJ CRUISER - 7076 Radiator, Racing, Aluminum, Polished, Toyota, Cruiser, Each
CSF Racing Radiators for 2003-2009 4RUNNER, 2007-2014 FJ CRUISER - 7076 Radiator, Racing, Aluminum, Polished, Toyota, Cruiser, Each
A$1,186.39
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept

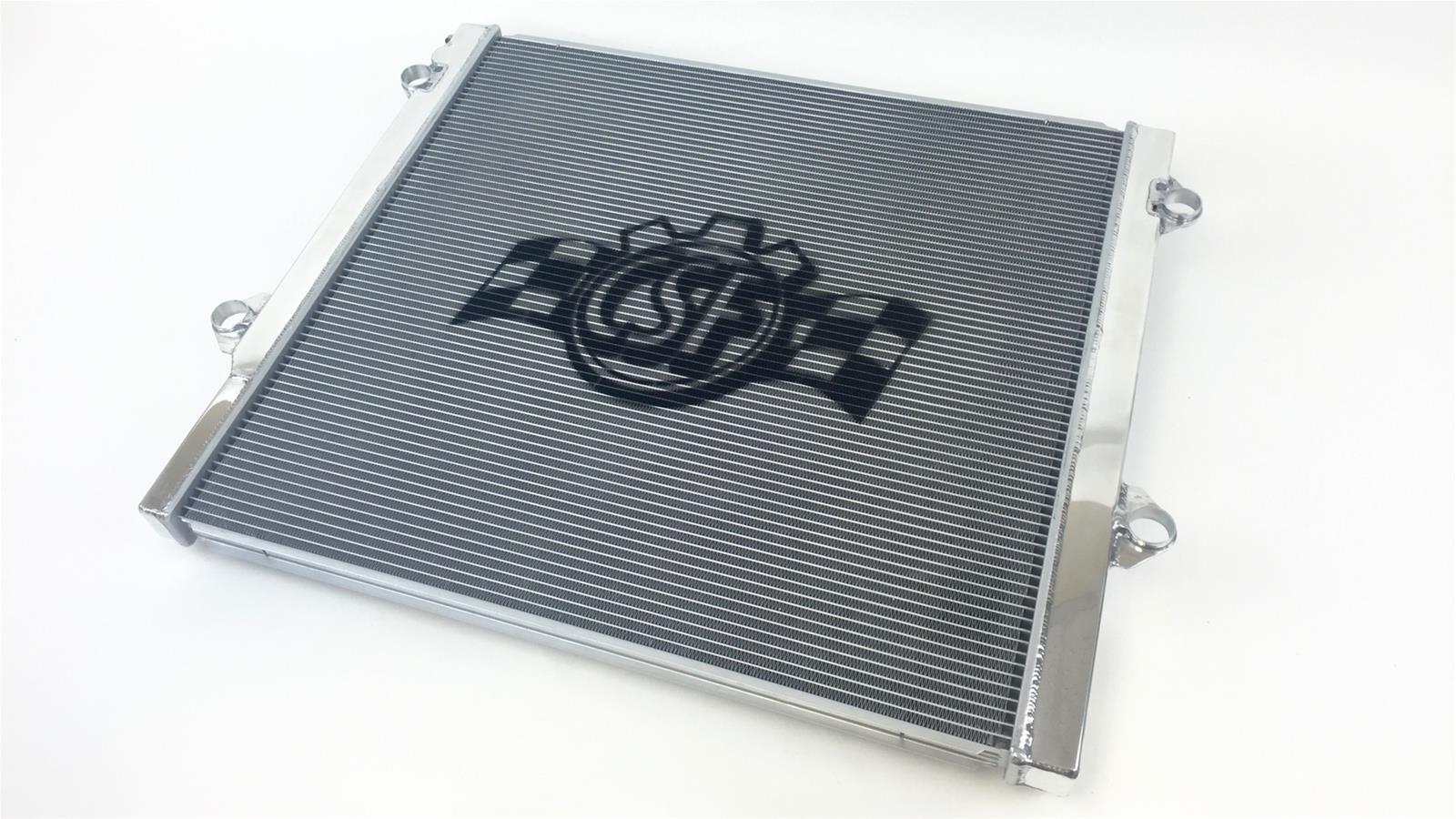

Description
The CSF FJ Cruiser radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Whether you are off-roading, towing, or just casually driving, trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
Product Overview
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your FJ Cruiser running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
Features and Benefits
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- Smooth Satin Finish
- Drop-in Fit

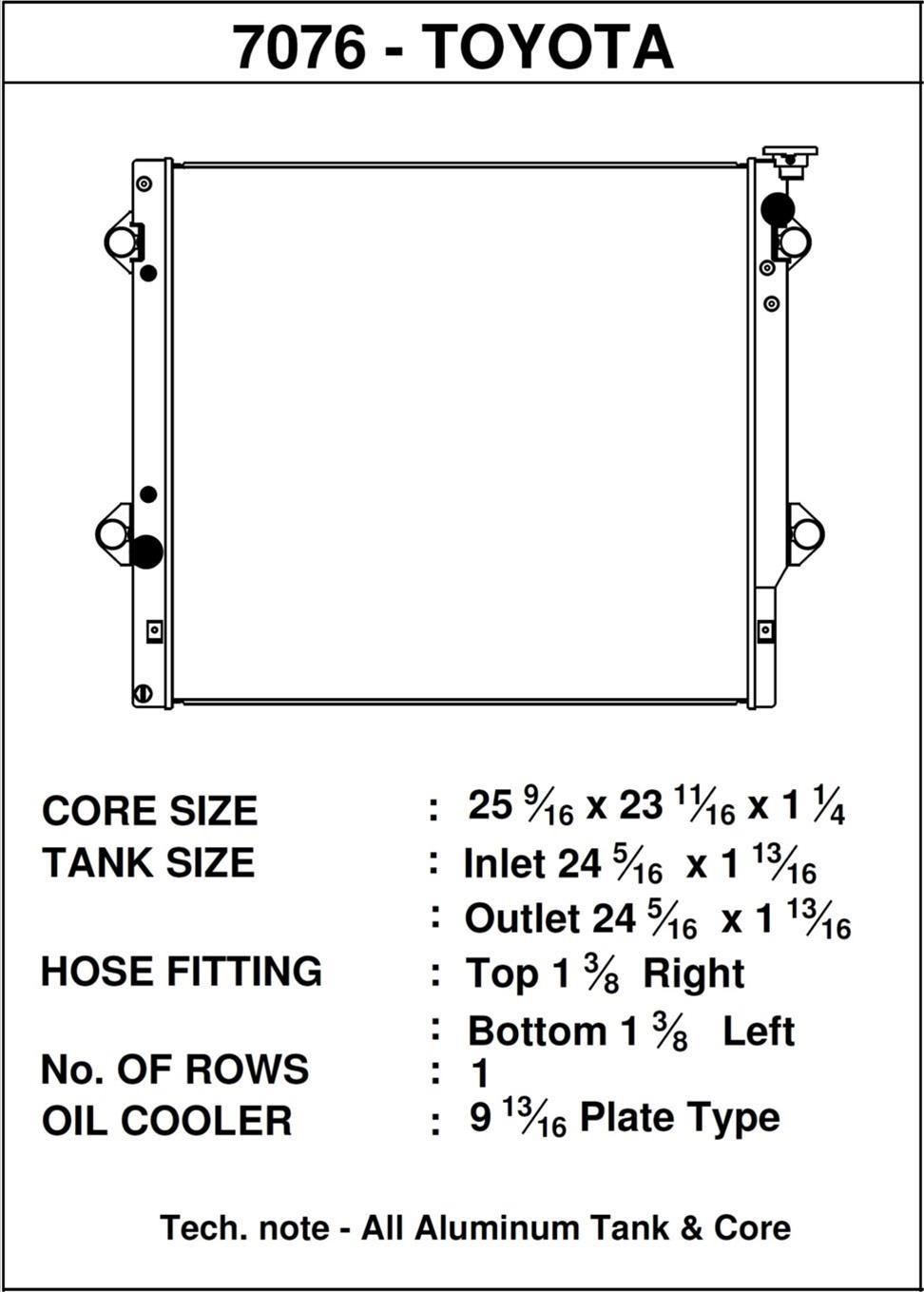

Product Details
| Coolant Hose Inlet Connection Type: | OE Type Connection |
|---|---|
| Coolant Hose Outlet Connection Type: | OE Type Connection |
| Core Height: | 25.5625 in. |
| Core Material: | Aluminum |
| Core Row Quantity: | 1 |
| Core Thickness: | 1.25 in. |
| Core Width: | 23.6875 in. |
| Description: | CSF 06-14 Toyota FJ Cruiser 4.0L / 03-09 Toyota 4Runner 4.0L / 2010 Toyota 4Runner 2.7L Radiator |
| Down Flow Or Cross Flow Type: | Cross Flow |
| Finish/Color: | Satin |
| Frame Included: | No |
| Grade Type: | Performance |
| Inlet Connector Type: | Slip On |
| Inlet Diameter: | 1.375 in. |
| Inlet Location: | Top Right |
| Installation Type: | Drop-In Fit Installation |
| Internal Engine Oil Cooler: | No |
| Internal Transmission Oil Cooler: | Yes |
| Mounting Hardware Included: | No |
| Mounting Type: | Mounts with OE Hardware |
| Outlet Connector Type: | Slip On |
| Outlet Diameter: | 1.375 in. |
| Outlet Location: | Bottom Left |
| Part Number: | csf7076 |
| Prop 65 Yes/No: | No |
| Radiator Cap Included: | Yes |
| Tank Material: | Aluminum |
| Thermostat Included: | No |
| Title: | 03-09 Toyota 4Runner / 06-14 FJ Cruiser Heavy-Duty All-Aluminum Radiator |
Part Type
Radiator
Features
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- All-Aluminum Race Style Drain Plug
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- Smooth Satin Finish
Specifications
- Product Attributes - Brand
- CSF Radiator
- Product Attributes - Manufacturer's Part Number
- 7076
- Product Attributes - Part Type
- Radiators
- Product Attributes - Product Line
- CSF Racing Radiators
- Product Attributes - UPC
- 00710353070765
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Radiator Style
- Crossflow
- Product Attributes - Transmission Cooler
- Yes
- Product Attributes - Inlet Location
- Upper passenger side
- Product Attributes - Outlet Location
- Lower driver side
- Product Attributes - Radiator Finish
- Polished
- Product Attributes - Core Width (in.)
- 25.56 in.
- Product Attributes - Core Height (in.)
- 23.69 in.
- Product Attributes - Core Thickness (in.)
- 1.25 in.
- Product Attributes - Radiator Inlet Size
- 1.375 in.
- Product Attributes - Radiator Outlet Size
- 1.375 in.
- Product Attributes - Trans Cooler Line Connection
- Quick-Disconnect
- Product Attributes - Trans Cooler Adapter Fittings Included
- No
- Product Attributes - Fan Included
- No
- Product Attributes - Radiator Cap Included
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Csf |
|---|---|
| StreetFX SKU | csf7076 |
| SFX Item ID | 4962350 |
| Supplier Item Code | 4962350 |
| Manufacturer SKU | 7076 |
| Manufacturer UPC | 710353070765 |
| Alternative References | 4RUNNER |
