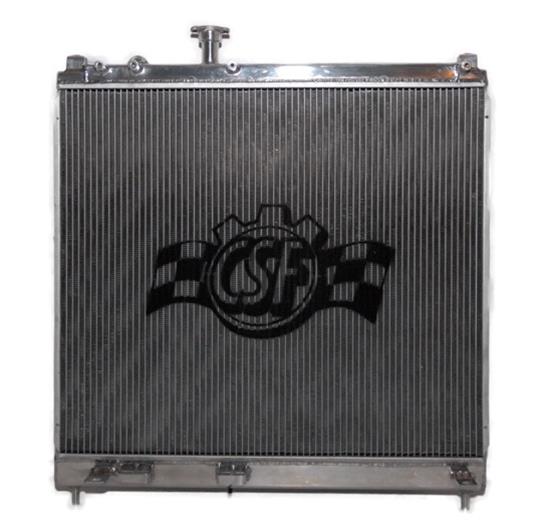

CSF Racing Radiators 3328 Radiator, Racing, Aluminum, Polished, Nissan, Infinity, Each

SKU: CSF3328

Radiators
CSF Racing Radiators 3328 Radiator, Racing, Aluminum, Polished, Nissan, Infinity, Each
Csf

Csf

CSF Racing Radiators 3328 Radiator, Racing, Aluminum, Polished, Nissan, Infinity, Each

SKU: CSF3328

Radiators
A$1,480.05
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

The CSF Titan radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Whether you are off-roading, towing, or just casually driving, trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

Product Overview

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Titan running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.


Features and Benefits

  • 100% OE style & OE specs for "Dop-in fit"

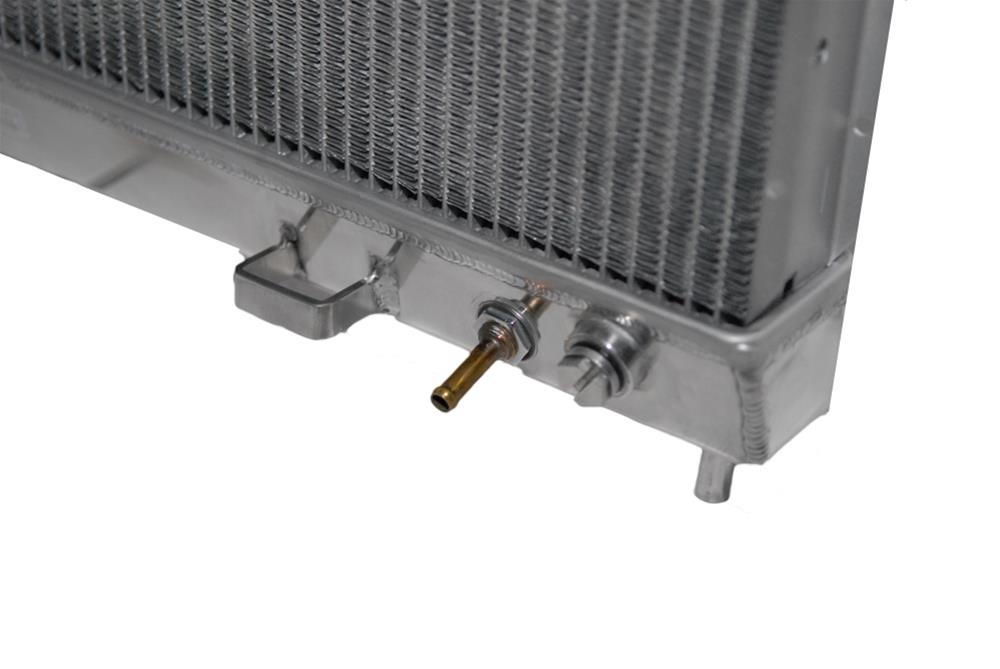

  • Pre-installed & tested drain plug
  • 100% Hydrostatic tested at 1.5 times operating pressure
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • All-Aluminum Race Style Drain Plug
  • 1-Hour "Mirror Finish" Hand Polish
  • Drop-in Fit

Product Details

Coolant Hose Inlet Connection Type:OE Type Connection
Coolant Hose Outlet Connection Type:OE Type Connection

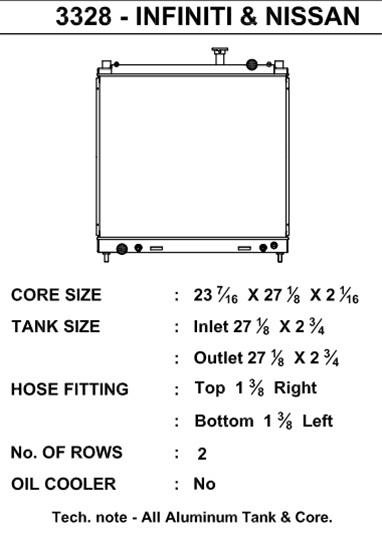

Core Height:23.4375 in.
Core Material:Aluminum
Core Row Quantity:2
Core Thickness:2.0625 in.
Core Width:27.125 in.
Description:CSF 04-15 Nissan Titan Armada Radiator
Down Flow Or Cross Flow Type:Down Flow
Finish/Color:Polished
Frame Included:No
Grade Type:Performance

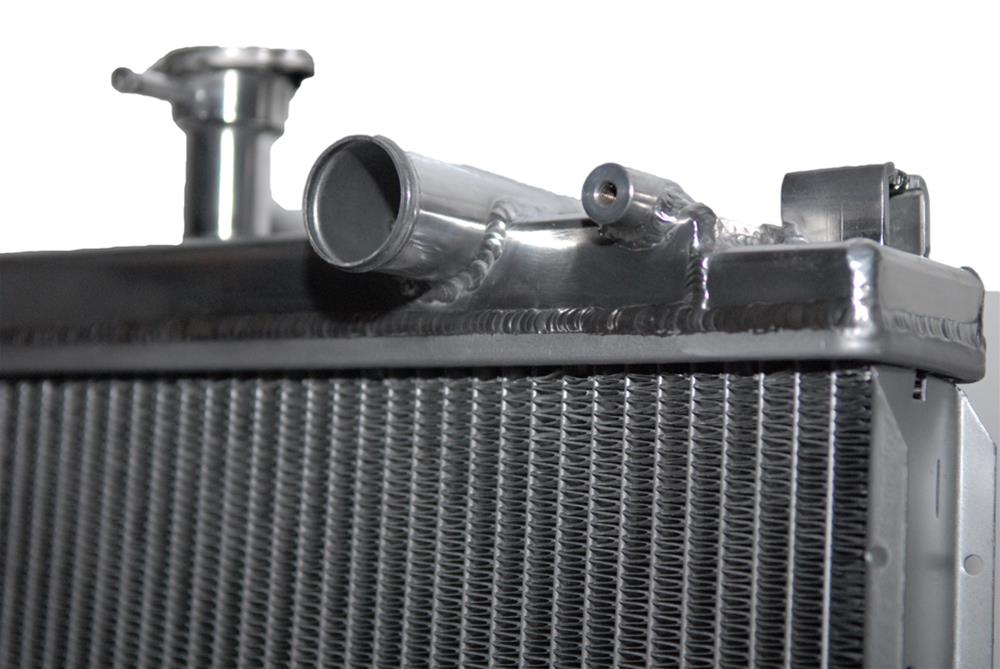

Inlet Connector Type:Slip On
Inlet Diameter:1.375 in.
Inlet Location:Top Right
Installation Type:Drop-In Fit Installation
Internal Engine Oil Cooler:No
Internal Transmission Oil Cooler:No
Mounting Hardware Included:No
Mounting Type:Mounts with OE Hardware
Outlet Connector Type:Slip On
Outlet Diameter:1.375 in.
Outlet Location:Bottom Left
Part Number:csf3328
Prop 65 Yes/No:No
Radiator Cap Included:Yes
Tank Material:Aluminum
Thermostat Included:No
Title:04-14 Nissan Titan / 05-14 Armada / 04-13 Infiniti QX56 All-Aluminum Radiator

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-15 01:34:34

Features

  • "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
  • 1-Hour "Mirror Finish" Hand Polish
  • 100% Hydrostatic tested at 1.5 times operating pressure
  • 100% OE style & OE specs for "Dop-in fit"
  • All-Aluminum Race Style Drain Plug
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • Pre-installed & tested drain plug

Specifications

Product Attributes - Brand
CSF Radiator
Product Attributes - Manufacturer's Part Number
3328
Product Attributes - Part Type
Radiators
Product Attributes - Product Line
CSF Racing Radiators
Product Attributes - UPC
710353033289
Product Attributes - Radiator Material
Aluminum
Product Attributes - Radiator Style
Downflow
Product Attributes - Transmission Cooler
Yes
Product Attributes - Inlet Location
Upper passenger side
Product Attributes - Outlet Location
Lower driver side
Product Attributes - Radiator Finish
Polished
Product Attributes - Core Width (in.)
27.13 in.
Product Attributes - Core Height (in.)
23.44 in.
Product Attributes - Core Thickness (in.)
2.06 in.
Product Attributes - Radiator Inlet Size
1.375 in.
Product Attributes - Radiator Outlet Size
1.375 in.
Product Attributes - Trans Cooler Line Connection
5/16 in. hose barb
Product Attributes - Trans Cooler Adapter Fittings Included
Yes
Product Attributes - Fan Included
No
Product Attributes - Radiator Cap Included
Yes
Product Attributes - Quantity
Sold individually.

Reference Information

Brand Name/s Csf
StreetFX SKU csf3328
SFX Item ID 4962690
Supplier Item Code 4962690
Manufacturer SKU 3328
Manufacturer UPC 710353033289
