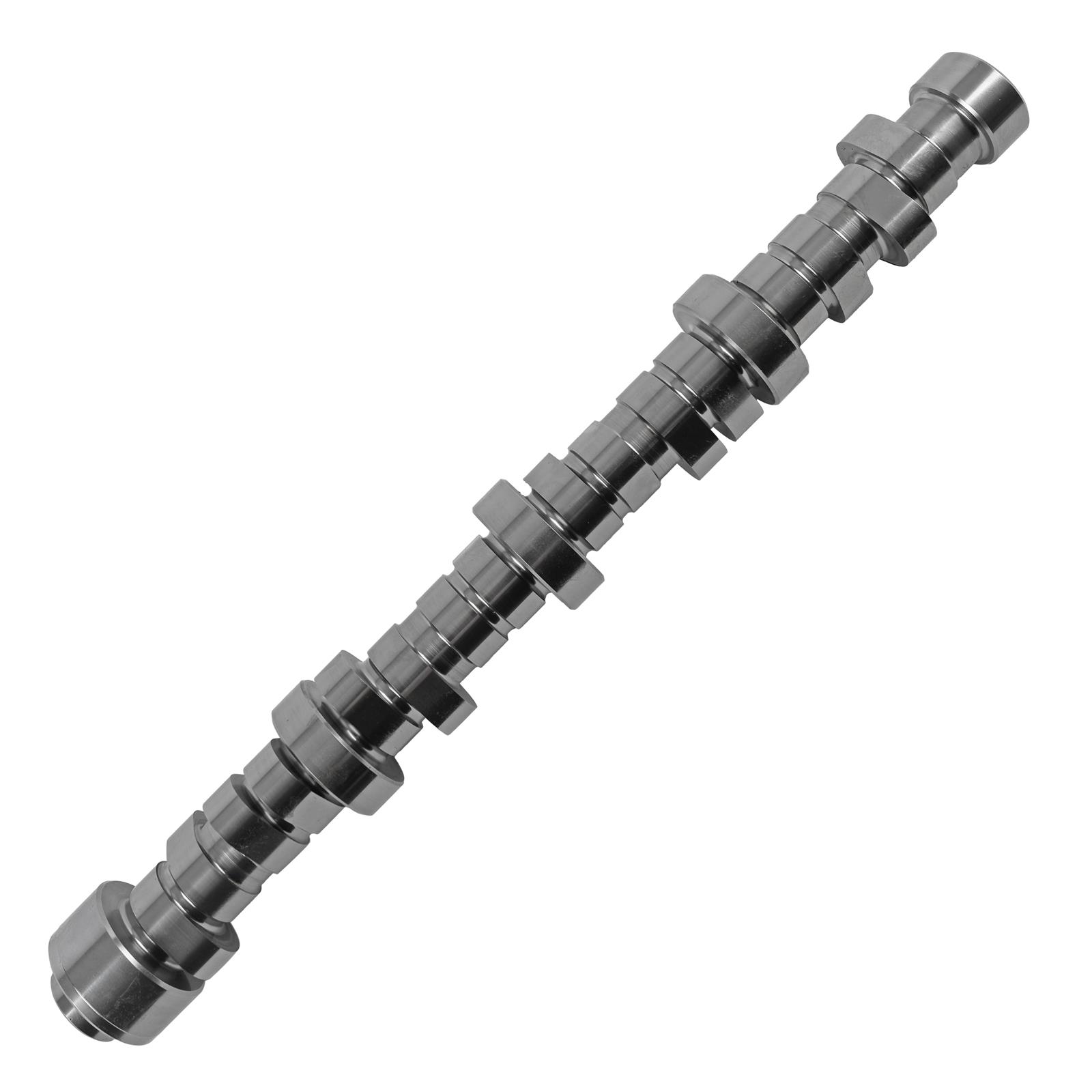

COMP Cams Stage 3 Camshaft 2009+ Dodge Non-VVT 5.7/6.1L Hemi
COMP Cams Stage 3 Camshaft 2009+ Dodge Non-VVT 5.7/6.1L Hemi
A$1,290.36
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Gen III Hemi market is rapidly expanding, and the HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque camshafts available for these engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. The new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild to wild! All HRT Stage 1 Camshafts are No Springs Required, which keeps cost down while still providing awesome horsepower increases over stock. Stages 2 and 3 applications work with COMP Cams Beehive and Conical Valve Springs, but COMP Cams is also introducing new HEMI Valve Spring Kits, engineered to produce the most power and RPM of any current options.
Product Overview
The Gen III Hemi market is rapidly expanding, and the HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque camshafts available for these engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. The new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild to wild! All HRT Stage 1 Camshafts are No Springs Required, which keeps cost down while still providing awesome horsepower increases over stock. Stages 2 and 3 applications work with COMP Cams Beehive and Conical Valve Springs, but COMP Cams is also introducing new HEMI Valve Spring Kits, engineered to produce the most power and RPM of any current options.
Product Details
| Advertised Exhaust Duration: | 283 |
|---|---|
| Advertised Intake Duration: | 277 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,900-6,700 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | HRT |
| Description: | HRT Stage 3 Cam for Dodge Non-VVT 5.7/6.1L HEMI |
| Engine Family: | Dodge 5.7L & 6.1L HEMI (2003-08) |
| Exhaust Duration at .050 inch Lift: | 234 |
| Exhaust Valve Lift: | 0.619 |
| Intake Duration at .050 Inch Lift: | 224 |
| Intake Valve Lift: | 0.632 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 115 |
| Part Number: | cca112-305-11 |
| Recommended Valve Springs: | 7228-16 |
| Stage: | 3 |
| Title: | HRT Stage 3 Cam for Dodge Non-VVT 5.7/6.1L HEMI |
| Valve Springs Required: | Yes |
Application Summary
Dodge 5.7/6.1L HEMI Engines w/o VVT
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 112-305-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams HRT Stage 3 Camshafts
- Product Attributes - UPC
- 036584401988
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Best HP of any stock piston hydraulic roller cam by taking full advantage of Hemi high lift airflow. Runs great from 3,000-7,000 RPM. Low Shock profiles and #7228 valve spring allow 7,500+ RPM.
- Product Attributes - Basic Operating RPM Range
- 2,100-7,000
- Product Attributes - Intake Duration at 050 inch Lift
- 224
- Product Attributes - Exhaust Duration at 050 inch Lift
- 234
- Product Attributes - Duration at 050 inch Lift
- 224 int./234 exh.
- Product Attributes - Advertised Intake Duration
- 277
- Product Attributes - Advertised Exhaust Duration
- 283
- Product Attributes - Advertised Duration
- 277 int./283 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.632 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.619 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.632 int./0.619 exh.
- Product Attributes - Lobe Separation (degrees)
- 115
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca112-305-11 |
| SFX Item ID | 4118040 |
| Supplier Item Code | 4118040 |
| Manufacturer SKU | 112-305-11 |
| Manufacturer UPC | 36584401988 |
| Alternative References | 53022065ab;, CPC112-305-11, 5.7/6.1L |
Brochures
Compatibility
Dodge 5.7/6.1L HEMI Engines w/o VVT
