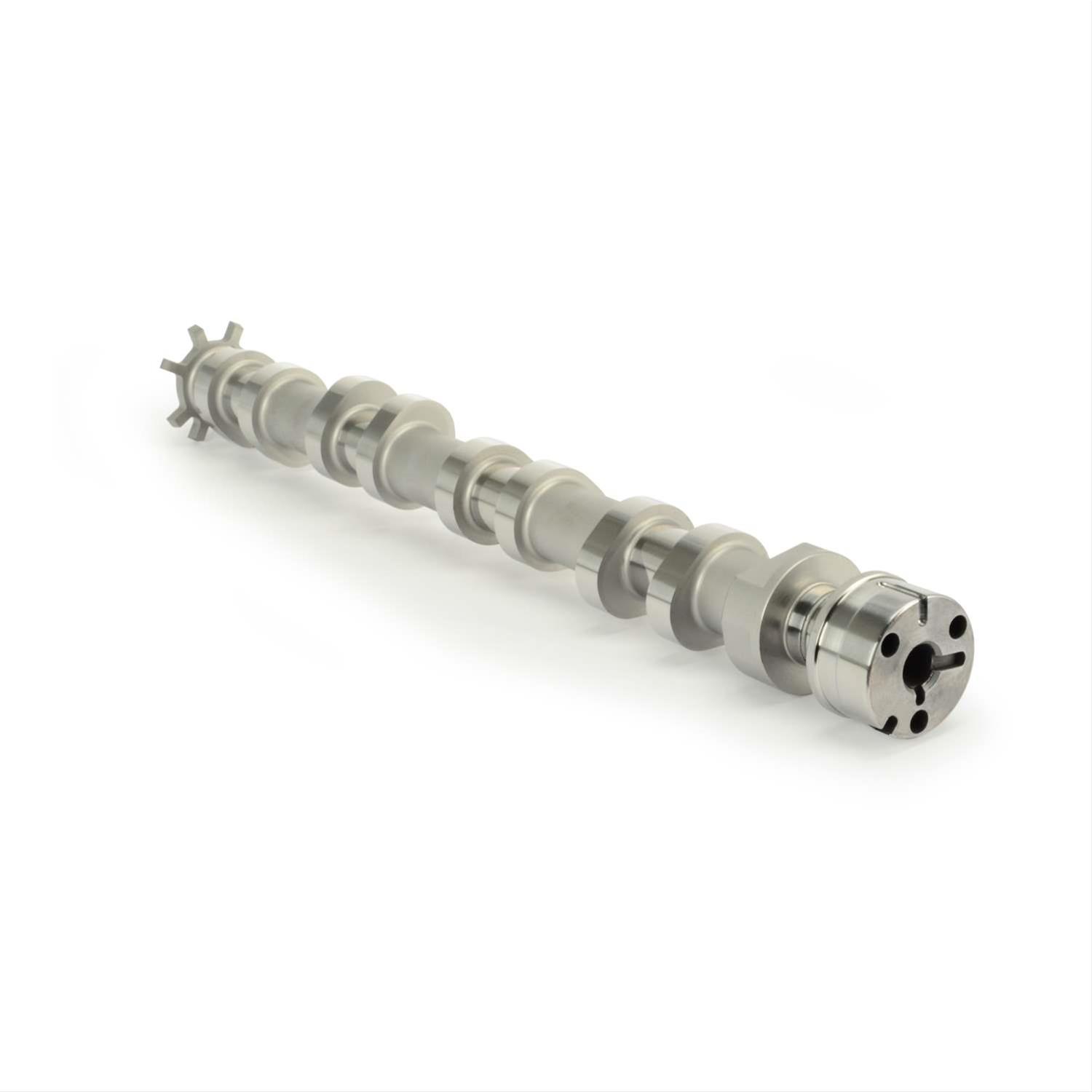

COMP Cams 2015+ Ford Mustang Coyote CR Series Camshaft 2000-7500
COMP Cams 2015+ Ford Mustang Coyote CR Series Camshaft 2000-7500
A$4,279.25
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The new CR Cam Series from COMP Cams is designed to greatly improve upon stock 2015 Coyote Camshafts and work without modifications to the engine's cylinder heads or phasers. COMP Cams 2015 Ford Mustang Coyote CR Series Camshafts are the first new Cam and core Series for 2015 and later Coyote engines. New lobes improve upon the 2011-2014 XFI Camshaft Series and feature faster ramps, more lift and more area under the lift curve. The cams work with stock 2015 valve springs and the new Ford mid-lock phaser system without requiring limiters or any other phaser modifications. Three grinds are available for naturally aspirated engines with two designed specifically for blower Applications.
Product Overview
Max effort street/strip grind for 2015+ Coyote modified applications that operate above the factory rev limiter.
Product Details
| Advertised Exhaust Duration: | 278 |
|---|---|
| Advertised Intake Duration: | 271 |
| Amazon ASIN: | B01M1NGGVH |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,000-7,600 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller Finger Follower |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | CR NSR (No Sprngs Required) |
| Description: | CR NSR 235/237 Hydraulic Roller Cams for ('15+) Ford 5.0L Coyote |
| Engine Family: | Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2015+) |
| Exhaust Duration at .050 inch Lift: | 237 |
| Exhaust Valve Lift: | 0.514 |
| Grind Number: | F5.0F CYR271NAH 131 |
| Intake Duration at .050 Inch Lift: | 235 |
| Intake Valve Lift: | 0.516 |
| Lifter Type: | Hydraulic Roller Finger Follower |
| Lifters Included: | No |
| Lobe Separation: | 131 |
| Part Number: | cca243440 |
| Title: | CR NSR 235/237 Hydraulic Roller Cams for ('15+) Ford 5.0L Coyote |
| Valve Springs Required: | No |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 243440
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams CR Series Camshafts
- Product Attributes - UPC
- 036584288893
- Product Attributes - Cam Style
- DOHC
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 2,000-7,600
- Product Attributes - Intake Duration at 050 inch Lift
- 235
- Product Attributes - Exhaust Duration at 050 inch Lift
- 237
- Product Attributes - Duration at 050 inch Lift
- 235 int./237 exh.
- Product Attributes - Advertised Intake Duration
- 271
- Product Attributes - Advertised Exhaust Duration
- 278
- Product Attributes - Advertised Duration
- 271 int./278 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.516 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.514 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.516 int./0.514 exh.
- Product Attributes - Lobe Separation (degrees)
- 131
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- F5.0F CYR271NAH 131
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold as a set of 4.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca243440 |
| SFX Item ID | 4124786 |
| Supplier Item Code | 4124786 |
| Manufacturer SKU | 243440 |
| Manufacturer UPC | N/A |
| Alternative References | s550;, gt350;, s197, CPC243440 |
