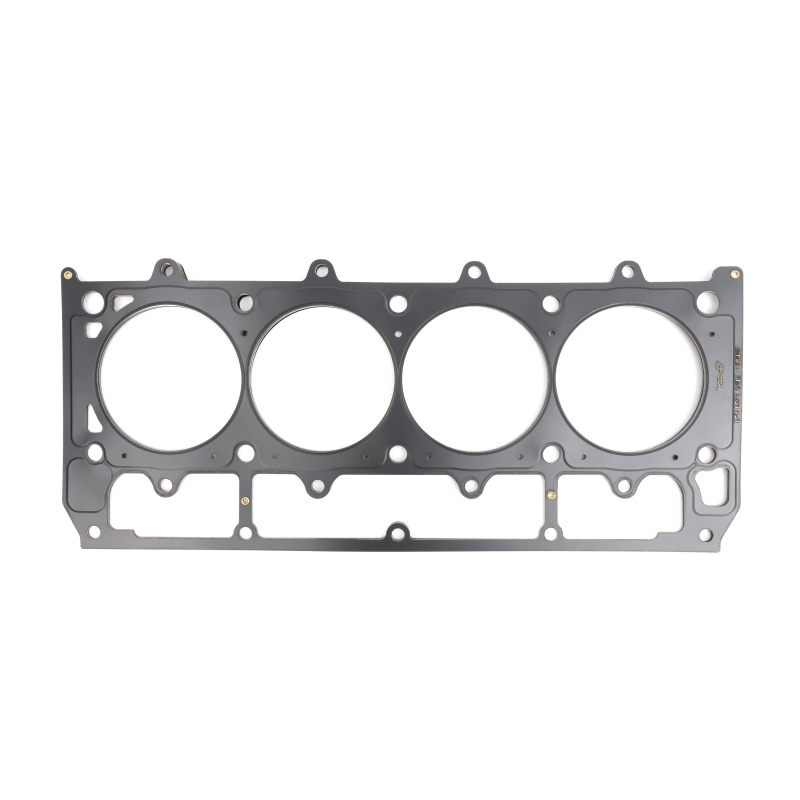

Cometic GM LSX LHS 4.15in Bore .052 in MLX 5-Layer Head Gasket
Cometic GM LSX LHS 4.15in Bore .052 in MLX 5-Layer Head Gasket
A$326.71
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MLX Gaskets utilize an integrated "stopper" layer for combustion chamber sealing
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Features and Benefits
- Embossed Outer Layers Coated w/Viton
Product Details
| Description: | GM LSX Gen-4 Small Block V8 Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | GM LSX Small Block |
| Part Number: | cgsC5703-052 |
| Position: | Left |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket Automotive GM LSX Gen-4 Small Block V8 .052 in MLX Cylinder Head Gasket, 4.165 in Bore, LHS |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Cylinder Head Gasket
Features
- Embossed Outer Layers Coated w/Viton
- Improved clamp load around the cylinder without increasing bore distortion
Specifications
- Product Attributes - Brand
- Cometic
- Product Attributes - Manufacturer's Part Number
- C5703-052
- Product Attributes - Part Type
- Head Gaskets
- Product Attributes - Product Line
- Cometic MLX Head Gaskets
- Product Attributes - UPC
- 00191070128623
- Product Attributes - Bore (in.)
- 4.150 in.
- Product Attributes - Bore (mm)
- 105.791mm
- Product Attributes - Gasket Material
- Multi-layer stainless steel
- Product Attributes - Compressed Thickness (in.)
- 0.052 in.
- Product Attributes - Compressed Volume (cc)
- 11.610cc
- Product Attributes - Lock Wire
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit LSX race engines with 18 bolt head. Driver side head gasket.
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC5703-052 |
| SFX Item ID | 4159409 |
| Supplier Item Code | 4159409 |
| Manufacturer SKU | C5703-052 |
| Manufacturer UPC | 191070128623 |
| Alternative References | cgt-c5703-052, CAGC5703-052, 4.15in, 5-Layer |
