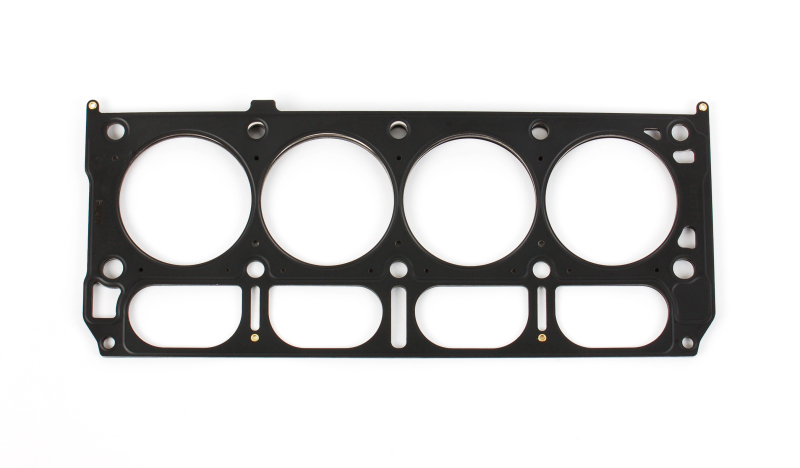

Cometic GM Gen 5 6.2L LT1 V8 4.10in Bore .051in MLX Head Gasket
Cometic GM Gen 5 6.2L LT1 V8 4.10in Bore .051in MLX Head Gasket
A$336.95
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Today's lightweight engines are producing more horsepower, higher cylinder pressures, clamp loads and extreme temperatures. Our commitment is to provide innovative, quality gaskets while maximizing your engine's power and performance. Cometic's gaskets are proudly made in the USA with materials manufactured on American soil. We are constantly updating and adding models to our ever growing library of gaskets for Powersports, Street Bikes, Snowmobiles, Harley-Davidson and V-Twin applications.
Product Overview
Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.
*MLS*
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, it’s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.
The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.
The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.
*CFM-20*
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.
*COPPER*
Features and Benefits
- Creates The Ability To Rebound And Resist Corrosion
Product Details
| Bore Diameter: | 4.100in |
|---|---|
| Description: | GM LT1/LT4 Gen-V Small Block V8 Cylinder Head Gasket |
| Engine Make/Size: | Chevy LT1 |
| OEM Part Number: | 12688943,12654622 |
| Part Number: | cgsC5038-051 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Warning Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Thickness: | .051in |
| Title: | Cometic Gasket Automotive GM LT1/LT4 Gen-V Small Block V8 .051 in MLX Cylinder Head Gasket, 4.100 in Bore |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Part Type
Engine Cylinder Head Gasket
Features
- Creates The Ability To Rebound And Resist Corrosion
- Improved clamp load around the cylinder without increasing bore distortion
Specifications
- Product Attributes - UPC
- 191070047306
- Product Attributes - Brand
- Cometic
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Bore (mm)
- 104.140mm
- Product Attributes - Lock Wire
- No
- Product Attributes - Part Type
- Head Gaskets
- Product Attributes - Bore (in.)
- 4.100 in.
- Product Attributes - Product Line
- Cometic MLX Head Gaskets
- Product Attributes - Gasket Material
- Multi-layer stainless steel
- Product Attributes - Compressed Volume (cc)
- 11.034cc
- Product Attributes - Compressed Thickness (in.)
- 0.051 in.
- Product Attributes - Manufacturer's Part Number
- C5038-051
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC5038-051 |
| SFX Item ID | 4160538 |
| Supplier Item Code | 4160538 |
| Manufacturer SKU | C5038-051 |
| Manufacturer UPC | 191070047306 |
| Alternative References | cgt-c5038-051, 6.2L, LT1, 4.10in, .051in |
Brochures
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
