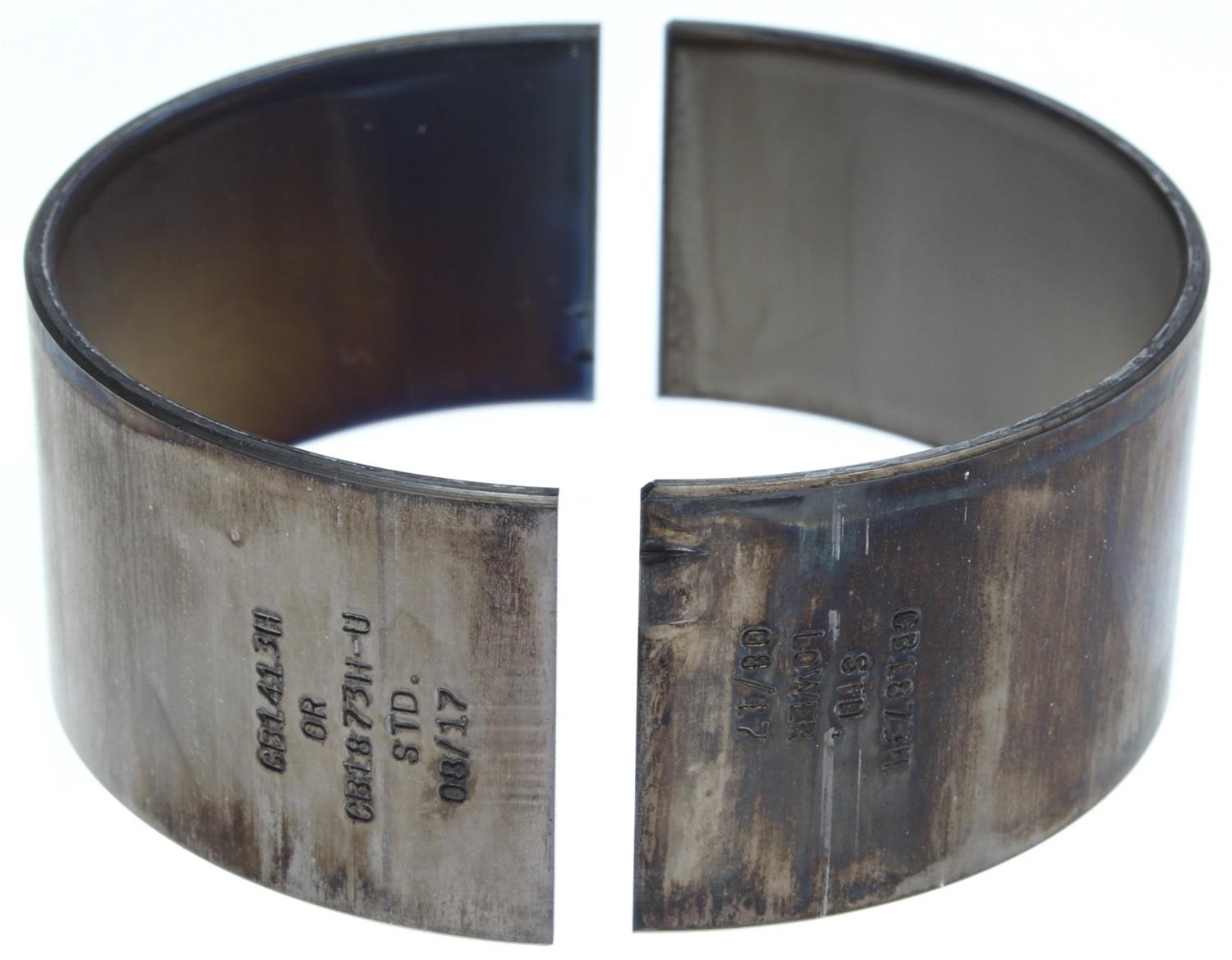

Clevite H-Series Rod Bearings CB-1873H Dodge / Cummins 6, 5.9L,6.7L, 2003-2010 (B series)

SKU: CLECB-1873H

Rod Bearings

Clevite

Clevite H-Series Rod Bearings CB-1873H Dodge / Cummins 6, 5.9L,6.7L, 2003-2010 (B series)

SKU: CLECB-1873H

Rod Bearings

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Clevite H-Series rod bearings were developed primarily for use in NASCAR type racing but are suitable for all types of competition engines. These H-Series bearings have a medium level of eccentricity, high crush factor, and have hardened steel backs and thin overlays. They also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.

Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes. H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.

Product Overview

Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.

Product Details

Bearing Item Grade:	High Performance
Bearing Material:	TM-112
Bearing O.D. or Housing Bore (max.):	2.8745
Bearing O.D. or Housing Bore (min.):	2.8735
Bearing Series:	H
Description:	Engine Connecting Rod Bearing Pair
Max. Length:	1.225
Max. Wall:	0.0775
Part Number:	cleCB1873H
Size:	Standard
Standard Shaft Diameter (max.):	2.7170
Standard Shaft Diameter (min.):	2.7160
Unit of Measure:	Inches
Vertical Oil Clearance (max.):	4.4999999999999997E-3
Vertical Oil Clearance (min.):	1.5E-3

Part Type

Engine Connecting Rod Bearing Pair

Data: v4.2 - Upd: 2026-10-14 10:28:46

Specifications

Product Attributes - Brand: Clevite Engine Parts
Product Attributes - Manufacturer's Part Number: CB-1873H
Product Attributes - Part Type: Rod Bearings
Product Attributes - Product Line: Clevite H-Series Rod Bearings
Product Attributes - UPC: 027067865236
Product Attributes - Bearing Usage: Performance
Product Attributes - Engine Crankshaft Undersize (in.): Stock
Product Attributes - Engine Crankshaft Undersize (mm): Stock
Product Attributes - Bearing Material: TM-112
Product Attributes - Dowel Pin Hole: No
Product Attributes - Narrow Bearing: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Clevite
StreetFX SKU	cleCB-1873H
SFX Item ID	4886280
Supplier Item Code	4886280
Manufacturer SKU	CB-1873H
Manufacturer UPC	27067865236
Alternative References	5.9L, 6.7L
