On sale

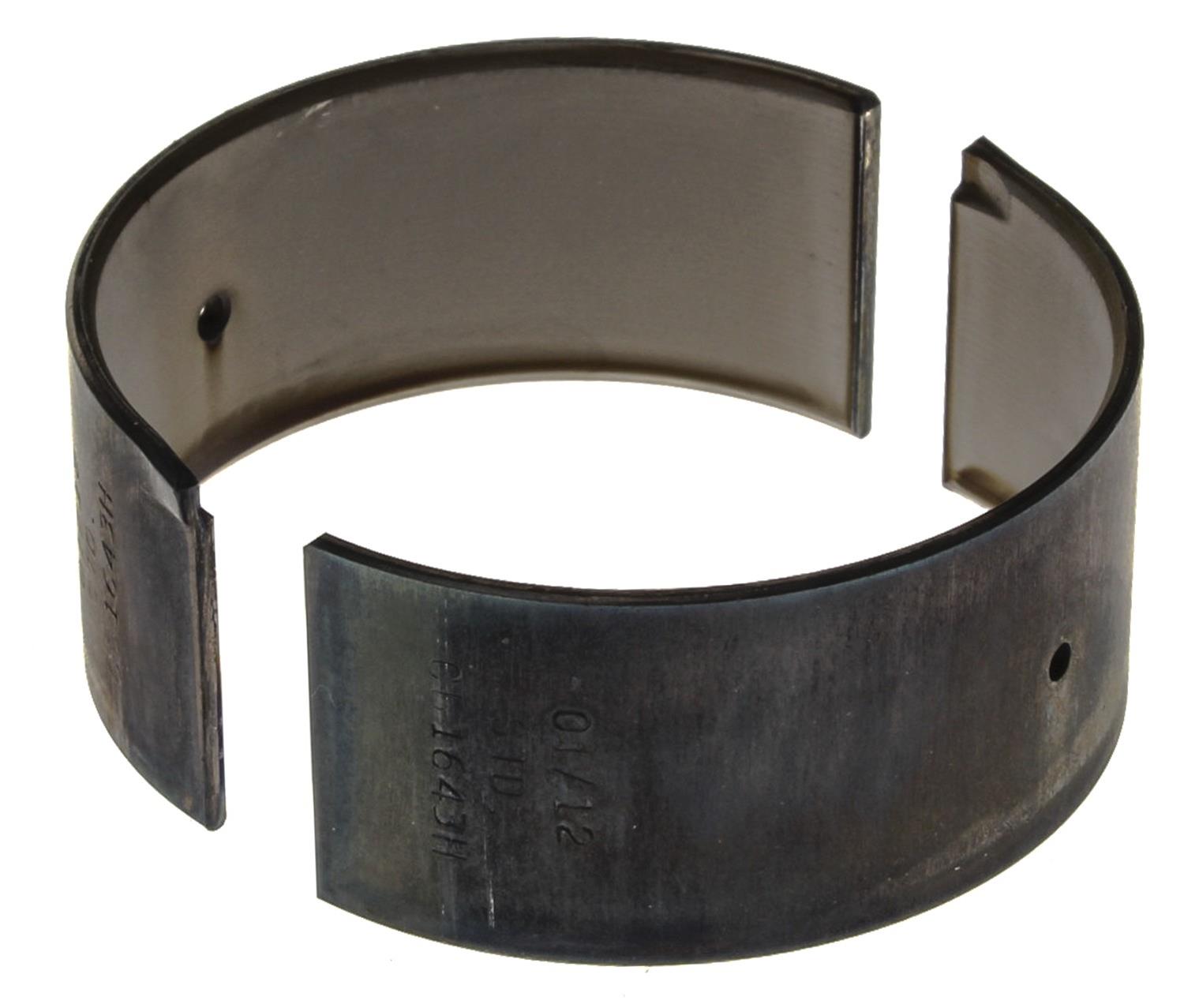

Clevite H-Series Rod Bearings CB-1643H Bearings, H-Series, Stock Size, TM-77, Mitsubishi, Each
Clevite H-Series Rod Bearings CB-1643H Bearings, H-Series, Stock Size, TM-77, Mitsubishi, Each
A$55.35
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Clevite H-Series rod bearings were developed primarily for use in NASCAR type racing but are suitable for all types of competition engines. These H-Series bearings have a medium level of eccentricity, high crush factor, and have hardened steel backs and thin overlays. They also have enlarged chamfers for greater crankshaft fillet clearance and are made without flash plating for better seating.
Bearings with .001 in. extra clearance are available for standard size shafts and with or without dowel holes. H-Series bearings are recommended for use with crankshafts that have oversize fillets and where engines run in the medium to high rpm range. They should also be used if contact patterns obtained with Clevite P-Series bearings are too narrow. Contact patterns should ideally cover 2/3 to 3/4 of the bearing surface.
Product Overview
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Product Details
| Bearing Item Grade: | High Performance |
|---|---|
| Bearing Material: | TM-77 |
| Bearing O.D. or Housing Bore (max.): | 1.8905 |
| Bearing O.D. or Housing Bore (min.): | 1.8897 |
| Description: | Engine Connecting Rod Bearing Pair |
| Max. Length: | 0.832 |
| Max. Wall: | 0.05888 |
| Part Number: | cleCB1643H |
| Size: | Standard |
| Standard Shaft Diameter (max.): | 1.7717 |
| Standard Shaft Diameter (min.): | 1.7710 |
| Unit of Measure: | Inches |
| Vertical Oil Clearance (max.): | 0.0025 |
| Vertical Oil Clearance (min.): | 0.0004 |
Part Type
Engine Connecting Rod Bearing Pair
Specifications
- Product Attributes - Brand
- Clevite Engine Parts
- Product Attributes - Manufacturer's Part Number
- CB-1643H
- Product Attributes - Part Type
- Rod Bearings
- Product Attributes - Product Line
- Clevite H-Series Rod Bearings
- Product Attributes - UPC
- 027067854834
- Product Attributes - Bearing Usage
- Performance
- Product Attributes - Engine Crankshaft Undersize (in.)
- Stock
- Product Attributes - Engine Crankshaft Undersize (mm)
- Stock
- Product Attributes - Bearing Material
- TM-77
- Product Attributes - Dowel Pin Hole
- No
- Product Attributes - Narrow Bearing
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Clevite |
|---|---|
| StreetFX SKU | cleCB-1643H |
| SFX Item ID | 4884640 |
| Supplier Item Code | 4884640 |
| Manufacturer SKU | CB-1643H |
| Manufacturer UPC | N/A |
| Alternative References | TM-77 |
