Classic Instruments 1978-88 G-Body Gauge Sets CH78OE06 Kit, Analog, Black Face, White/Yellow Numbers, Orange Pointer, with Overdrive Gear Indicator, Chevrolet, Kit
Classic Instruments 1978-88 G-Body Gauge Sets CH78OE06 Kit, Analog, Black Face, White/Yellow Numbers, Orange Pointer, with Overdrive Gear Indicator, Chevrolet, Kit
A$2,330.73
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

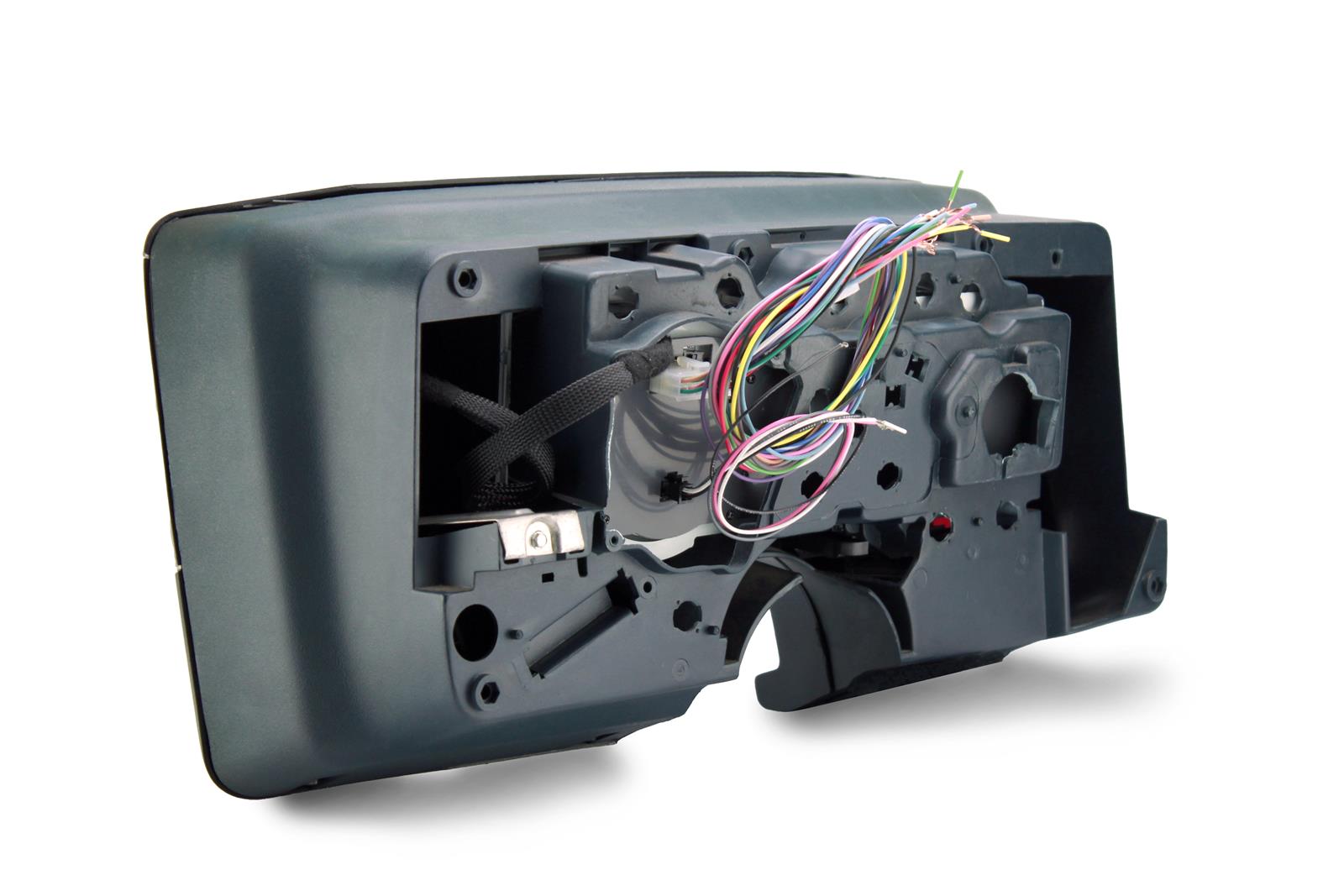

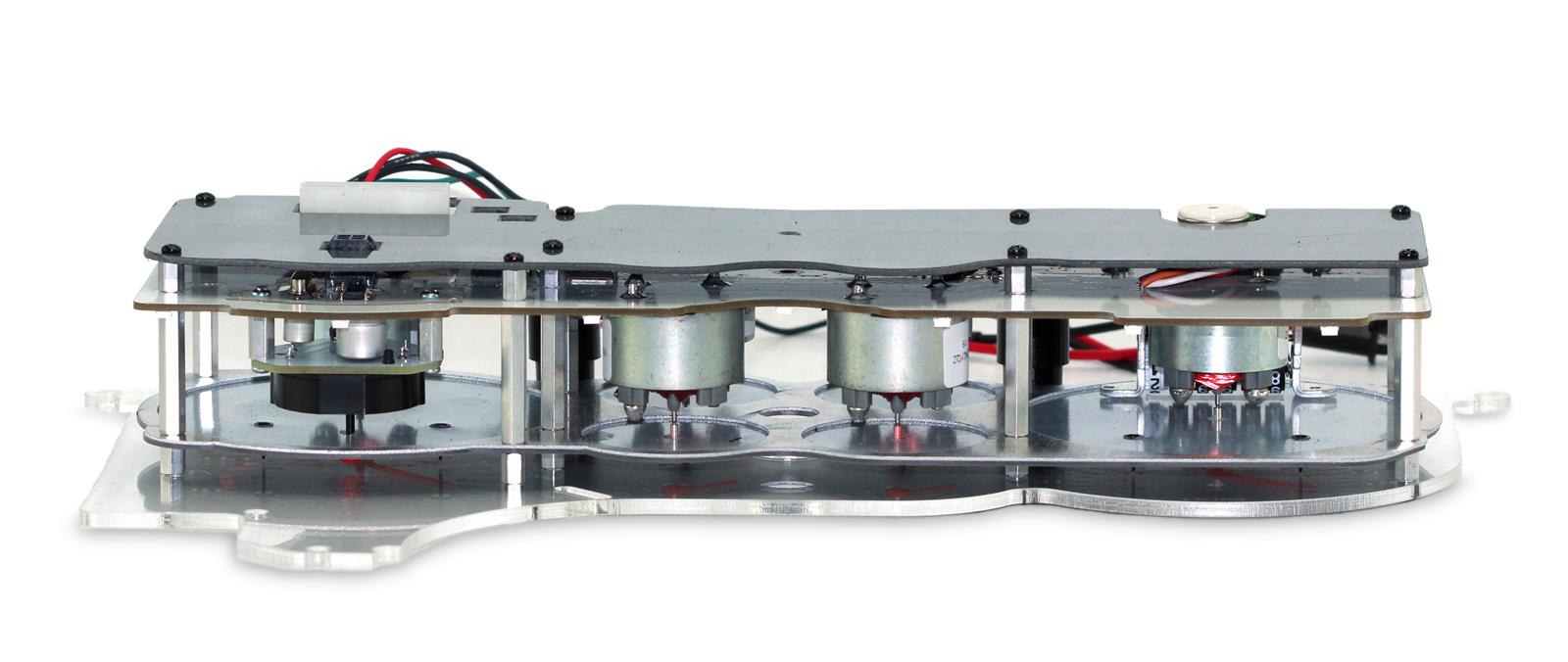

Classic Instruments' 1978-88 Chevy G-Body direct-fit packages are all-electric clusters featuring a speedometer, tachometer, clock, and fuel, oil, temp, and volt gauges in an OE style. These instruments are available either with or without gear position indicator, and with or without overdrive gear indicator for use with any transmission. Hybrid LED lighting offers the feel of the original perimeter lighting and the visual benefits of back-lighting: even illumination and clear nighttime readability. Turn signals and high beam indicators are in the original locations, and each kit includes new check engine and high beam sockets with LED bulbs. Additional indicator bulbs are available for purchase.
These kits also include: a wiring harness, push-button speedometer calibration for ease of setup, a new acrylic lens, and built-in ECM signal filter switch. Save space with Classic Instruments' Zeus Speedometer Technology built-in, meaning the cluster requires no external control boxes and works directly with ECM or VSS signals. The fuel gauge is programmable for any ohm range with a selector switch on the back of the cluster, meaning the fuel gauge will work with the stock sending unit, any other factory sending units, or any Classic Instruments fuel sending unit. All other necessary sending units are included in a Classic Instruments GM sending unit kit. Install using your existing diffuser. The gauge sets also fit 1982-87 GMC Caballero.
Features and benefits:
* All-electric cluster for ease of programming and installation
* OE Style to mimic original gauge cluster look
* Available with or without gear position indicator and with or without overdrive gear indicator for use with any transmission
* Hybrid lighting to match the original styling and perimeter lighting and improve visibility with backlighting
* Includes new check engine and high beam sockets with LED bulbs to replace original and provide power from the gauge circuit board
* Includes wiring harness and push-button calibration for programming and ease of installation
* Includes new acrylic lens to replace original
* Built-in ECM signal filter switch to remove signal noise for smoother speedometer operation
* Built-in Zeus Speedometer Technology, no external control boxes needed, and will work with any available speed signals
* Includes Classic Instruments' GM sending unit kit—complete, no separately purchased parts
* Installs with customers' existing diffuser for original look
* Dash housing not included
* Consider adding the Holley Easy Level sender, part number 19-250
Part Type
78-88 G-Body Gauge KIt
Specifications
- Product Attributes - Brand
- Classic Instruments
- Product Attributes - Manufacturer's Part Number
- CH78OE06
- Product Attributes - Part Type
- Gauge Kits and Instrument Clusters
- Product Attributes - Product Line
- Classic Instruments 1978-88 G-Body Gauge Sets
- Product Attributes - UPC
- 090127844809
- Product Attributes - Gauge Style
- Analog
- Product Attributes - Gauge Face Color
- Black
- Product Attributes - Gauge Number Color
- White/Yellow
- Product Attributes - Tachometer Included
- Yes
- Product Attributes - Speedometer Included
- Yes
- Product Attributes - Oil Pressure Gauge Included
- Yes
- Product Attributes - Water Temperature Gauge Included
- Yes
- Product Attributes - Voltage Gauge Included
- Yes
- Product Attributes - Fuel Level Gauge Included
- Yes
- Product Attributes - Clock Included
- Yes
- Product Attributes - Boost Gauge Included
- No
- Product Attributes - Pyrometer Included
- No
- Product Attributes - Transmission Temperature Gauge Included
- No
- Product Attributes - Oil Temperature Gauge Included
- No
- Product Attributes - Water Pressure Gauge Included
- No
- Product Attributes - Ammeter Gauge Included
- No
- Product Attributes - Fuel Pressure Gauge Included
- No
- Product Attributes - Brake Bias Gauge Included
- No
- Product Attributes - Trim Gauge Included
- No
- Product Attributes - Hour Meter Included
- No
- Product Attributes - Pointer Color
- Orange
- Product Attributes - Illuminated
- Yes
- Product Attributes - Warning Lights Included
- Yes
- Product Attributes - Gauge Panel Included
- Yes
- Product Attributes - Gauge Panel Material
- Plastic
- Product Attributes - Gauge Panel Color
- Black
- Product Attributes - Gauge Pod Included
- No
- Product Attributes - Gauge Type Note
- See application page for specific gauge and sending unit information.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes gear indicator with overdrive.
Reference Information
| Brand Name/s | Classic Instruments |
|---|---|
| StreetFX SKU | cinCH78OE06 |
| SFX Item ID | 4855634 |
| Supplier Item Code | 4855634 |
| Manufacturer SKU | CH78OE06 |
| Manufacturer UPC | 90127844809 |
| Alternative References | CLACH78OE06 |
