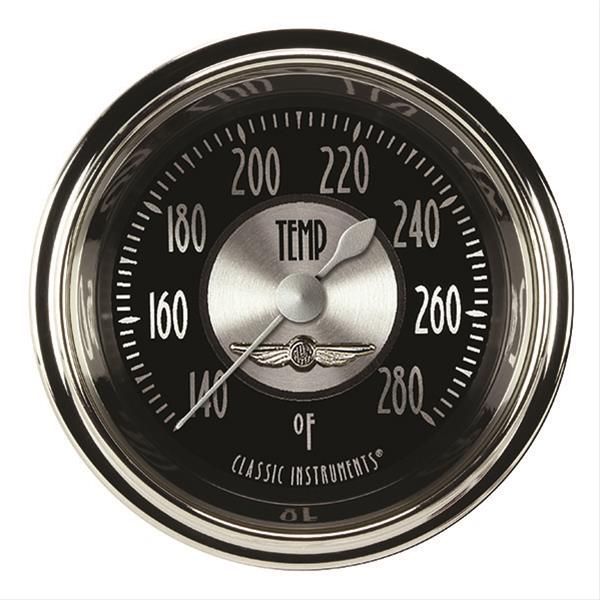

Classic Instruments All-American Tradition Series Gauges AT126SHC-08 Gauge, Analog, Series, Water Temp, 140-280 Degrees F, 2 1/8 in. Diameter, Black Face, Full Sweep, Each
Classic Instruments All-American Tradition Series Gauges AT126SHC-08 Gauge, Analog, Series, Water Temp, 140-280 Degrees F, 2 1/8 in. Diameter, Black Face, Full Sweep, Each
A$596.08
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
IMPORTANT NOTICE: Features include temperature sending unit, LED lighting, analog 0.5-4.5V DC output for data logging, push-button calibration, and rugged air core movement combined with microprocessor technology. Gauge has integrated red warning light, illuminates entire gauge when activated. Installation hardware and wiring harness included.
Classic Instruments All-American Tradition Series gauges withstand the test of time! They will grace your dash with clean lines and rich accents of deep black backgrounds, spun centers, teardrop pointers, and elegant winged emblems. Surrounded by stainless steel high step bezels and curved glass lenses, they also possess the technology for precise, accurate readings. All-American Tradition Series individual gauges are offered in different sizes and sweeps, and a wide range of gauge types to fill your dash with just the instruments you need.
Features include:
* Rugged air core movement for durability
* Microprocessor technology for precision
* Full sweep instruments provide increased accuracy
* Push-button calibration
* Integrated red warning light illuminates entire gauge red when activated
* Warning light output for additional warning indicator lights
* Analog .5 to 4.5 VDC output for data logging systems
* LED lighting
Part Type
Gauges
Specifications
- Product Attributes - Brand
- Classic Instruments
- Product Attributes - Manufacturer's Part Number
- AT126SHC-08
- Product Attributes - Part Type
- Gauges
- Product Attributes - Product Line
- Classic Instruments All-American Tradition Series Gauges
- Product Attributes - UPC
- 090127620434
- Product Attributes - Gauge Type
- Water temperature
- Product Attributes - OEM Replacement
- No
- Product Attributes - Gauge Style
- Analog
- Product Attributes - Sending Unit
- Electrical
- Product Attributes - Gauge Diameter (in.)
- 2 1/8 in.
- Product Attributes - Gauge Diameter (mm)
- 54mm
- Product Attributes - Gauge Range
- 140-280 degrees F
- Product Attributes - Gauge Shape
- Round
- Product Attributes - Sweep
- Full sweep
- Product Attributes - Gauge Face Color
- Black
- Product Attributes - Gauge Number Color
- Silver
- Product Attributes - Pointer Color
- White
- Product Attributes - Bezel Color
- Stainless steel
- Product Attributes - Illuminated
- Yes
- Product Attributes - Memory Recall
- No
- Product Attributes - Playback
- No
- Product Attributes - Liquid-Filled
- No
- Product Attributes - Shift Light Included
- No
- Product Attributes - Tripometer
- No
- Product Attributes - Sending Unit Included
- Yes
- Product Attributes - Sending Unit Thread Size
- 1/2 in. NPT
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Features include temperature sending unit, LED lighting, analog 0.5-4.5V DC output for data logging, push-button calibration, and rugged air core movement combined with microprocessor technology. Gauge has integrated red warning light, illuminates entire gauge when activated. Installation hardware and wiring harness included.
Reference Information
| Brand Name/s | Classic Instruments |
|---|---|
| StreetFX SKU | cinAT126SHC-08 |
| SFX Item ID | 4854478 |
| Supplier Item Code | 4854478 |
| Manufacturer SKU | AT126SHC-08 |
| Manufacturer UPC | N/A |
