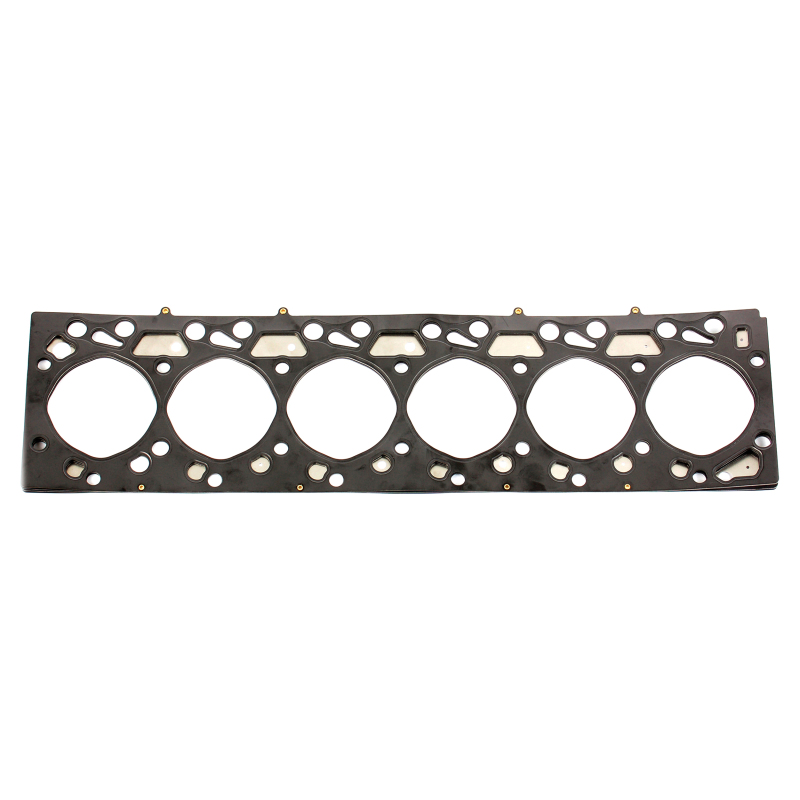

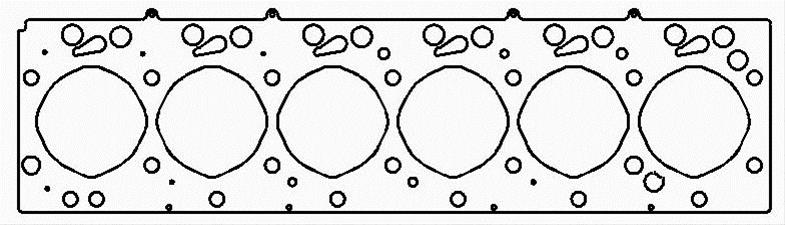

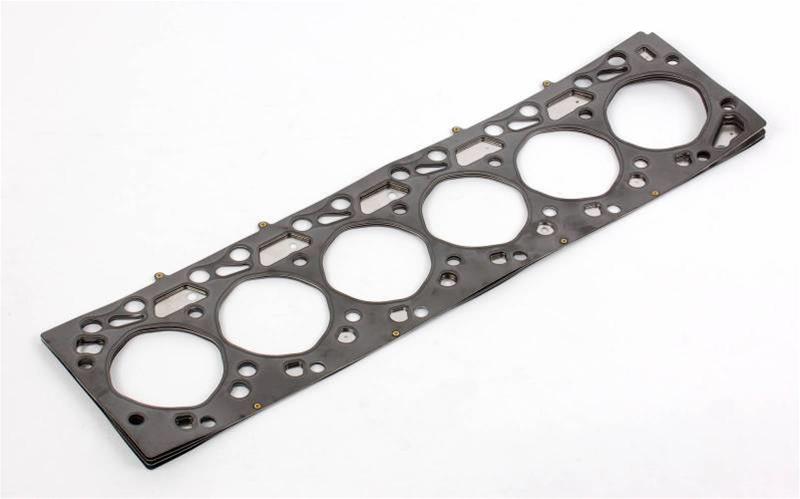

Cometic 03-08 Dodge Cummins 5.9L 24v Common Rail 4.100in Bore .061 MLX Head Gasket
Cometic 03-08 Dodge Cummins 5.9L 24v Common Rail 4.100in Bore .061 MLX Head Gasket
A$615.80
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
MLX Gaskets utilize an integrated "stopper" layer for combustion chamber sealing
Product Overview
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Features and Benefits
- Requires No Sealants Or Re-Torque
Product Details
| Description: | Cylinder Head Gasket |
|---|---|
| Engine Make/Size: | Cummins 5.9L |
| Part Number: | cgsC5597-061 |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Title: | Cometic Gasket Cummins 5.9L ISB CR Cylinder Head Gasket |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Additional Information
24-Valve ISB Inline-6 common rail
Part Type
Engine Cylinder Head Gasket
Features
- Improved clamp load around the cylinder without increasing bore distortion
- Requires No Sealants Or Re-Torque
Specifications
- Product Attributes - Brand
- Cometic
- Product Attributes - Manufacturer's Part Number
- C5597-061
- Product Attributes - Part Type
- Head Gaskets
- Product Attributes - Product Line
- Cometic MLX Head Gaskets
- Product Attributes - UPC
- 191070037581
- Product Attributes - Bore (in.)
- 4.100 in.
- Product Attributes - Bore (mm)
- 104.140mm
- Product Attributes - Gasket Material
- Multi-layer stainless steel
- Product Attributes - Compressed Thickness (in.)
- 0.061 in.
- Product Attributes - Compressed Volume (cc)
- 13.197cc
- Product Attributes - Lock Wire
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Models equipped with common rail fuel injection.
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC5597-061 |
| SFX Item ID | 4159164 |
| Supplier Item Code | 4159164 |
| Manufacturer SKU | C5597-061 |
| Manufacturer UPC | 191070037581 |
| Alternative References | CAGC5597-061, CGT-C5597-061, 5.9L, 24v, 4.100in |
