Cometic Gasket

Cometic Gasket

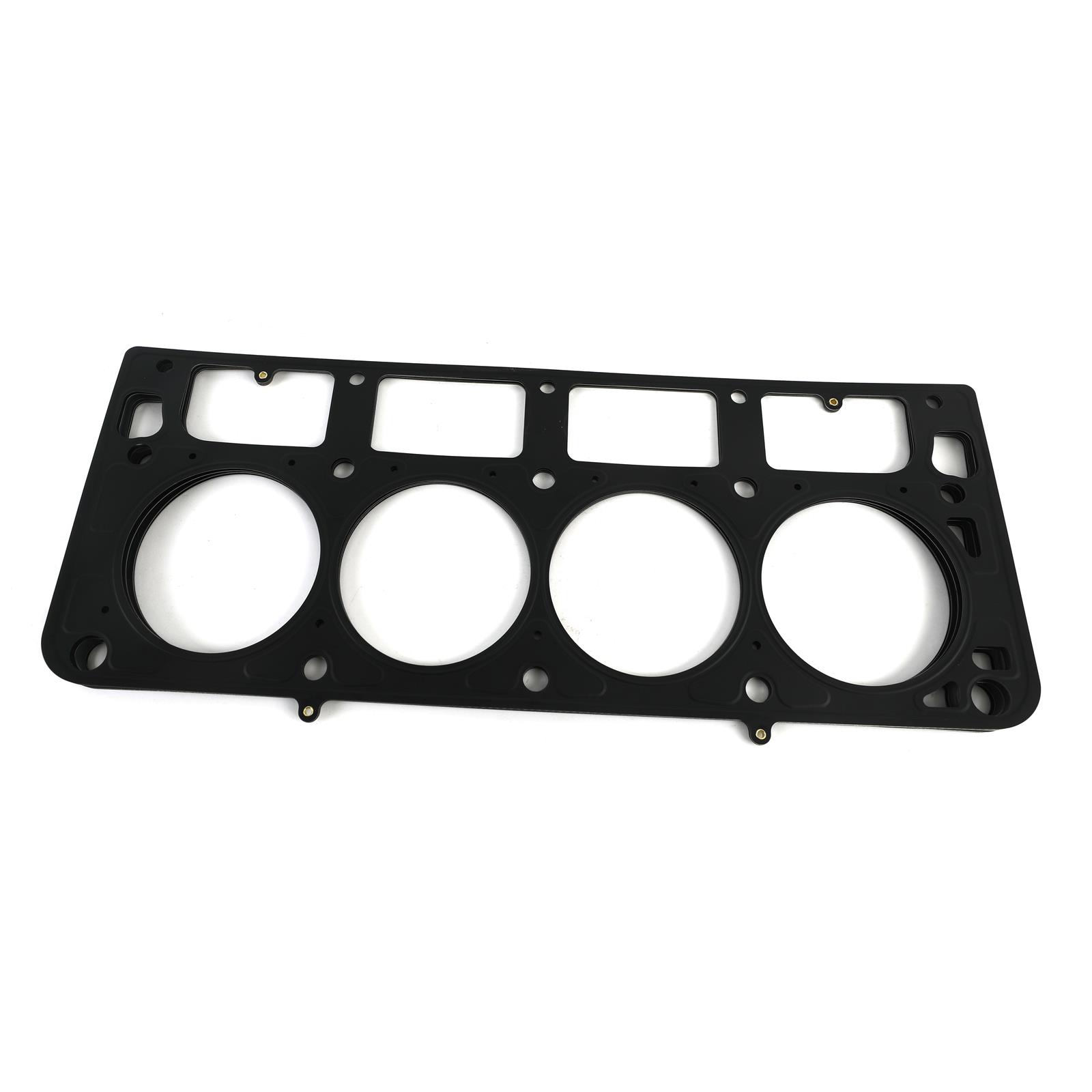

Cometic GM LS Gen-3/4 Small Block V8 .060in MLS Cylinder Head Gasket - 4.000in Bore

SKU: CGSC5477-060

Head Gaskets

CG Head Gaskets...

Cometic GM LS Gen-3/4 Small Block V8 .060in MLS Cylinder Head Gasket - 4.000in Bore
Cometic Gasket

Cometic Gasket

Cometic GM LS Gen-3/4 Small Block V8 .060in MLS Cylinder Head Gasket - 4.000in Bore

SKU: CGSC5477-060

Head Gaskets

CG Head Gaskets...

A$344.72
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel

Product Overview

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.


Features and Benefits

  • Embossed Outer Layers Coated w/Viton

Product Details

Description:GM LS1/LS2/LS3/LS6 Gen-3/4 Small Block V8 Cylinder Head Gasket
Engine Make/Size:GM Gen III/IV LS Series
Part Number:cgsC5477-060
Prop 65 (C, R or CR):CR
Prop 65 - Short Label:Prop_65.jpg
Prop 65 Warning Label:Prop_65.jpg
Prop 65 Yes/No:Yes
Title:Cometic Gasket Automotive GM LS Gen-3/4 Small Block V8 .060 in MLS Cylinder Head Gasket, 4.000 in Bore
WARNING CA Proposition 65 Message:The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov
WARNING CA Proposition 65:Yes

Part Type

Engine Cylinder Head Gasket

Data: v4.2 - Upd: 2026-10-14 00:03:56

Features

  • Conforms load distribution across the sealing area
  • Embossed Outer Layers Coated w/Viton
  • Requires less clamp load creating less bore distortion
  • The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
  • The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes

Specifications

Product Attributes - Brand
Cometic
Product Attributes - Manufacturer's Part Number
C5477-060
Product Attributes - Part Type
Head Gaskets
Product Attributes - Product Line
Cometic MLS Head Gaskets
Product Attributes - UPC
00191070132705
Product Attributes - Bore (in.)
4.000 in.
Product Attributes - Bore (mm)
101.600mm
Product Attributes - Gasket Material
Multi-layer steel
Product Attributes - Compressed Thickness (in.)
0.060 in.
Product Attributes - Lock Wire
No
Product Attributes - Quantity
Sold individually.

Reference Information

Brand Name/s Cometic Gasket
StreetFX SKU cgsC5477-060
SFX Item ID 4171340
Supplier Item Code 4171340
Manufacturer SKU C5477-060
Manufacturer UPC 191070132705
Alternative References CGT-C5477-060, Gen-3/4, .060in, 4.000in

Brochures

Compatibility

Application Data
  • MakeCADILLAC
    ModelCTS
    SubmodelV
    Beginning Year2004
    Ending Year2005
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/346
    Engine VIN CodeS
  • MakeCADILLAC
    ModelCTS
    SubmodelV
    Beginning Year2006
    Ending Year2007
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.0L/364
    Engine VIN CodeU
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelSS
    Beginning Year2010
    Ending Year2015
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.2L/376
    Engine VIN CodeJ
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelSS
    Beginning Year2010
    Ending Year2015
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.2L/376
    Engine VIN CodeW
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28
    Beginning Year1998
    Ending Year2002
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakeCHEVROLET
    ModelCAMARO
    SubmodelZ28 SS
    Beginning Year1998
    Ending Year2002
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakeCHEVROLET
    ModelCORVETTE
    Submodel50TH ANNIVERSARY EDITION
    Beginning Year2003
    Ending Year2003
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakeCHEVROLET
    ModelCORVETTE
    Submodel50TH ANNIVERSARY EDITION PACE CAR
    Beginning Year2003
    Ending Year2003
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year1997
    Ending Year2004
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year2005
    Ending Year2007
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.0L/364
    Engine VIN CodeU
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelBASE
    Beginning Year2008
    Ending Year2013
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.2L/376
    Engine VIN CodeW
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelGRAND SPORT
    Beginning Year2010
    Ending Year2013
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.2L/376
    Engine VIN CodeW
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelINDIANAPOLIS 500 PACE CAR
    Beginning Year1998
    Ending Year1998
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakeCHEVROLET
    ModelCORVETTE
    SubmodelZ06
    Beginning Year2001
    Ending Year2004
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeS
  • MakeCHEVROLET
    ModelSS
    SubmodelBASE
    Beginning Year2014
    Ending Year2017
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.2L/376
    Engine VIN CodeW
  • MakeCHEVROLET
    ModelSSR
    SubmodelBASE
    Beginning Year2005
    Ending Year2006
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.0L/364
    Engine VIN CodeH
  • MakeCHEVROLET
    ModelTRAILBLAZER
    SubmodelSS
    Beginning Year2006
    Ending Year2009
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.0L/364
    Engine VIN CodeH
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelFORMULA
    Beginning Year1998
    Ending Year2002
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakePONTIAC
    ModelFIREBIRD
    SubmodelTRANS AM
    Beginning Year1998
    Ending Year2002
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakePONTIAC
    ModelG8
    SubmodelGXP
    Beginning Year2009
    Ending Year2009
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.2L/376
    Engine VIN CodeW
  • MakePONTIAC
    ModelGTO
    SubmodelBASE
    Beginning Year2004
    Ending Year2004
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size5.7L/350
    Engine VIN CodeG
  • MakePONTIAC
    ModelGTO
    SubmodelBASE
    Beginning Year2005
    Ending Year2006
    Engine TypeV8
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
    Engine Size6.0L/364
    Engine VIN CodeU

Loading compatibility information...
