Cometic Gasket

Cometic Gasket

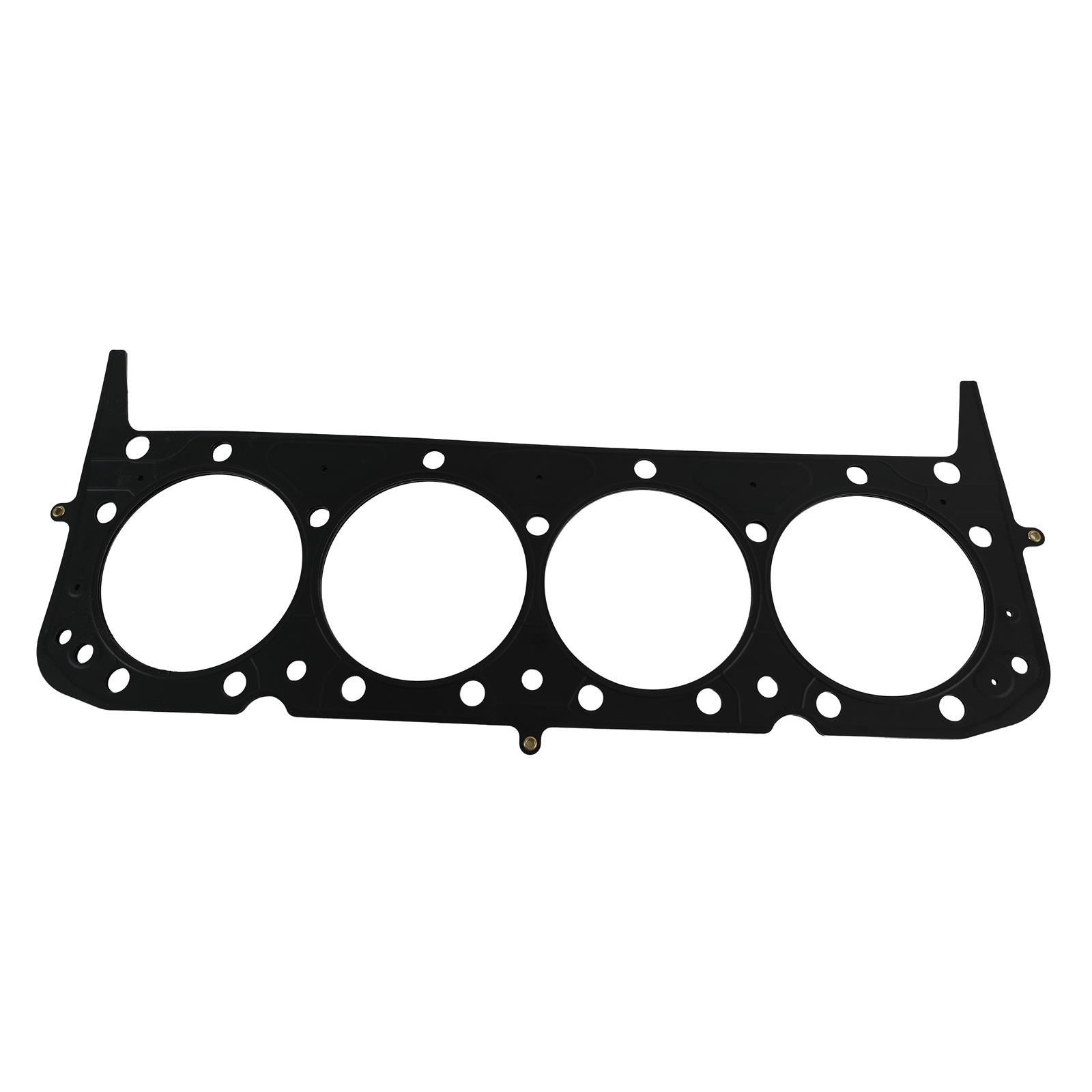

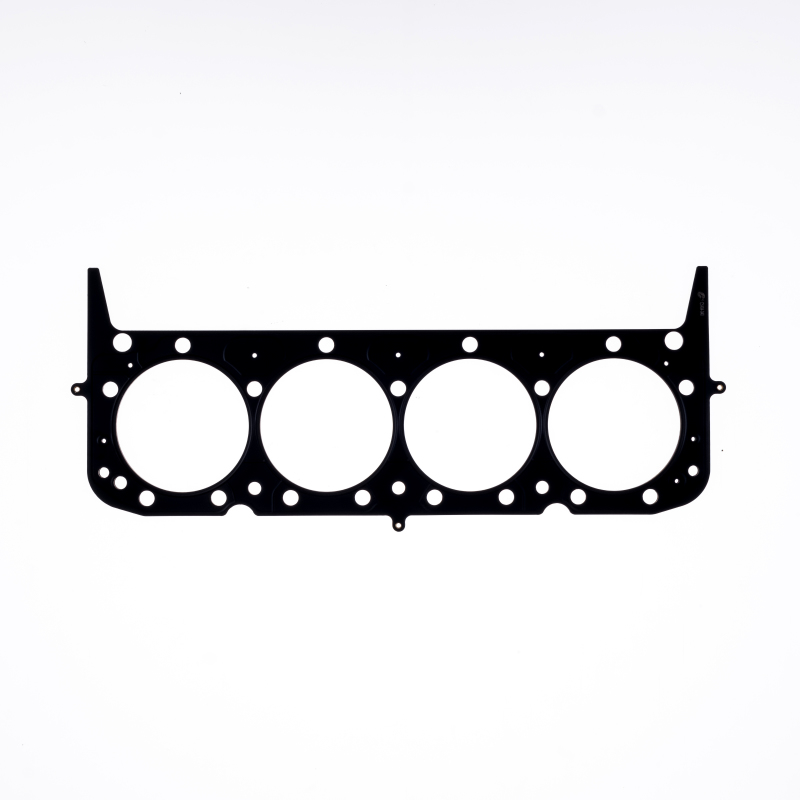

Cometic Chevrolet Gen-1 Small Block V8 BRODIX BD2000 Heads 4.030in Bore .027in MLS Head Gasket

SKU: CGSC5404-027

Head Gaskets

CG Head Gaskets...

Cometic Chevrolet Gen-1 Small Block V8 BRODIX BD2000 Heads 4.030in Bore .027in MLS Head Gasket
Cometic Gasket

Cometic Gasket

Cometic Chevrolet Gen-1 Small Block V8 BRODIX BD2000 Heads 4.030in Bore .027in MLS Head Gasket

SKU: CGSC5404-027

Head Gaskets

CG Head Gaskets...

A$230.96
LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel

Product Overview

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.


Features and Benefits

  • Embossed Outer Layers Coated w/Viton

Product Details

Description:Chevrolet Gen-1 Small Block V8 Cylinder Head Gasket
Engine Make/Size:Chevrolet Small Block Gen I
Part Number:cgsC5404-027
Prop 65 (C, R or CR):CR
Prop 65 - Short Label:Prop_65.jpg
Prop 65 Warning Label:Prop_65.jpg
Prop 65 Yes/No:Yes
Title:Cometic Automotive Chevrolet Gen-1 Small Block V8 Cylinder Head Gasket
WARNING CA Proposition 65 Message:The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov
WARNING CA Proposition 65:Yes

Part Type

Engine Cylinder Head Gasket

Data: v4.2 - Upd: 2026-10-14 00:11:50

Features

  • Conforms load distribution across the sealing area
  • Embossed Outer Layers Coated w/Viton
  • Requires less clamp load creating less bore distortion
  • The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
  • The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes

Specifications

Product Attributes - Brand
Cometic
Product Attributes - Manufacturer's Part Number
C5404-027
Product Attributes - Part Type
Head Gaskets
Product Attributes - Product Line
Cometic MLS Head Gaskets
Product Attributes - UPC
00191070125967
Product Attributes - Bore (in.)
4.030 in.
Product Attributes - Bore (mm)
102.362mm
Product Attributes - Gasket Material
Multi-layer stainless steel
Product Attributes - Compressed Thickness (in.)
0.027 in.
Product Attributes - Compressed Volume (cc)
5.644cc
Product Attributes - Lock Wire
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Designed for use with Brodix BD 2000 heads.

Reference Information

Brand Name/s Cometic Gasket
StreetFX SKU cgsC5404-027
SFX Item ID 4162048
Supplier Item Code 4162048
Manufacturer SKU C5404-027
Manufacturer UPC 191070125967
Alternative References CGT-C5404-027, Gen-1, BD2000, 4.030in, .027in

Brochures

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1955
    Ending Year1957
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size4.3L/265
  • MakeCHEVROLET
    Beginning Year1957
    Ending Year1967
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size4.6L/283
  • MakeCHEVROLET
    Beginning Year1962
    Ending Year1969
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size5.3L/327
  • MakeCHEVROLET
    Beginning Year1964
    Ending Year1967
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size5.4L/327
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year1969
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size4.9L/302
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year2002
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size5.7L/350
  • MakeCHEVROLET
    Beginning Year1968
    Ending Year1973
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size5.0L/307
  • MakeCHEVROLET
    Beginning Year1975
    Ending Year1976
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size4.3L/262
  • MakeCHEVROLET
    Beginning Year1976
    Ending Year2002
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size5.0L/305
  • MakeCHEVROLET
    Beginning Year1979
    Ending Year1982
    Engine TypeV8
    Engine FamilyChevy small block Gen I
    Engine Size4.4L/267
