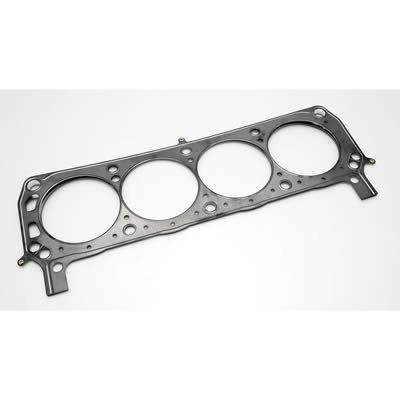

Cometic Coventry Climax FWA .059in CFM-20 Cylinder Head Gasket - 74mm Bore

SKU: CGSC4301-059

Head Gaskets

CG Head Gaskets...

Cometic Gasket

Cometic Coventry Climax FWA .059in CFM-20 Cylinder Head Gasket - 74mm Bore

SKU: CGSC4301-059

Head Gaskets

CG Head Gaskets...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Utilizes a steel reinforced fiber material with steel fire rings at each bore to seal off the combustion chamber. Cometic CFM is a perforated-galvanized steel core with an asbestos-free fiber material that is applied to both sides.

Product Overview

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs. *MLS* The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, itâ€™s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F. The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks. The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion. *CFM-20* A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils. *COPPER*

Features and Benefits

Asbestos-Free Fiber Material

Product Details

Bore Diameter:	74mm
Description:	Coventry Climax FWA Cylinder Head Gasket
Engine Make/Size:	Coventry Climax 1.1L
Engine:	Coventry Climax 1.1L FWA SOHC
Material:	CFM-20
Part Number:	cgsC4301-059
Position:	N/A
Prop 65 (C, R or CR):	CR
Prop 65 - Short Label:	Prop_65.jpg
Prop 65 Warning Label:	Prop_65.jpg
Prop 65 Yes/No:	Yes
Thickness:	.059in
Title:	Cometic Gasket Automotive Coventry Climax FWA .059 in CFM-20 Cylinder Head Gasket, 74mm Bore
WARNING CA Proposition 65 Message:	The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Part Type

Engine Cylinder Head Gasket

Data: v4.2 - Upd: 2026-10-14 00:02:27

Features

Asbestos-Free Fiber Material
Conforms load distribution across the sealing area
Creates less bore distortion
No sealants or re-torque required

Specifications

Product Attributes - Brand: Cometic
Product Attributes - Manufacturer's Part Number: C4301-059
Product Attributes - Part Type: Head Gaskets
Product Attributes - Product Line: Cometic CFM-20 Head Gaskets
Product Attributes - UPC: 191070108991
Product Attributes - Bore (in.): 2.913 in.
Product Attributes - Bore (mm): 74.000mm
Product Attributes - Gasket Material: CFM-20
Product Attributes - Compressed Thickness (in.): 0.059 in.
Product Attributes - Compressed Volume (cc): 6.445cc
Product Attributes - Lock Wire: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Conventry Climax FWA SOHC 1.1L.

Reference Information

Brand Name/s	Cometic Gasket
StreetFX SKU	cgsC4301-059
SFX Item ID	4172391
Supplier Item Code	4172391
Manufacturer SKU	C4301-059
Manufacturer UPC	191070108991
Alternative References	CGT-C4301-059, .059in, CFM-20, 74mm
