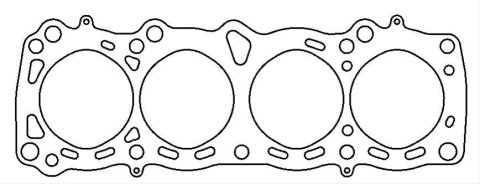

Cometic Nissan E13S/E15ET/E15S/E16i/E16S/E16ST .060in Head Gasket -77mm Bore

SKU: CGSC4178-060

Head Gaskets

CG Head Gaskets...

Cometic Gasket

Cometic Nissan E13S/E15ET/E15S/E16i/E16S/E16ST .060in Head Gasket -77mm Bore

SKU: CGSC4178-060

Head Gaskets

CG Head Gaskets...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Requires less clamp load

Product Overview

Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs. *MLS* The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, itâ€™s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F. The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks. The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion. *CFM-20* A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils. *COPPER*

Features and Benefits

Embossed Outer Layers Coated w/Viton

Product Details

Bore Diameter:	77mm
Description:	Nissan E13S/E15ET/E15S/E16i/E16S/E16ST Cylinder Head Gasket
Engine Make/Size:	Nissan E15/E15S/E15T 1.5L
Engine:	Nissan E15/E15S/E15T 1.5L SOHC 1980-94
OEM Part Number:	11044-33M10
Part Number:	cgsC4178-060
Position:	N/A
Prop 65 (C, R or CR):	CR
Prop 65 - Short Label:	Prop_65.jpg
Prop 65 Warning Label:	Prop_65.jpg
Prop 65 Yes/No:	Yes
Thickness:	.060in
Title:	Cometic Automotive Nissan E13S/E15ET/E15S/E16i/E16S/E16ST Cylinder Head Gasket
WARNING CA Proposition 65 Message:	The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Part Type

Engine Cylinder Head Gasket

Data: v4.2 - Upd: 2026-10-14 00:11:01

Features

Conforms load distribution across the sealing area
Creates less bore distortion
Embossed Outer Layers Coated w/Viton
No sealants or re-torque required

Specifications

Product Attributes - Brand: Cometic
Product Attributes - Manufacturer's Part Number: C4178-060
Product Attributes - Part Type: Head Gaskets
Product Attributes - Product Line: Cometic MLS Head Gaskets
Product Attributes - UPC: 191070102531
Product Attributes - Bore (in.): 3.051 in.
Product Attributes - Bore (mm): 77.500mm
Product Attributes - Gasket Material: Multi-layer stainless steel
Product Attributes - Compressed Thickness (in.): 0.060 in.
Product Attributes - Compressed Volume (cc): 7.188cc
Product Attributes - Lock Wire: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Cometic Gasket
StreetFX SKU	cgsC4178-060
SFX Item ID	4162324
Supplier Item Code	4162324
Manufacturer SKU	C4178-060
Manufacturer UPC	191070102531
Alternative References	CGT-C4178-060, E13S/E15ET/E15S/E16i/E16S/E16ST, .060in, -77mm
