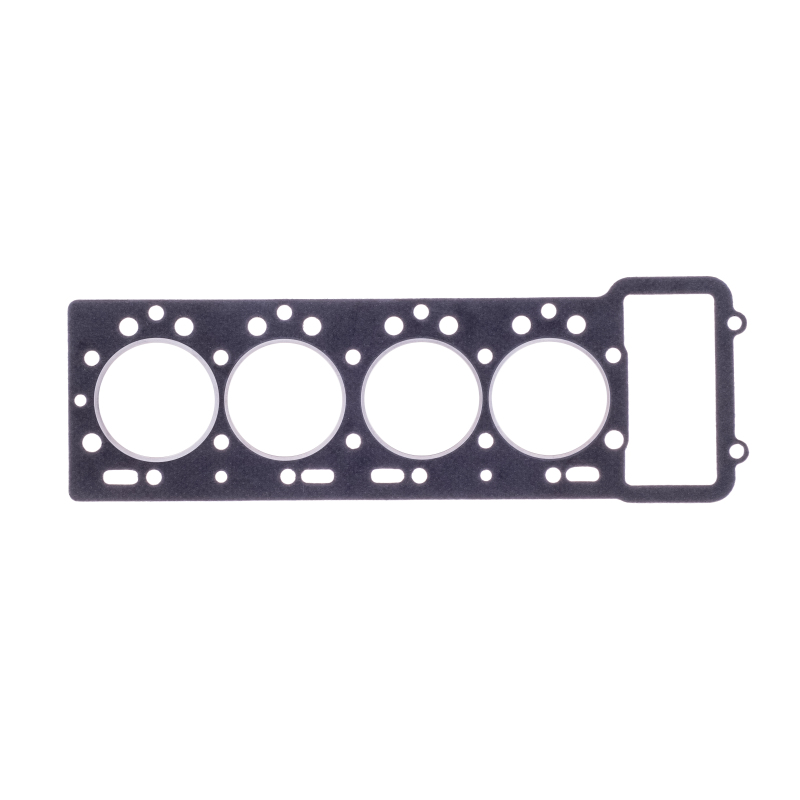

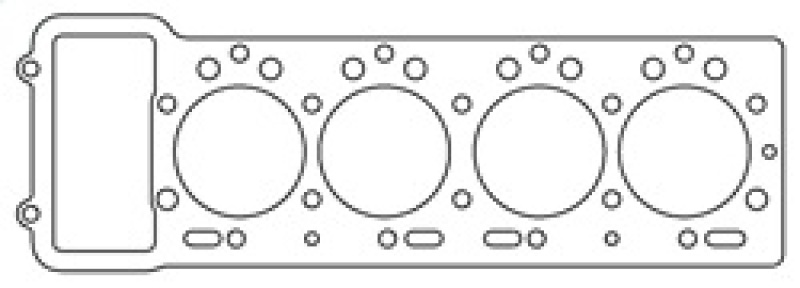

Cometic Coventry Climax 1.2/1.5L 78mm .043 inch CFM-20 Model FWB/E Head Gasket
Cometic Coventry Climax 1.2/1.5L 78mm .043 inch CFM-20 Model FWB/E Head Gasket
A$414.49
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Utilizes a steel reinforced fiber material with steel fire rings at each bore to seal off the combustion chamber. Cometic CFM is a perforated-galvanized steel core with an asbestos-free fiber material that is applied to both sides.
Product Overview
Cometic Head Gaskets are developed with the performance enthusiast in mind. With so many individual requirements for each motor Cometic offers a number of options to suit your specific motor and needs.
*MLS*
The Cometic MLS gasket is comprised of three layers of Stainless Steel. Cometic uses Stainless steel for increased strength, it’s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F.
The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks.
The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.
*CFM-20*
A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.
*COPPER*
Features and Benefits
- Asbestos-Free Fiber Material
Product Details
| Bore Diameter: | 78mm |
|---|---|
| Description: | Coventry Climax FWB/E .043" CFM Cylinder Head Gasket; 78mm Bore |
| Engine Make/Size: | Coventry Climax 1.2L/1.5L FWB/FEW |
| Engine: | Coventry Climax 1.2L & 1.5L FWB/FEW SOHC |
| Material: | CFM-20 |
| Part Number: | cgsC4139-043 |
| Position: | N/A |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | Prop_65.jpg |
| Prop 65 Yes/No: | Yes |
| Thickness: | .043in |
| Title: | Cometic Gaskets .043in. CFM-20 Cylinder Head Gasket; 78mm Gasket Bore. Each |
| WARNING CA Proposition 65 Message: | The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
Coventry Climax FWB/E
Part Type
Engine Cylinder Head Gasket
Features
- Asbestos-Free Fiber Material
- Conforms load distribution across the sealing area
- Creates less bore distortion
- No sealants or re-torque required
Specifications
- Product Attributes - Brand
- Cometic
- Product Attributes - Manufacturer's Part Number
- C4139-043
- Product Attributes - Part Type
- Head Gaskets
- Product Attributes - Product Line
- Cometic CFM-20 Head Gaskets
- Product Attributes - UPC
- 191070022501
- Product Attributes - Bore (in.)
- 3.070 in.
- Product Attributes - Bore (mm)
- 78.000mm
- Product Attributes - Gasket Material
- CFM-20
- Product Attributes - Compressed Thickness (in.)
- 0.043 in.
- Product Attributes - Compressed Volume (cc)
- 5.219cc
- Product Attributes - Lock Wire
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Conventry Climax, FWB/FWE 1.2L, FWB/FWE 1.5L engines.
Reference Information
| Brand Name/s | Cometic Gasket |
|---|---|
| StreetFX SKU | cgsC4139-043 |
| SFX Item ID | 4159539 |
| Supplier Item Code | 4159539 |
| Manufacturer SKU | C4139-043 |
| Manufacturer UPC | 191070022501 |
| Alternative References | CGT-C4139-043, 1.2/1.5L, 78mm, CFM-20 |
Brochures
Compatibility
Coventry Climax FWB/E
