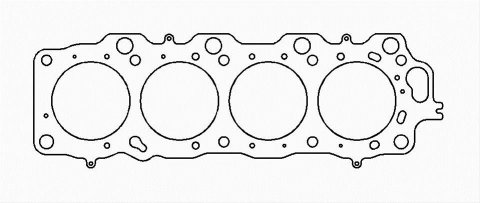

Cometic Lexus / Toyota 4.0L V8 92.5mm Bore .030 inch CFM-20 Left Side Head Gasket

SKU: CGSC4137-030

Head Gaskets

CG Head Gaskets...

Cometic Gasket

Cometic Lexus / Toyota 4.0L V8 92.5mm Bore .030 inch CFM-20 Left Side Head Gasket

SKU: CGSC4137-030

Head Gaskets

CG Head Gaskets...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Requires less clamp load

Product Overview

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

Features and Benefits

Embossed Outer Layers Coated w/Viton

Product Details

Description:	Toyota 1UZ-FE Cylinder Head Gasket
Engine Make/Size:	Honda/Acura D16A1/D16A2/D16A8/D16A9 1.6L
Part Number:	cgsC4137-030
Position:	N/A
Prop 65 (C, R or CR):	CR
Prop 65 - Short Label:	Prop_65.jpg
Prop 65 Yes/No:	Yes
Title:	Cometic Gasket Automotive Toyota 1UZ-FE .030 in MLS Cylinder Head Gasket, 92.5mm Bore, Without VVT-i, LHS
WARNING CA Proposition 65 Message:	The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Part Type

Engine Cylinder Head Gasket

Data: v4.2 - Upd: 2026-10-14 00:07:36

Features

Conforms load distribution across the sealing area
Creates less bore distortion
Embossed Outer Layers Coated w/Viton
No sealants or re-torque required

Specifications

Product Attributes - Brand: Cometic
Product Attributes - Manufacturer's Part Number: C4137-030
Product Attributes - Part Type: Head Gaskets
Product Attributes - Product Line: Cometic MLS Head Gaskets
Product Attributes - UPC: 00191070100971
Product Attributes - Bore (in.): 3.642 in.
Product Attributes - Bore (mm): 92.500mm
Product Attributes - Gasket Material: Multi-layer stainless steel
Product Attributes - Compressed Thickness (in.): 0.030 in.
Product Attributes - Compressed Volume (cc): 5.121cc
Product Attributes - Lock Wire: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Left side for Toyota 1UZ-FE 4.0L V8 engines.

Reference Information

Brand Name/s	Cometic Gasket
StreetFX SKU	cgsC4137-030
SFX Item ID	4168633
Supplier Item Code	4168633
Manufacturer SKU	C4137-030
Manufacturer UPC	N/A
Alternative References	CGT-C4137-030, 4.0L, 92.5mm, CFM-20
