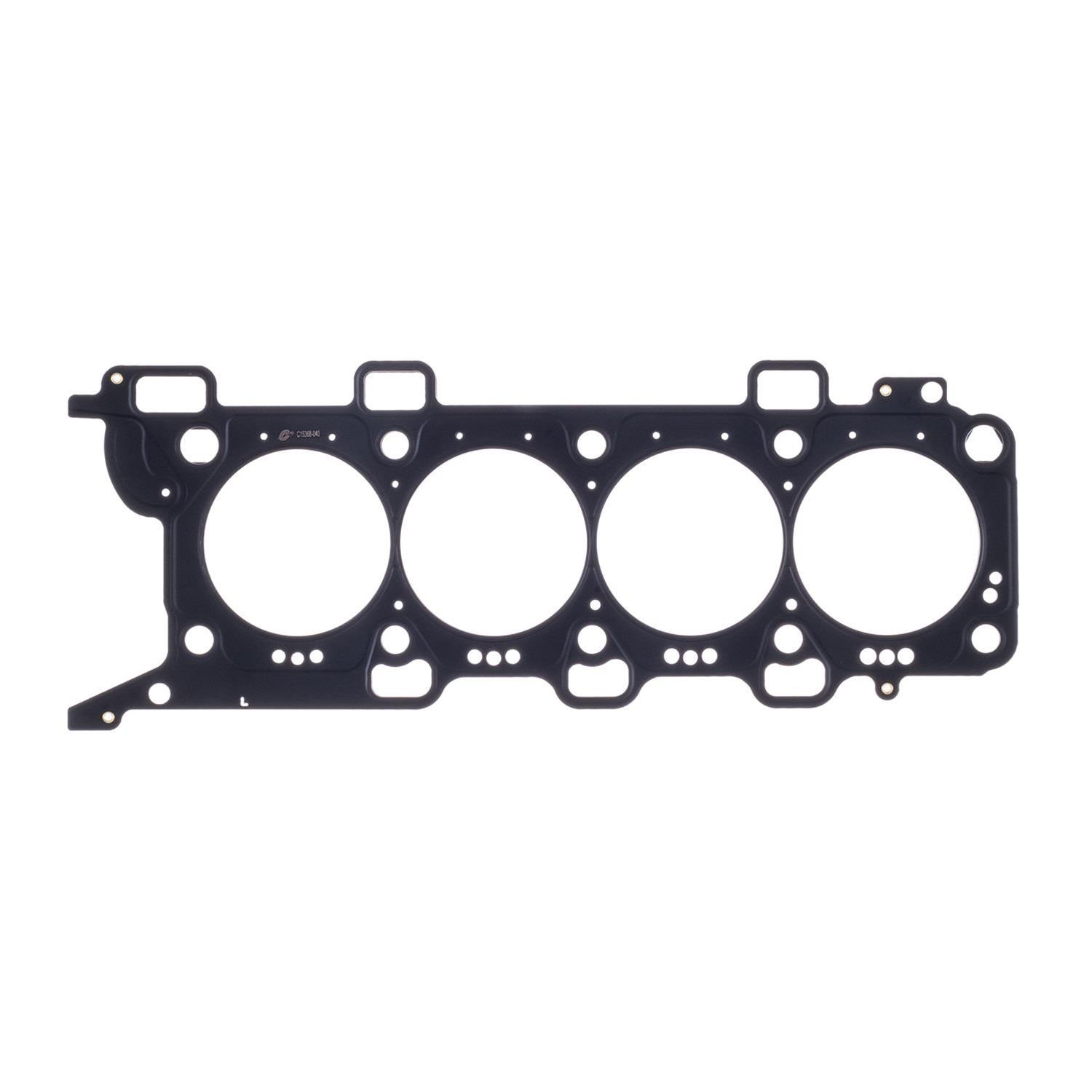

Cometic Ford 5.0L Gen-1 Coyote Modular V8 .036in MLX Cylinder Head Gasket - 94mm Bore - LHS

SKU: CGSC15368-036

Head Gaskets

CG Head Gaskets...

Cometic Ford 5.0L Gen-1 Coyote Modular V8 .036in MLX Cylinder Head Gasket - 94mm Bore - LHS
Cometic Gasket

Cometic Gasket

Cometic Ford 5.0L Gen-1 Coyote Modular V8 .036in MLX Cylinder Head Gasket - 94mm Bore - LHS

SKU: CGSC15368-036

Head Gaskets

CG Head Gaskets...

A$532.54
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

The HP shim technology increases clampload around the combustion chamber, thereby increasing the sealability of the head gasket around the open deck block.

Product Overview

The HP shim technology increases clampload around the combustion chamber, thereby increasing the sealability of the head gasket around the open deck block.


Features and Benefits

  • Embossed Outer Layers Coated w/Viton

Product Details

Description:Ford 5.0L Gen-1 Coyote Modular V8 Cylinder Head Gasket
Engine Make/Size:Honda D15B
OEM Part Number:BR3Z-6051-B
Part Number:cgsC15368-036
Position:Left
Prop 65 (C, R or CR):CR
Prop 65 - Short Label:Prop_65.jpg
Prop 65 Warning Label:Prop_65.jpg
Prop 65 Yes/No:Yes
Title:Cometic Gasket Automotive Ford 5.0L Gen-1 Coyote Modular V8 .036 in MLX Cylinder Head Gasket, 94mm Bore, LHS
WARNING CA Proposition 65 Message:The state of California has determined that certain chemicals used in the manufacture of this product have been known to cause cancer and birth defects. For more information; visit www.p65Warnings.ca.gov
WARNING CA Proposition 65:Yes

Part Type

Engine Cylinder Head Gasket

Data: v4.2 - Upd: 2026-10-14 00:05:21

Features

  • Embossed Outer Layers Coated w/Viton
  • Improved clamp load around the cylinder without increasing bore distortion

Specifications

Product Attributes - Brand
Cometic
Product Attributes - Manufacturer's Part Number
C15368-036
Product Attributes - Part Type
Head Gaskets
Product Attributes - Product Line
Cometic MLX Head Gaskets
Product Attributes - UPC
191070524036
Product Attributes - Bore (in.)
3.701 in.
Product Attributes - Bore (mm)
94.000mm
Product Attributes - Gasket Material
Multi-layer stainless steel
Product Attributes - Compressed Thickness (in.)
0.036 in.
Product Attributes - Lock Wire
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Made with four layers of material, left side orientation.

Reference Information

Brand Name/s Cometic Gasket
StreetFX SKU cgsC15368-036
SFX Item ID 4170208
Supplier Item Code 4170208
Manufacturer SKU C15368-036
Manufacturer UPC 191070524036
Alternative References CGT-C15368-036, 5.0L, Gen-1, .036in, 94mm

Brochures

Compatibility

Application Data
  • MakeFORD
    ModelF-150
    SubmodelFX2
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelFX4
    Beginning Year2011
    Ending Year2012
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelFX4
    Beginning Year2014
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelKING RANCH
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelLARIAT
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelPLATINUM
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelSTX
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelXL
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelF-150
    SubmodelXLT
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
  • MakeFORD
    ModelMUSTANG
    SubmodelGT
    Beginning Year2011
    Ending Year2014
    Engine TypeV8
    Engine FamilyFord modular V8
    Engine Size5.0L/302
    Application NotesMade with four layers of material, left side orientation.
