Comp Cams Stage 1 LST 243/254 Hydraulic Roller Master Cam Kit for Manual LS3 w/ Aftermarket Pistons
Comp Cams Stage 1 LST 243/254 Hydraulic Roller Master Cam Kit for Manual LS3 w/ Aftermarket Pistons
A$3,547.47
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Fits models with a manual transmission. Requires the use of aftermarket pistons with valve reliefs.
COMP Cams Stage 1 LST Master camshaft packages for GM LS applications take the guesswork out of choosing the right valve train upgrade package for your specific engine and desired performance. The "Low Shock Technology" behind COMP Cams LST camshaft packages features lobe profiles designed to maximize horsepower, while improving stability at higher rpm. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. By Spintron and dyno testing these new profiles with many combinations of valve train components, COMP Cams engineers have created valve train packages that are perfectly matched for maximum horsepower and dependability in all popular LS applications with varying modifications. Stage 1 LST kits commonly add 60+ hp, depending on application.

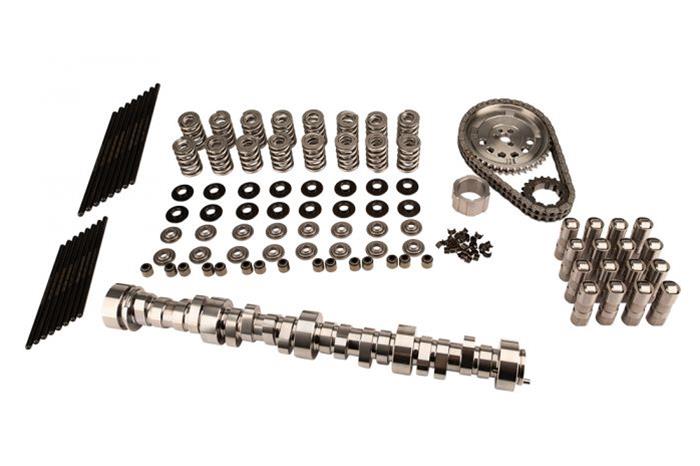

Stage 1 LST Master camshaft packages include:
* COMP Cams LST Camshaft
* Lifters
* Timing Gear Seat or Phaser Limiter (Depending on application)
* Pushrods
* Valve Springs
* Retainers
* Valve Locks
* Spring Seats
* Valve Seals
Product Overview
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Product Details
| Advertised Exhaust Duration: | 303 |
|---|---|
| Advertised Intake Duration: | 298 |
| Amazon ASIN: | B07M7KZMBM |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 3,300-7,500 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Low Shock Technology |
| Description: | Stage 1 LST Master Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Engine Family: | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift: | 254 |
| Exhaust Valve Lift: | 0.655 |
| Gaskets Included: | No |
| Grind Number: | 298LMH11 |
| Intake Duration at .050 Inch Lift: | 243 |
| Intake Valve Lift: | 0.663 |
| Kit Type: | MK-Kit |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | Yes |
| Lobe Separation: | 111 |
| Locks Included: | Yes |
| Part Number: | ccaMK54-305-11 |
| Pushrods Included: | Yes |
| Recommended Cam Install Kit: | 5621 |
| Recommended Max-Lift BSR Shaft Rocker System: | 1982-16 |
| Recommended Upgraded Stock Rocker Arms: | 1478-16 |
| Retainers Included: | Yes |
| Stage: | 1 |
| Timing Set Included: | Yes |
| Title: | Stage 1 LST Master Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons |
| Usage: | Street/Strip |
| Valve Seals Included: | Yes |
| Valve Spring Seats Included: | Yes |
| Valve Springs Included: | Yes |
Application Summary
Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: SS 14 - 16 6.2 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine
Part Type
Engine Camshaft Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- MK54-305-11
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams Stage 1 LST Master Camshaft Packages
- Product Attributes - UPC
- 00036584387169
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Basic Operating RPM Range
- 3,300-7,500
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Best average HP over wide RPM range. Requires aftermarket pistons w/ valve reliefs. Perfect for serious LS3 street and track build. 7500 RPM stability with CK and MK kits.
- Product Attributes - Intake Duration at 050 inch Lift
- 243
- Product Attributes - Exhaust Duration at 050 inch Lift
- 254
- Product Attributes - Duration at 050 inch Lift
- 243 int./254 exh.
- Product Attributes - Advertised Intake Duration
- 298
- Product Attributes - Advertised Exhaust Duration
- 303
- Product Attributes - Advertised Duration
- 298 int./303 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.633 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.655 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.633 int./0.655 exh.
- Product Attributes - Lobe Separation (degrees)
- 111
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Hydraulic roller
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.320 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Timing Chain and Gears Included
- Yes
- Product Attributes - Timing Chain Style
- Double roller
- Product Attributes - Assembly Lubricant Included
- No
- Product Attributes - Pushrods Included
- Yes
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fits models with a manual transmission. Requires the use of aftermarket pistons with valve reliefs.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaMK54-305-11 |
| SFX Item ID | 4118159 |
| Supplier Item Code | 4118159 |
| Manufacturer SKU | MK54-305-11 |
| Manufacturer UPC | 36584387169 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
Brochures
Compatibility
Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: SS 14 - 16 6.2 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine
