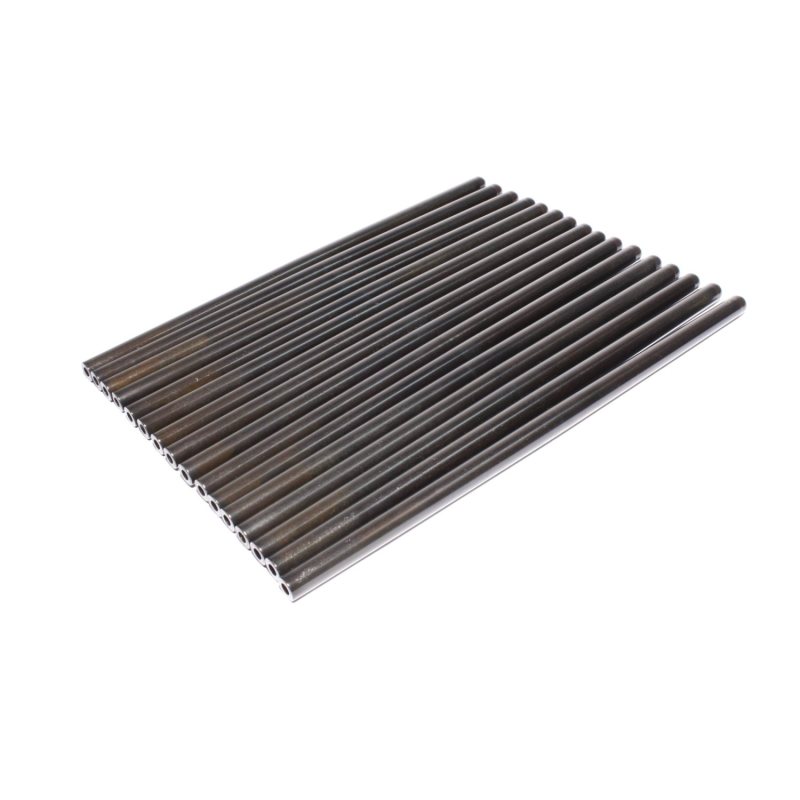

COMP Cams Pushrod Tubes7.000in 7/16 .125
COMP Cams Pushrod Tubes7.000in 7/16 .125
A$874.57
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
If you can't find the exact pushrod that you need, COMP Cams semi-finished pushrod tubes will start you on your way to the perfect fit. These heat-treated steel tubes can be matched with the ends of your choice. Then with the proper pushrod cutter (sold separately) you cut them to length and ream the tubing to press-fit your ends. Just like that, you'll have the size that you wanted. With COMP Cams semi-finished pushrod tubes, you get the correct length and end type made to order.
Product Overview
If you don’t see the exact pushrod you need in our part number listings, check out these semi-finished pushrods for the correct length and end
type you need.
You will order semi-finished pushrods in two separate pieces – Tubes and Ends.
*HOW TO ORDER SEMI-FINISHED PUSHRODS*
First, select the proper pushrod diameter.
Next, find the appropriate part # for your correct tube length and add “-16†to end of part number. This will be a quantity of 16 pushrod tubes. Select the appropriate end from the diagrams shown for the particular pushrod tube you ordered and add “-16†to part number. This will be a quantity of 16 ends. With semi-finished pushrods, you MUST HAVE the proper pushrod cutter.
*Example:* To order a 5/16" diameter pushrod that is 5.000" long with a 3/8" cup end, you would order the following part numbers:
K6805-16 (Pushrod Tubes)
3C5P-16 (Pushrod Ends)
KD516 (Cutter)
Product Details
| Ball End Diameter: | 3/8" Ball End |
|---|---|
| Description: | PUSHROD TUBES,7.000" 7/16 .125 |
| Diameter: | 7/16" |
| Part Number: | ccaK71273T-16 |
| Title: | PUSHROD TUBES,7.000" 7/16 .125 |
| Tube Length: | 6.000" - 7.000" |
| Wall Thickness: | .125" |
| Wall Type: | Hardened-Dual Taper |
Part Type
Engine Push Rod Tube
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- K71273T-16
- Product Attributes - Part Type
- Pushrods, Valvetrain
- Product Attributes - Product Line
- COMP Cams Semi-Finished Pushrod Tubes
- Product Attributes - UPC
- 036584011064
- Product Attributes - Assembled
- Yes
- Product Attributes - Compatible with Guideplates
- Yes
- Product Attributes - Pushrod Tube Diameter
- 7/16 in.
- Product Attributes - Pushrod Material
- Chromoly
- Product Attributes - Bottom Tip Style
- Ball
- Product Attributes - Intake Overall Length (in.)
- Custom
- Product Attributes - Exhaust Overall Length (in.)
- Custom
- Product Attributes - One-Piece Pushrod
- No
- Product Attributes - Oiling
- Yes
- Product Attributes - Tapered
- Yes
- Product Attributes - Tip Attachment
- Adjustable/Press fit
- Product Attributes - Bottom Tip Diameter
- 7/16 in.
- Product Attributes - Wall Thickness (in.)
- 0.125 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Quantity
- Sold as a set of 16.
- Product Attributes - Notes
- Includes one ball end; top tip sold separately. Dual taper design.
- Product Attributes - Special Attention
- This is a semi-finished pushrod and the correct pushrod cutter must be used to ensure proper fit of pushrod ends. See suggested parts for details.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaK71273T-16 |
| SFX Item ID | 4124159 |
| Supplier Item Code | 4124159 |
| Manufacturer SKU | K71273T-16 |
| Manufacturer UPC | 36584011064 |
| Alternative References | Tubes7.000in |
