COMP Cams GM 603/604 0.570in Lift 1.077/1.282 OD Beehive Hustler Valve Spring Kit
COMP Cams GM 603/604 0.570in Lift 1.077/1.282 OD Beehive Hustler Valve Spring Kit
A$683.11
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

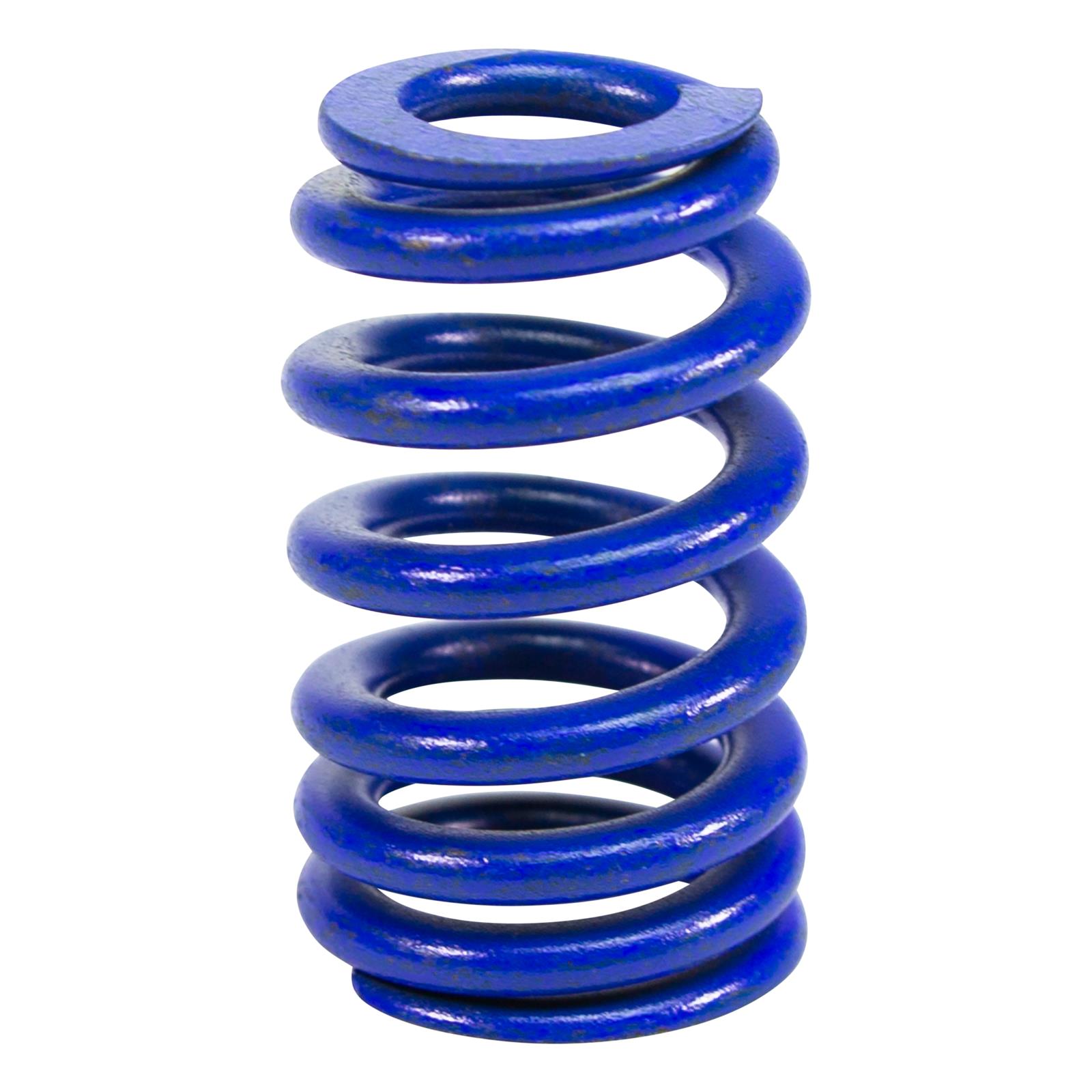

COMP Cams Hustler Valve Springs are an improved version of the popular GM LS6 "blue" valve spring. They are based on popular GM part #12499224 and #12565313 LS6 springs but with 4% higher seat and open loads for better dynamic control, as well as an extra .020" of lift capability. They are an excellent performance upgrade in GM 603/604 and CT525 LS crate Race Applications with tight rules packages.
Product Overview
Visually identical to the blue LS6 springs, Hustler Beehive Springs add 4% higher load than stock for better valve control over stock. This spring delivers an advantage in circle track racing for those willing to bend the rules.
Product Details
| Bottom Inside Diameter: | 0.86 |
|---|---|
| Bottom Outside Diameter: | 1.282 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Bind Height: | 1.181 |
| Compatible Chromemoly Steel Retainer: | 774-1 |
| Compatible Shims: | 4753 |
| Compatible Spring Seat / Seals: | 528-KIT |
| Compatible Titanium Retainer: | 722-1 |
| Compatible Tool Steel Retainer: | 1772-1 |
| Damper: | No |
| Description: | COMP Cams GM 603/604 0.570in Lift 1.077/1.282 OD Beehive Hustler Valve Spring Kit |
| Installed Height: | 1.8 |
| Number of Springs: | 1 |
| Open Load: | 304 |
| Part Number: | ccaH604-16 |
| Seat Pressure: | 92 |
| Spring Rate: | 386 |
| Spring Style: | Beehive |
| Title: | Beehive Hustler Springs for GM 604/CT525 LS Crate Engine |
| Top Inside Diameter: | 0.655 |
| Top Outside Diameter: | 1.077 |
| Valve Spring Series: | Performance Street |
Application Summary
Designed for use on GM 604 and CT525 Crate Engines. Also fits all GM LS engines including truck engines, excluding LS7.
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- H604-16
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Hustler Valve Springs
- Product Attributes - UPC
- 36584409465
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Maximum Valve Lift (in.)
- 0.570 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.077 in./1.282 in.
- Product Attributes - Coil Bind Height (in.)
- 1.181 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs./in.)
- 386 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.655 in./0.860 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity

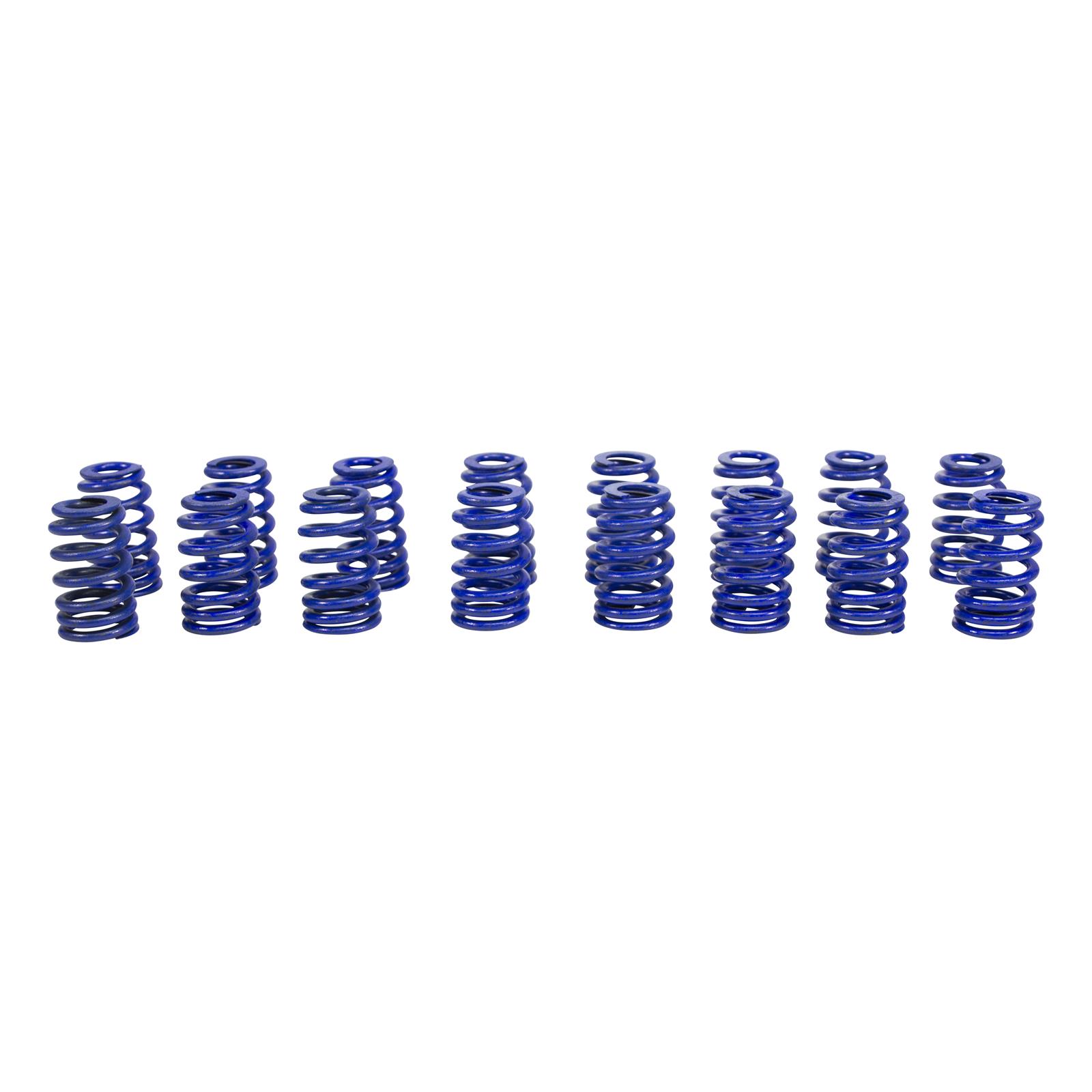

- Sold as a set of 16.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaH604-16 |
| SFX Item ID | 4124907 |
| Supplier Item Code | 4124907 |
| Manufacturer SKU | H604-16 |
| Manufacturer UPC | 36584409465 |
| Alternative References | COMH604-16, 0.570in |
Brochures
Compatibility
Designed for use on GM 604 and CT525 Crate Engines. Also fits all GM LS engines including truck engines, excluding LS7.
