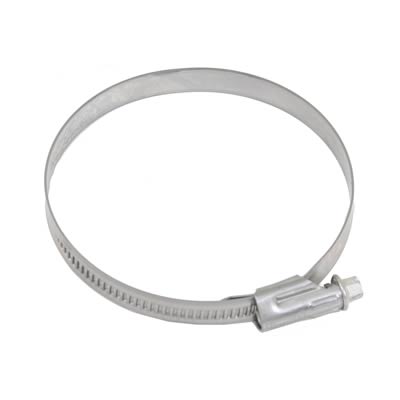

COMP Cams Gator Brand 80-100mm Hose Clamp
COMP Cams Gator Brand 80-100mm Hose Clamp
A$52.07
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Gator Brand Clamps are produced using a stainless Steel continuous band with extruded, asymmetrical threads for reliable performance. The edges of the band are rolled to prevent any sharp edges from damaging the hose. This is especially important on silicone hoses that have a soft, vulnerable cover. An asymmetrical (offset) Gear box is employed to reduce clamp twist when tightening. The Gear box housing is designed to remain stationary as the clamp tightened to prevent movement over those hose. The combination of the asymmetrical Gear box and the extruded threads provides an even clamping force over the surface of the hose that ensures proper Sealing with minimal torque. Gator Brand Clamps hold up under 3.7ft./lbs. (5mm) torque
Product Overview
Gator Brand Hose Clamps are produced using a continuous stainless steel band with extruded, asymmetrical threads for reliable performance. The edges of the band are rolled to prevent any sharp edges from damaging the hose. This is especially important on silicone hoses that have a soft, vulnerable cover.
An asymmetrical (offset) gear box is employed to reduce clamp twist when tightening. The gear box housing is designed to remain stationary as the clamp is tightened to prevent movement over the hose. The combination of the asymmetrical gear box and the extruded threads provides an even clamping force over the surface of the hose that ensures proper sealing with minimal torque. Gator Brand Clamps hold up under 3.7 ft./lbs. (5nm) torque; conventional clamps strip and fail at this torque.
Gator Brand Clamps cover a size range of 5/16" (8mm) to 5.000" (120mm) and can be installed using a flat blade screwdriver, metric socket wrench or the Gator Brand Flexible Clamp Tool for maximum torque potential.
* Constructed of continuous stainless steel band with extruded, asymmetrical threads
* Asymmetrical (offset) gear box employed to reduce clamp twist when tightening
* Combination of asymmetrical gear box and extruded threads provides even clamping force over surface of hose
* Hold up under 3.7 ft./lbs. (5nm) torque
* Cover size range of 5/16" (8mm) to 5.000" (120mm)
Product Details
| Amazon ASIN: | B000P5IAR0 |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Gator Brand 80-100mm Hose Clamp |
| Part Number: | ccaG31280 |
| SAE Comparable Size: | 52-56 |
| Size Range: | 3.125"-4.000" (80-100mm) |
| Title: | Gator Brand 80-100mm Hose Clamp |
Part Type
Hose Clamp
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- G31280
- Product Attributes - Part Type
- Hose Clamps
- Product Attributes - Product Line
- COMP Cams Gator Brand Clamps
- Product Attributes - UPC
- 036584014867
- Product Attributes - Hose Clamp Style
- Worm gear
- Product Attributes - Smallest Recommended Hose Diameter O.D.
- 3.125 in.
- Product Attributes - Largest Recommended Hose Diameter O.D.
- 4.000 in.
- Product Attributes - Hose Clamp Material
- Stainless steel
- Product Attributes - Hose Clamp Color
- Natural
- Product Attributes - Hose Clamp Cover Included
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaG31280 |
| SFX Item ID | 4118092 |
| Supplier Item Code | 4118092 |
| Manufacturer SKU | G31280 |
| Manufacturer UPC | 36584014867 |
| Alternative References | 80-100mm |
