COMP Cams Cam & Lifter Kit FW XE274H-10
COMP Cams Cam & Lifter Kit FW XE274H-10
A$843.41
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

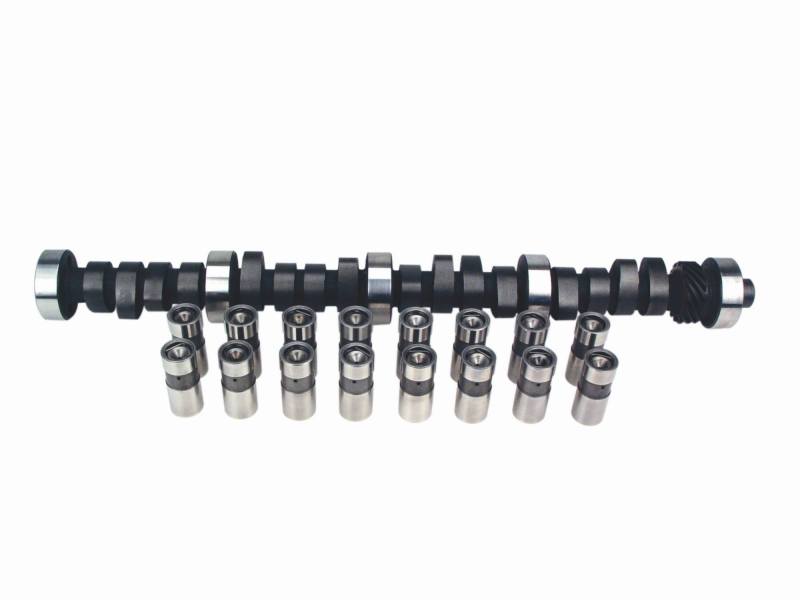

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Product Overview
COMP Cams offers complete component-matched valve train kits that deliver unbeatable performance, durability and ease of installation.
All cam kits are fully tested and manufactured to the strictest standards. Each kit’s components were specifically chosen as the best performance match for that particular camshaft so that you can reap the benefits of a perfectly matched “Power Engineered System.â€
*CL-Kit Cam & Lifter Kit Includes*
* Camshaft
* Lifters
* Assembly Lube
* Decals
* Instructions
Product Details
| Advertised Exhaust Duration: | 286 |
|---|---|
| Advertised Intake Duration: | 274 |
| Amazon ASIN: | B001R9FKQC |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 1,800-6,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 230/236 Hydraulic Flat Cam and Lifter Kit for Ford 351W |
| Engine Family: | Ford 351W 8 Cylinder (1969-1996) |
| Exhaust Duration @ .050 in.: | 236 |
| Exhaust Duration at .050 inch Lift: | 236 |
| Exhaust Duration: | 286 |
| Exhaust Valve Lift(in): | 0.523 |
| Exhaust Valve Lift: | 0.523 |
| Gaskets Included: | No |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration at .050 Inch Lift: | 230 |
| Intake Duration: | 274 |
| Intake Valve Lift(in): | 0.519 |
| Intake Valve Lift: | 0.519 |
| Kit Type: | CL-Kit - Cam and Lifter Kit |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | Yes |
| Lobe Separation: | 110 |
| Locks Included: | No |
| Part Number: | ccaCL35-246-3 |
| RPM Range: | 1000-7000 |
| Retainers Included: | No |
| Timing Chain and Gears Included: | No |
| Title: | Xtreme Energy 230/236 Hydraulic Flat Cam and Lifter Kit for Ford 351W |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
| Valve Stem Seals Included: | No |
Application Summary
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
Part Type
Engine Camshaft and Lifter Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- CL35-246-3
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Cam and Lifter Kits
- Product Attributes - UPC
- 036584031321
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Basic Operating RPM Range
- 1,800-6,000
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Intake Duration at 050 inch Lift
- 230
- Product Attributes - Exhaust Duration at 050 inch Lift
- 236
- Product Attributes - Duration at 050 inch Lift
- 230 int./236 exh.
- Product Attributes - Advertised Intake Duration
- 274
- Product Attributes - Advertised Exhaust Duration
- 286
- Product Attributes - Advertised Duration
- 274 int./286 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.519 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.523 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.519 int./0.523 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Grind Number
- XE274H
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Hydraulic flat tappet
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- Yes
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaCL35-246-3 |
| SFX Item ID | 4123328 |
| Supplier Item Code | 4123328 |
| Manufacturer SKU | CL35-246-3 |
| Manufacturer UPC | 36584031321 |
| Alternative References | 351w, f100, f150, XE274H-10 |
Brochures
Compatibility
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
