COMP Cams Cam & Lifter Kit FF XR294HR-1
COMP Cams Cam & Lifter Kit FF XR294HR-1
A$2,800.25
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

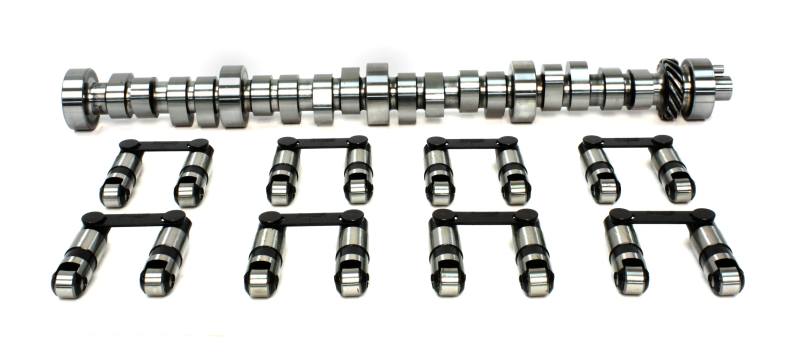

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Product Overview
COMP Cams offers complete component-matched valve train kits that deliver unbeatable performance, durability and ease of installation.
All cam kits are fully tested and manufactured to the strictest standards. Each kit’s components were specifically chosen as the best performance match for that particular camshaft so that you can reap the benefits of a perfectly matched “Power Engineered System.â€
*CL-Kit Cam & Lifter Kit Includes*
* Camshaft
* Lifters
* Assembly Lube
* Decals
* Instructions
Product Details
| Advertised Exhaust Duration: | 300 |
|---|---|
| Advertised Intake Duration: | 294 |
| Amazon ASIN: | B0066STMQ8 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,800-6,100 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 242/248 Hydraulic Roller Cam and Lifter Kit for Ford 429,460 |
| Engine Family: | Ford 429, 460 c.i. 8 Cylinder (1968-1995) |
| Exhaust Duration @ .050 in.: | 248 |
| Exhaust Duration at .050 inch Lift: | 248 |
| Exhaust Duration: | 300 |
| Exhaust Valve Lift(in): | 0.572 |
| Exhaust Valve Lift: | 0.572 |
| Gaskets Included: | No |
| Intake Duration @ .050 in.: | 242 |
| Intake Duration at .050 Inch Lift: | 242 |
| Intake Duration: | 294 |
| Intake Valve Lift(in): | 0.553 |
| Intake Valve Lift: | 0.553 |
| K-Kit Upgrade: | K34-443-9 |
| Kit Type: | CL-Kit - Cam and Lifter Kit |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | Yes |
| Lobe Separation: | 110 |
| Locks Included: | No |
| Part Number: | ccaCL34-443-9 |
| RPM Range: | 2800-6100 |
| Retainers Included: | No |
| Timing Chain and Gears Included: | No |
| Title: | Xtreme Energy 242/248 Hydraulic Roller Cam and Lifter Kit for Ford 429,460 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
| Valve Stem Seals Included: | No |
Application Summary
Fits Ford Big Block/385 Series 429 and 460
Part Type
Engine Camshaft and Lifter Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- CL34-443-9
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Retrofit Cam and Lifter Kits
- Product Attributes - UPC
- 036584238898
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Basic Operating RPM Range
- 2,800-6,100
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Street/strip applications, 10:1+ compression, 3000+ stall, intake headers, and gearing.
- Product Attributes - Intake Duration at 050 inch Lift
- 242
- Product Attributes - Exhaust Duration at 050 inch Lift
- 248
- Product Attributes - Duration at 050 inch Lift
- 242 int./248 exh.
- Product Attributes - Advertised Intake Duration
- 294
- Product Attributes - Advertised Exhaust Duration
- 300
- Product Attributes - Advertised Duration
- 294 int./300 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.553 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.572 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.553 int./0.572 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Grind Number
- XR294HR
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Lifters Included
- Yes
- Product Attributes - Lifter Style
- Hydraulic roller
- Product Attributes - Valve Springs Included
- No
- Product Attributes - Retainers Included
- No
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- Yes
- Product Attributes - Pushrods Included
- No
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaCL34-443-9 |
| SFX Item ID | 4123303 |
| Supplier Item Code | 4123303 |
| Manufacturer SKU | CL34-443-9 |
| Manufacturer UPC | 36584238898 |
| Alternative References | f100;, f150;, f250;, e150;, e250, XR294HR-1 |
Brochures
Compatibility
Fits Ford Big Block/385 Series 429 and 460
