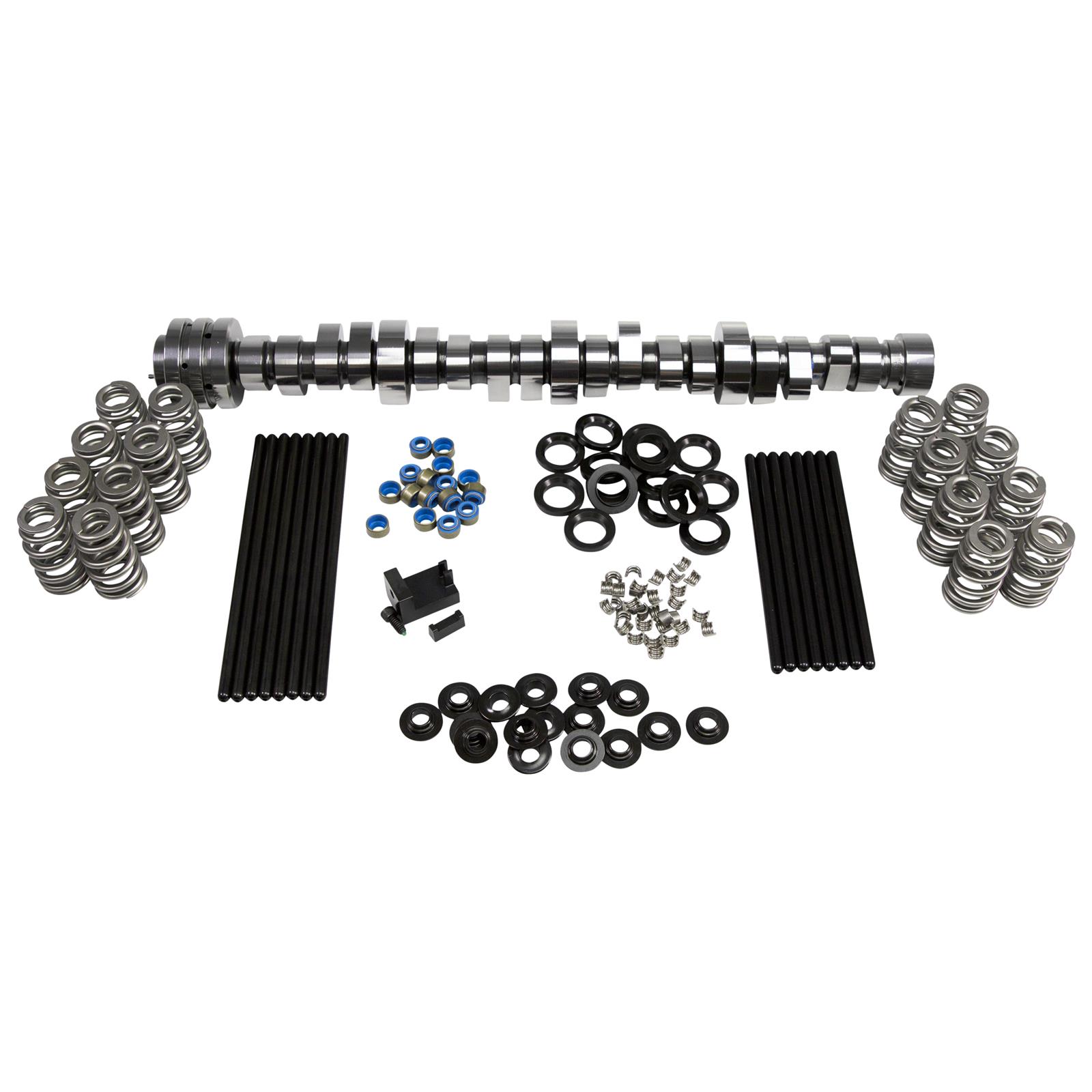

COMP Cams Turbo Stage 1 HRT 229/237 Hydraulic Roller Cam Kit 2009+ Dodge 5.7/6.4 HEMI w/ VVT
COMP Cams Turbo Stage 1 HRT 229/237 Hydraulic Roller Cam Kit 2009+ Dodge 5.7/6.4 HEMI w/ VVT
A$3,052.16
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque increases available for turbo and supercharged engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. These new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads.Organized into stages, these new options range from mild street up to heavily modified race-oriented builds. All HRT Turbo & Supercharger Camshafts require a COMP Cams DOD Delete Kit and upgraded valve springs. Depending on application, 5.7L-6.4L w/ VVT 2009+ engines also require either a COMP Cams phaser limiter or lock kit.
Product Overview
The HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque increases available for turbo and supercharged engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. These new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads.Organized into stages, these new options range from mild street up to heavily modified race-oriented builds. All HRT Turbo & Supercharger Camshafts require a COMP Cams DOD Delete Kit and upgraded valve springs. Depending on application, 5.7L-6.4L w/ VVT 2009+ engines also require either a COMP Cams phaser limiter or lock kit.
Product Details
| Advertised Exhaust Duration: | 287 |
|---|---|
| Advertised Intake Duration: | 279 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-6,600 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | OEM |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | HRT |
| Description: | COMP Cams Turbo Stage 1 HRT 229/237 Hydraulic Roller Cam Kit 2009+ Dodge 5.7/6.4 HEMI w/ VVT |
| Engine Family: | Hemi 5.7-6.4L, 2009+ |
| Estimated Horsepower Gain with Kit: | 158 |
| Exhaust Duration at .050 inch Lift: | 229 |
| Exhaust Valve Lift: | 0.594 |
| Gaskets Included: | No |
| Grind Number: | HRT Turbo Stage 1 |
| Intake Duration at .050 Inch Lift: | 221 |
| Intake Valve Lift: | 0.594 |
| Lifter Style: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 115 |
| Locks Included: | Yes |
| Part Number: | ccaCK201-330-17 |
| Pushrods Included: | Yes |
| Recommended Phaser Limiter/Lock Out: | Limiter Required (# 5760 Not Included) |
| Recommended Upgraded Stock Rocker Arms: | N/A |
| Recommended Valve Springs: | 26918-16 |
| Retainers Included: | Yes |
| Stage: | 1 |
| Timing Set Included: | No |
| Title: | HRT Turbo |
| Usage: | Street Strip |
| Valve Seals Included: | Yes |
| Valve Spring Seats Included: | Yes |
| Valve Springs Included: | Yes |
Application Summary
Dodge 5.7/6.4L HEMI Engines w/ VVT
Part Type
Engine Camshaft Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- CK201-330-17
- Product Attributes - Part Type
- Camshaft Kits
- Product Attributes - Product Line
- COMP Cams HRT Max Power Camshaft Kits
- Product Attributes - UPC
- 36584411406
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Basic Operating RPM Range
- 1,800-6,600
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Intake Duration at 050 inch Lift
- 221
- Product Attributes - Exhaust Duration at 050 inch Lift
- 229
- Product Attributes - Duration at 050 inch Lift
- 221 int./229 exh.
- Product Attributes - Advertised Intake Duration
- 279
- Product Attributes - Advertised Exhaust Duration
- 287
- Product Attributes - Advertised Duration
- 279 int./287 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.594 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.594 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.594 int./0.594 exh.
- Product Attributes - Lobe Separation (degrees)
- 115
- Product Attributes - Grind Number
- HRT-S1T
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Lifters Included
- No
- Product Attributes - Valve Springs Included
- Yes
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.075 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Locks Included
- Yes
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Timing Chain and Gears Included
- No
- Product Attributes - Assembly Lubricant Included
- Yes
- Product Attributes - Pushrods Included
- Yes
- Product Attributes - Intake Overall Length (in.)
- 6.800 in.
- Product Attributes - Exhaust Overall Length (in.)
- 8.100 in.
- Product Attributes - Rocker Arms Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- Requires eliminating the MDS cylinder deactivation system and a camshaft phaser limiter. For use on models with VVT.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | ccaCK201-330-17 |
| SFX Item ID | 4118185 |
| Supplier Item Code | 4118185 |
| Manufacturer SKU | CK201-330-17 |
| Manufacturer UPC | 36584411406 |
Brochures
Compatibility
Dodge 5.7/6.4L HEMI Engines w/ VVT
