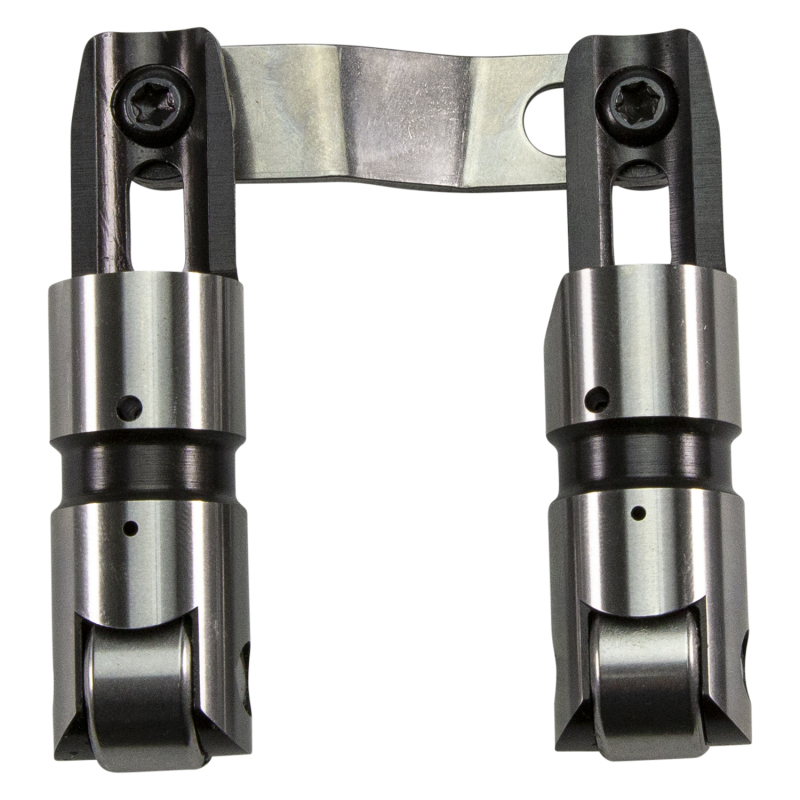

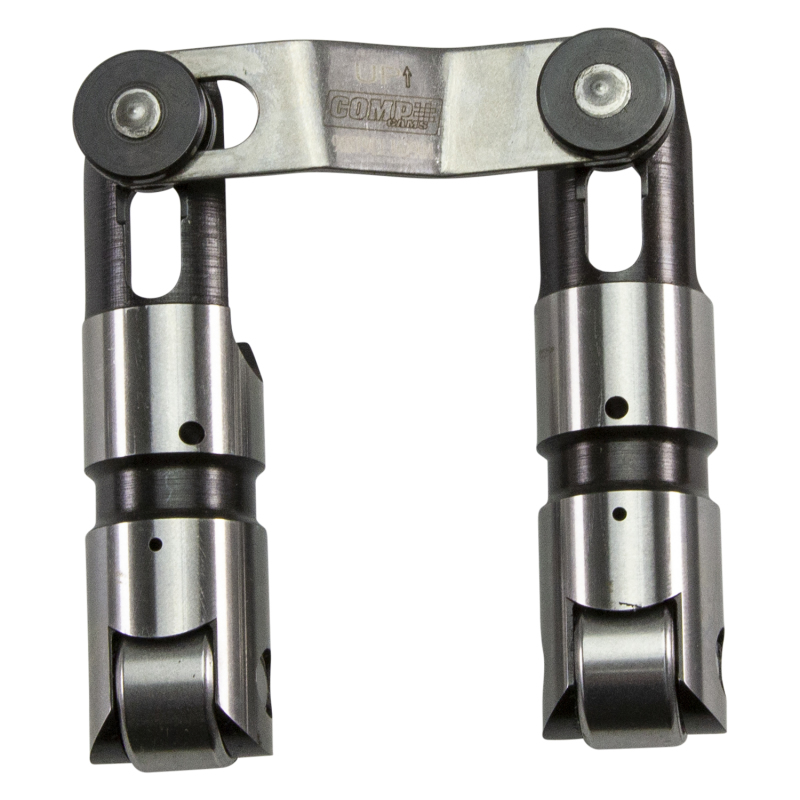

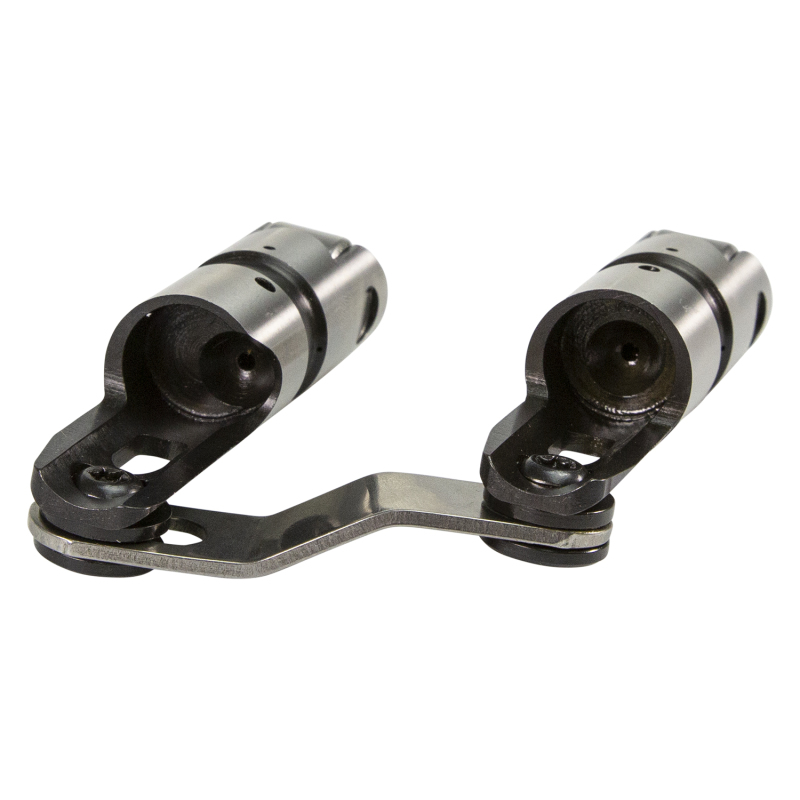

COMP Cams Roller Lifters CB .160in Offset Needle Bearing
COMP Cams Roller Lifters CB .160in Offset Needle Bearing
A$1,994.13
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Sportsman Lifters from COMP Cams are designed to be a premium and lighter weight upgrade over Endure-X Lifters and a value alternative to the Elite Race option. Sportsman Lifters are offered in two configurations: a standard/traditional needle bearing axle/wheel design or an optional bronze bushing axle/wheel setup. And for Chevrolets, there are also left or right offset pushrod seat options. Each design features two pressurized EDM oil feeds to the axle, along with an edge orifice feed to the wheel. This design delivers a more reliable oil feed than most other options on the market. Sportsman Lifters also feature a shallower oil band than competitors’ versions for increased strength and rigidity, while internal machining helps to reduce weight. The body design utilizes a skirted wheel that strengthens the lifter ears and also provides more contact area with the lifter bore for further lifter stability. In addition, staked axles eliminate clips and provide robust axle retention. This permanent axle retention feature increases the stiffness of the lifter ears and helps prevent the ears from spreading. Sportsman Lifters are built from 8620 premium steel for increased strength and wear resistance and feature a captured link bar design. They utilize a tapered and slotted link bar tower for reduced weight and improved aesthetics. The lifters also feature a tall body to enable use in both standard and .300" tall lifter bores – the result is increased strength and less lifter bore wear.
Product Overview
Sportsman Lifters from COMP Cams are designed to be a premium and lighter weight upgrade over Endure-X Lifters and a value alternative to the Elite Race option. Sportsman Lifters are offered in two configurations: a standard/traditional needle bearing axle/wheel design or an optional bronze bushing axle/wheel setup. And for Chevrolets, there are also left or right offset pushrod seat options. Each design features two pressurized EDM oil feeds to the axle, along with an edge orifice feed to the wheel. This design delivers a more reliable oil feed than most other options on the market. Sportsman Lifters also feature a shallower oil band than competitors’ versions for increased strength and rigidity, while internal machining helps to reduce weight. The body design utilizes a skirted wheel that strengthens the lifter ears and also provides more contact area with the lifter bore for further lifter stability. In addition, staked axles eliminate clips and provide robust axle retention. This permanent axle retention feature increases the stiffness of the lifter ears and helps prevent the ears from spreading. Sportsman Lifters are built from 8620 premium steel for increased strength and wear resistance and feature a captured link bar design. They utilize a tapered and slotted link bar tower for reduced weight and improved aesthetics. The lifters also feature a tall body to enable use in both standard and .300" tall lifter bores – the result is increased strength and less lifter bore wear.
Product Details
| Amazon ASIN: | B01I4ZXCBG |
|---|---|
| Bushing or Needle Bearing: | Needle Bearing |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Sportsman Solid Roller Lifter Set w/ Bearing for Chevrolet Big Block |
| Diameter: | 0.842 |
| Engine Family: | Chevrolet Big Block 396-454 |
| Lifter Diameter: | 0.842 |
| Lifter Series: | Sportsman |
| Lifter Type: | Solid Roller |
| Part Number: | cca96996-16 |
| Pushrod Seat Location: | 4 Pairs Centered & .160" Left, 4 Pairs Centered & .160" Right |
| Seat Height: | 1.88 |
| Title: | Sportsman Solid Roller Lifter Set w/ Bearing for Chevrolet Big Block |
| Weight: | 121 |
| Wheel Diameter: | 0.75 |
Part Type
Engine Valve Lifter Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 96996-16
- Product Attributes - Part Type
- Lifters
- Product Attributes - Product Line
- COMP Cams Sportsman Solid Roller Lifters
- Product Attributes - UPC
- 036584213123
- Product Attributes - Lifter Style
- Mechanical roller
- Product Attributes - Lifter Link Bars Included
- Yes
- Product Attributes - Lifter Outside Diameter (in.)
- 0.842 in.
- Product Attributes - Lifter Offset
- 0.160 in. intake
- Product Attributes - Link Bar Type
- Vertical
- Product Attributes - Lifter Seat Height (in.)
- 1.880 in.

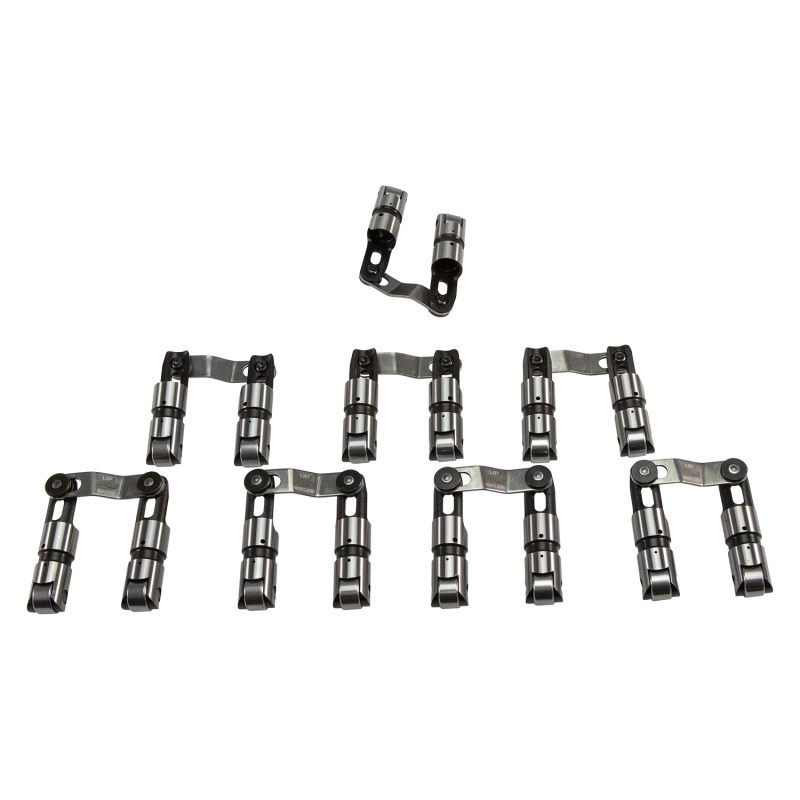

- Product Attributes - Quantity
- Sold as a set of 16.
- Product Attributes - Notes
- Needle bearing axle design.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca96996-16 |
| SFX Item ID | 4117970 |
| Supplier Item Code | 4117970 |
| Manufacturer SKU | 96996-16 |
| Manufacturer UPC | 36584213123 |
| Alternative References | c10, s10, CPC96996-16, .160in |
