COMP Cams Steel Retainers For Beehive S
COMP Cams Steel Retainers For Beehive S
A$137.44
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams Steel Retainers are the perfect solution to this problem. COMP engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/Cam software. All COMP retainers use only high-grade SAE 4140 chromemoly Steel with no lead,
Product Overview

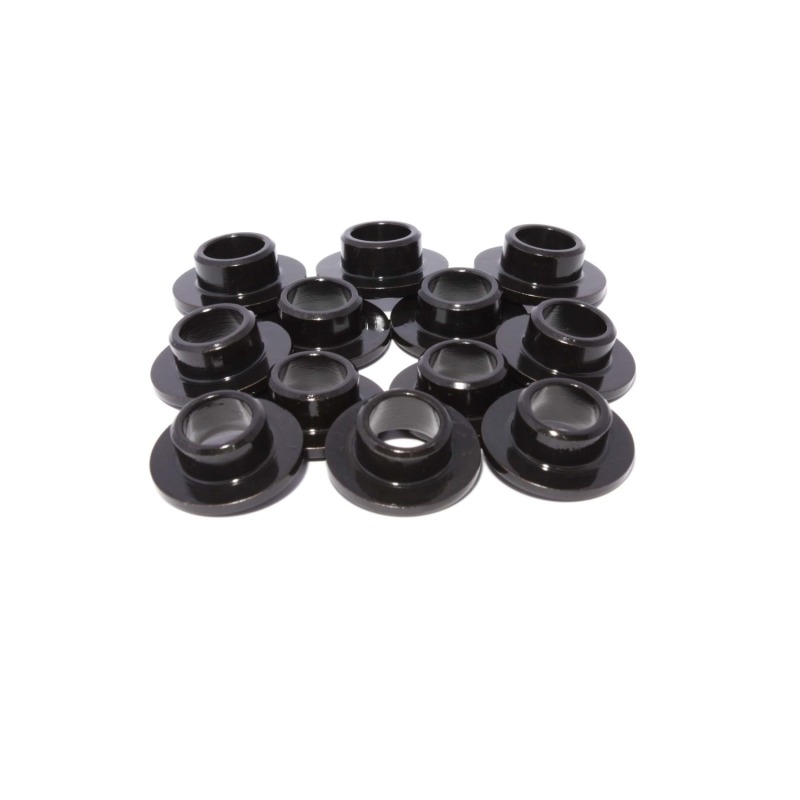

Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams steel retainers are precision machined from 4140 chromemoly steel and finished in black oxide. These precision retainers are specifically designed for positive location when combined with COMP Cams high-quality valve springs. For superior strength and ultimate stability, both 7° and 10° retainers and valve locks are available. Refer to the spring application chart on pages 293-303 for correct retainer part numbers for each COMP Cams valve spring.
Product Details
| Angle: | 10° |
|---|---|
| Description: | 10 Degree Steel Retainers Set of 12 for 26120 Beehive Springs |
| Diameter 1: | 1.050" |
| Diameter 2: | .640" |
| Diameter 3: | N/A |
| Diameter 4: | N/A |
| Part Number: | cca795-12 |
| Spring Diameter: | 1.300" |
| Stem Size: | All |
| Title: | STEEL RETAINERS, FOR BEEHIVE S |
Part Type
Engine Valve Spring Retainer Set
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 795-12
- Product Attributes - Part Type
- Valve Spring Retainers
- Product Attributes - Product Line
- COMP Cams Steel Valve Spring Retainers
- Product Attributes - UPC
- 036584129158
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.096 in.
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Lock Style
- 10 degree
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Retainer Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.640 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Quantity
- Sold as a set of 12.
- Product Attributes - Notes
- Designed for use with CCA-26120 Beehive springs.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca795-12 |
| SFX Item ID | 4121803 |
| Supplier Item Code | 4121803 |
| Manufacturer SKU | 795-12 |
| Manufacturer UPC | 36584129158 |
