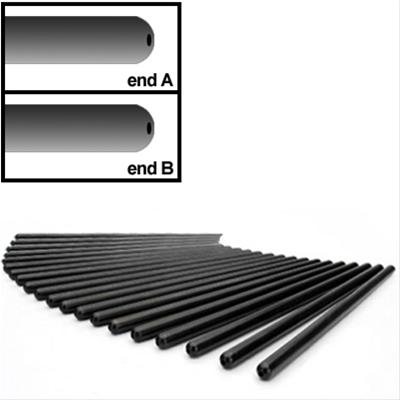

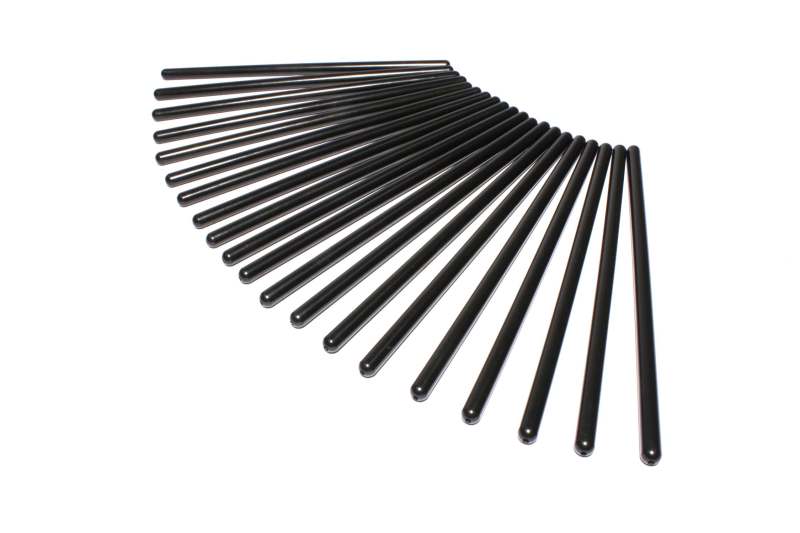

COMP Cams Pushrod Set CS 5/16 + .100 Lo
COMP Cams Pushrod Set CS 5/16 + .100 Lo
A$422.95
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Magnum Pushrods COMP Cams Magnum Pushrods are the perfect complement to your Hot Street, Bracket, Oval Track, or any other high performance engine. Magnum Pushrods are one-piece .080" wall chromemoly Steel. These pushrods are an affordable alternative for engines needing a Pushrod to stand up to higher spring pressures and the associated stresses of a high performance engine. All Magnum Pushrods are Heat Treated to be compatible with guide plates. Length 7.900
Product Overview
*Magnum Pushrods*
The Magnum 5/16" and 3/8" Pushrods offer an affordable solution for your .080" wall chromemoly pushrod needs. Designed to withstand the stresses of a high performance engine, these pushrods are heat-treated for extended durability and may be ordered as single pieces or in sets of 16. Multiple end types are available to fit virtually any application.
* Durable, one-piece .080" wall chromemoly steel tubing
* Heat-treated for durability & guide plate compatibility
* Black oxide finished with laser-etched part number
* Ideal for street performance and mild race applications
Product Details
| Description: | Magnum 7.9" Long, .08" Wall, 5/16" Diameter Pushrod Set 20 |
|---|---|
| Diameter: | 5/16" |
| Length: | 7.900" |
| Part Number: | cca7693-20 |
| Title: | Magnum 7.9" Long, .08" Wall, 5/16" Diameter Pushrod Set 20 |
Part Type
Engine Push Rod Set
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 7693-20
- Product Attributes - Part Type
- Pushrods, Valvetrain
- Product Attributes - Product Line
- COMP Cams Magnum Pushrods
- Product Attributes - UPC
- 036584130413
- Product Attributes - Assembled
- Yes
- Product Attributes - Compatible with Guideplates
- Yes
- Product Attributes - Pushrod Tube Diameter
- 5/16 in.
- Product Attributes - Pushrod Material
- Chromoly
- Product Attributes - Top Tip Style
- Ball
- Product Attributes - Bottom Tip Style
- Ball
- Product Attributes - Intake Overall Length (in.)
- 7.900 in.
- Product Attributes - Exhaust Overall Length (in.)
- 7.900 in.
- Product Attributes - One-Piece Pushrod
- Yes
- Product Attributes - Oiling
- Yes
- Product Attributes - Tapered
- No
- Product Attributes - Tip Attachment
- Formed
- Product Attributes - Top Tip Diameter
- 5/16 in.
- Product Attributes - Bottom Tip Diameter
- 5/16 in.
- Product Attributes - Wall Thickness (in.)
- 0.080 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Quantity
- Sold as a set of 20.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca7693-20 |
| SFX Item ID | 4121409 |
| Supplier Item Code | 4121409 |
| Manufacturer SKU | 7693-20 |
| Manufacturer UPC | 36584130413 |
