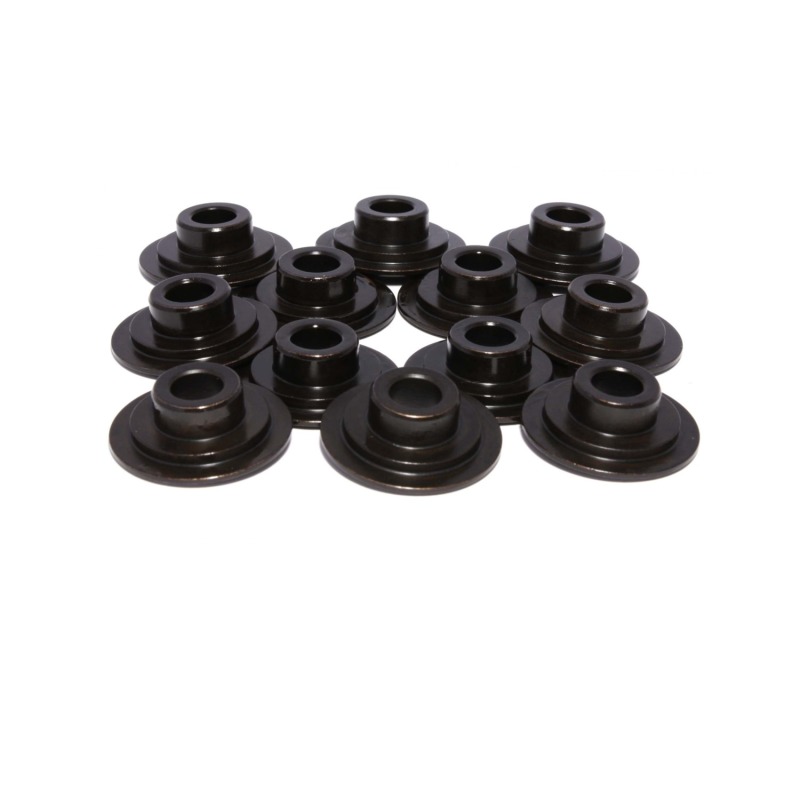

COMP Cams Steel Retainers 1.550in
COMP Cams Steel Retainers 1.550in
A$161.19
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams Steel Retainers are the perfect solution to this problem. COMP engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/Cam software. All COMP retainers use only high-grade SAE 4140 chromemoly Steel with no lead,
Product Overview
Valve springs with larger diameters require retainers to handle the higher pressures developed by the springs. COMP Cams steel retainers are precision machined from 4140 chromemoly steel and finished in black oxide. These precision retainers are specifically designed for positive location when combined with COMP Cams high-quality valve springs. For superior strength and ultimate stability, both 7° and 10° retainers and valve locks are available. Refer to the spring application chart on pages 293-303 for correct retainer part numbers for each COMP Cams valve spring.
Product Details
| Angle: | 10° |
|---|---|
| Description: | 10 Degree Superlock Steel Retainer Set of 12 for 1.500"-1.550" OD Valve Spring |
| Diameter 1: | 1.437" |
| Diameter 2: | 1.100" |
| Diameter 3: | .800" |
| Diameter 4: | N/A |
| Part Number: | cca741-12 |
| Spring Diameter: | 1.500"-1.550" |
| Stem Size: | All |
| Title: | STEEL RETAINERS, 1.550" |
Part Type
Engine Valve Spring Retainer Set
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 741-12
- Product Attributes - Part Type
- Valve Spring Retainers
- Product Attributes - Product Line
- COMP Cams Steel Valve Spring Retainers
- Product Attributes - UPC
- 036584200079
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.550 in.
- Product Attributes - Retainer Material
- Steel
- Product Attributes - Lock Style
- 10 degree
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Retainer Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Outside Diameter of Middle Spring (in.)
- 1.115 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.690 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Quantity
- Sold as a set of 12.
- Product Attributes - Notes
- Will work with single or dual springs.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca741-12 |
| SFX Item ID | 4121234 |
| Supplier Item Code | 4121234 |
| Manufacturer SKU | 741-12 |
| Manufacturer UPC | 36584200079 |
| Alternative References | 1.550in |
